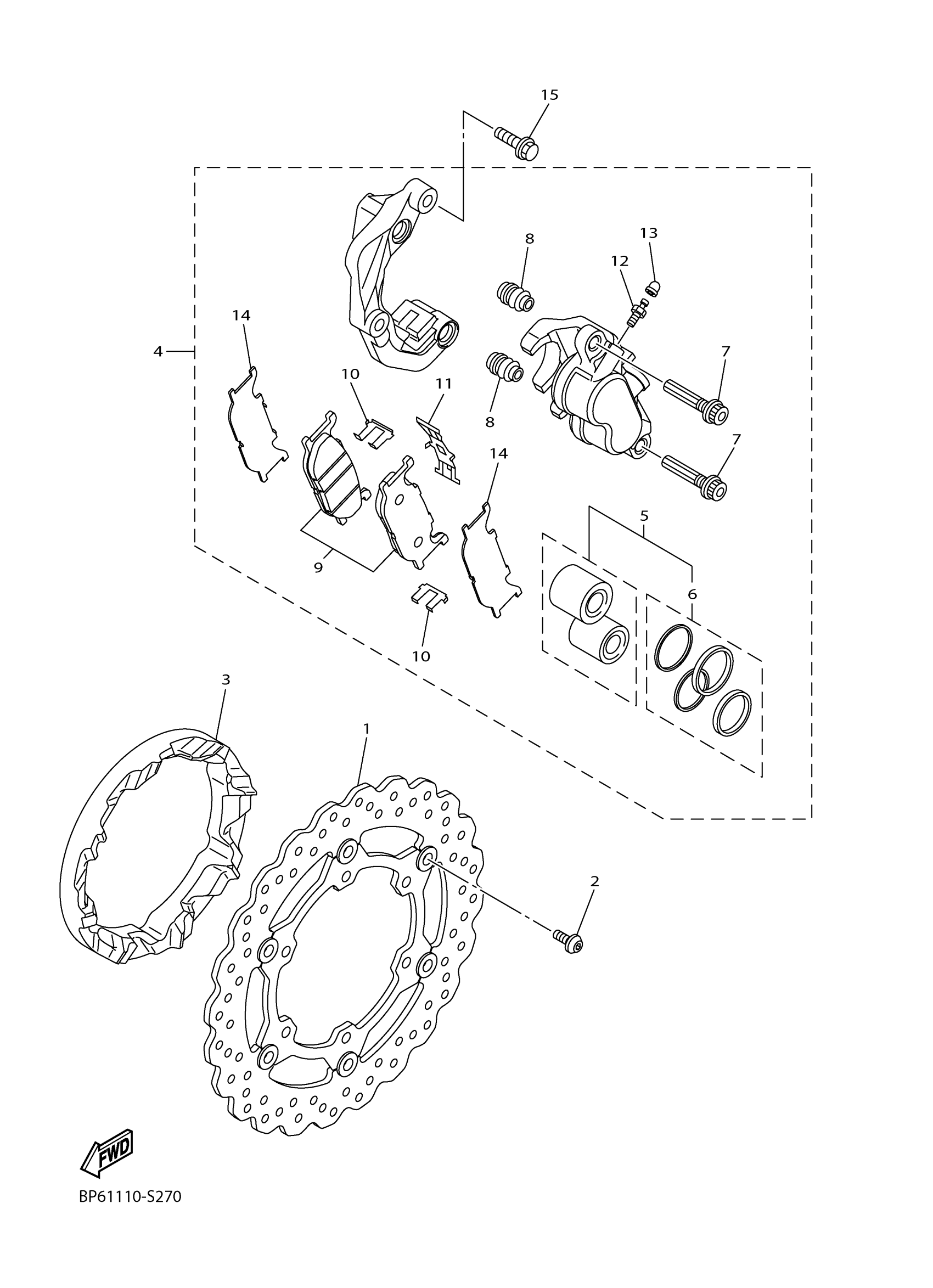

Yamaha XVS95CJCB (BOLT CA) BP6A 2018 FRONT BRAKE CALIPER Diagram

DISK BRAKE ASSY

1TP-2581T-00-00

$183.76

BOLT,HEX. SOCKET BUTTON

90111-08053-00

$5.93

RING, WHEEL 1

BP6-2514A-00-00

Unavailable

CALIPER ASSY (LEFT)

27D-2580T-00-00

Unavailable

PISTON ASSY, CALIPER

3YX-W0057-00-00

Unavailable

CALIPER SEAL KIT

3JB-25803-00-00

$36.93

PIN, SLIDE

5JW-25914-10-00

$17.93

BOOT 2

4TT-25937-00-00

$13.33

BRAKE PAD KIT

5S7-25805-00-00

Unavailable

SUPPORT, PAD

4BP-25919-00-00

$27.53

SPRING, ANTI RATTLE

3YX-25929-00-00

Unavailable

SCREW, BLEED

47X-25824-01-00

$11.87

CAP

1D7-25825-00-00

$6.29

SHIM, CALIPER

4DN-25827-00-00

Unavailable

BOLT, WASHER BASED(3VD)

90105-10638-00

$5.80
