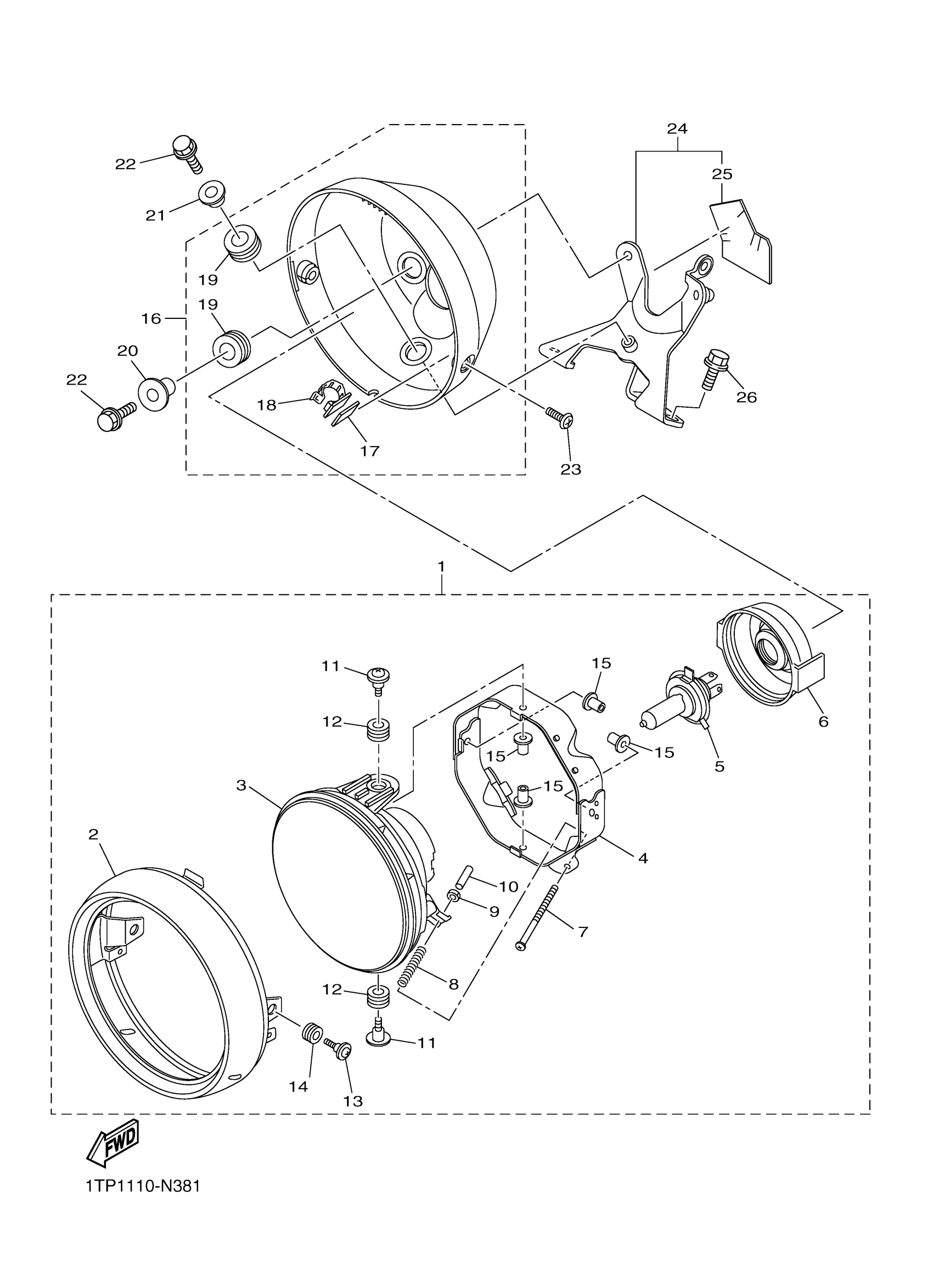

Yamaha XVS95CJCB (BOLT CA) BP6A 2018 HEADLIGHT Diagram

#

Description
Price

1

HEADLIGHT UNIT ASSY

5S7-84310-00-00

$457.64

2

RIM, HEADLIGHT

5S7-84315-00-00

$77.05

3

LENS ASSY

5PX-84320-00-00

$181.41

4

STAY, HEADLIGHT 1

5PX-84318-00-00

$60.64

5

BULB, HEADLIGHT

8V0-84314-10-00

$56.31

6

COVER, SOCKET

5PX-84397-00-00

$33.53

7

SCREW, RIM ADJUSTING

5PX-84331-00-00

$6.29

8

SPRING, SCREW

5PX-84332-00-00

$6.29

9

NUT, ADJUSTING

5PX-84334-00-00

$6.29

10

CAP,1

5PX-84385-00-00

$6.29

11

SCREW, RIM FITTING

5PX-84325-00-00

$6.33

12

GROMMET

5PX-84354-00-00

$4.83

13

SCREW, RIM FITTING

5PX-84125-00-00

$5.99

14

GROMMET

5PX-84352-00-00

$5.55

15

NUT

5PX-84317-00-00

$6.59

16

BODY ASSY

1TP-84330-00-00

Unavailable

17

SEAL 1

1TP-28428-00-00

Unavailable

18

CLAMP

90464-09009-00

Unavailable

19

DAMPER, HEADLIGHT 1

4WM-84366-00-00

Unavailable

20

COLLAR(36Y)

90387-067K8-00

Unavailable

21

COLLAR

90387-06040-00

Unavailable

22

BOLT, FLANGE

95022-06020-00

Unavailable

23

SCREW, BINDING

98907-05014-00

Unavailable

24

HEAD LIGHT STAY ASSY.

1TP-8411A-00-00

Unavailable

25

DAMPER, HEADLIGHT STAY

1TP-84136-00-00

Unavailable

26

BOLT, FLANGE(4MY)

95027-08035-00

Unavailable
