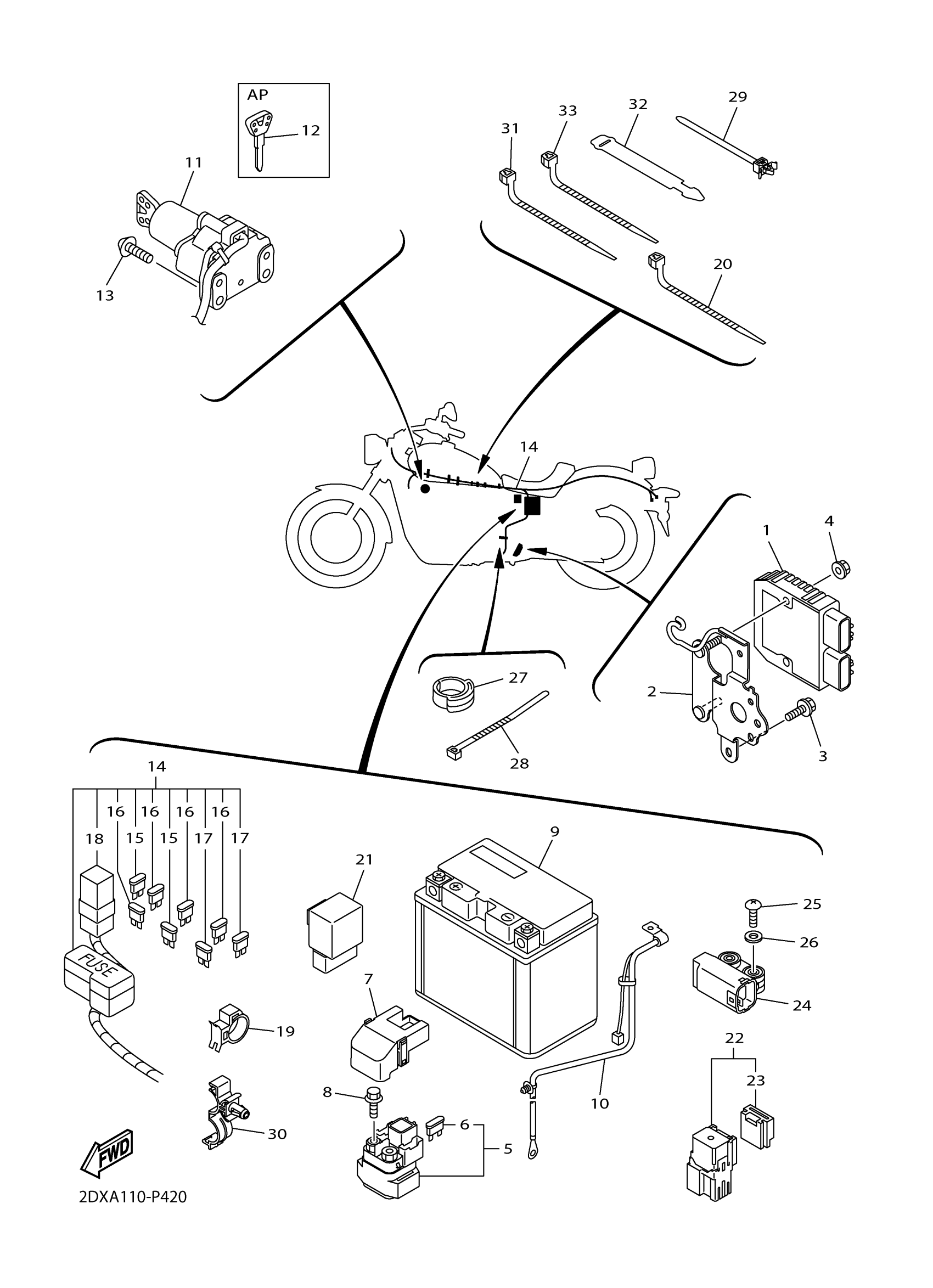

Find the part on the Electrical 2 diagram for your 2018 Yamaha Bolt CA (XVS95CJCB), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2018 Yamaha Bolt CA (XVS95CJCB) Electrical 2 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

RECTIFIER & REGULATOR ASSY

1D7-81960-01-00

1

$277.19

In stock

2

BRACKET, REGULATOR

1TP-2128A-00-00

1

$30.25

In stock

3

BOLT, FLANGE

95817-06014-00

—

$2.15

In stock

4

NUT, FLANGE(4MV)

95707-06500-00

1

$0.78

In stock

5

1

$98.99

In stock

6

FUSE (10A)

42X-82151-00-00

1

$2.16

In stock

7

COVER, LEAD WIRE

5SL-82119-10-00

1

$4.06

In stock

8

BOLT, FLANGE

95022-06008-00

1

$6.26

In stock

9

BATTERY YTZ14S

YTZ-14S00-00-00

1

$271.99

In stock

10

WIRE, MINUS LEAD

1TP-82116-01-00

1

$29.28

In stock

11

MAIN SWITCH ASSY

1TP-82510-01-00

1

$132.15

In stock

12

BLANK KEY

4BH-82511-09-00

1

$24.43

In stock

13

SCREW

90149-06002-00

1
Out of stock

14

WIRE HARNESS ASSY

BP6-82590-00-00

1

$682.99

In stock

15

FUSE (15A)

67F-82151-50-00

1

$3.71

In stock

16

FUSE (7.5A-BL)

5JJ-82151-00-00

—

$5.93

In stock

17

FUSE

5JJ-82151-20-00

—

$6.42

In stock

18

SLOW BLOW FUSE

JR9-82151-00-00

—

$9.62

In stock

19

CLAMP(4GY)

90464-20191-00

—

$7.35

In stock

20

BAND

1UA-82591-00-00

—
Out of stock

21

RELAY ASSY

5VK-81950-33-00

—
Out of stock

22

RELAY ASSY

1TP-81950-00-00

—
Out of stock

23

HOLDER,RELAY

5EA-81952-00-00

—

$6.72

In stock

24

SENSOR, LEAN ANGLE

5VU-82576-03-00

—

$84.99

In stock

25

SCREW, ROUND TAPPING

90160-04009-00

—

$5.20

In stock

26

WASHER, PLATE

90201-04030-00

—
Out of stock

27

CLAMP

90464-13227-00

—

$6.92

In stock

28

CLAMP

90464-36005-00

1

$0.88

In stock

29

CLAMP

90464-14006-00

—

$4.26

In stock

30

CLAMP

90464-16012-00

—

$5.43

In stock

31

CLAMP(4FM)

90464-15195-00

—

$2.77

In stock

32

BAND

1TP-82591-00-00

—

$3.37

In stock

33

CLAMP(4FM)

90464-15195-00

—

$2.77

In stock
