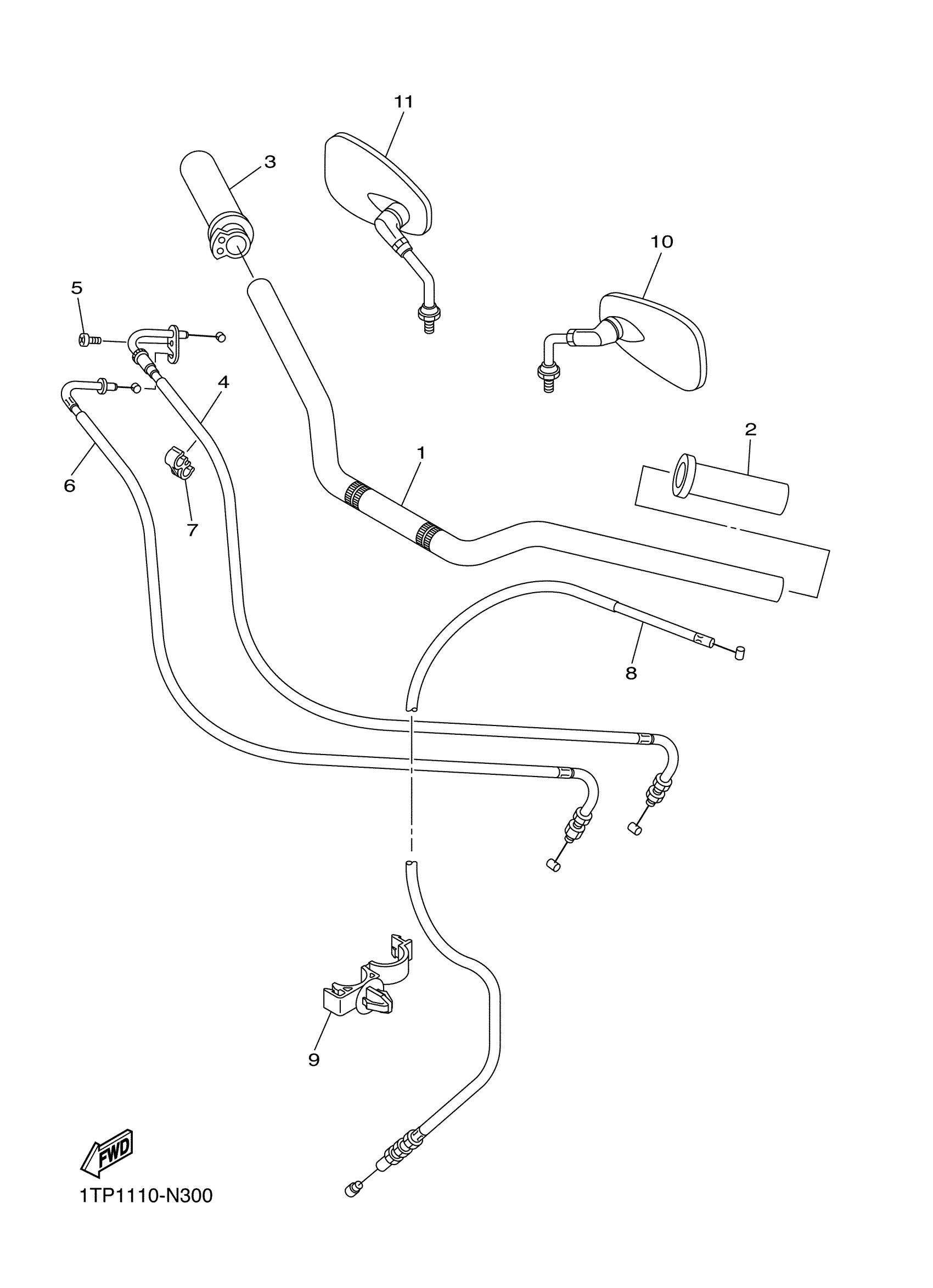

Yamaha XVS95CGY (BOLT R SPEC) 2DXG0 2016 STEERING HANDLE CABLE Diagram

#

Description
Price

1

HANDLEBAR

1TP-26111-00-00

$191.99

2

GRIP

1TP-26241-00-00

Unavailable

3

GRIP ASSY

1TP-26240-00-00

$62.99

4

CABLE, THROTTLE 1

1TP-26311-00-00

$37.99

5

SCREW, PAN HEAD(JJ6)

98507-05016-00

$2.18

6

CABLE, THROTTLE 2

1TP-26312-00-00

$36.99

7

CLAMP(4KB)

90464-06214-00

$3.61

8

CABLE, CLUTCH

1TP-26335-00-00

$47.99

9

CLAMP

90464-17003-00

$3.61

10

REAR VIEW MIRROR ASSY (LEFT)

2DX-26280-00-00

$129.99

11

REAR VIEW MIRROR ASSY (RIGHT)

2DX-26290-00-00

$122.99
