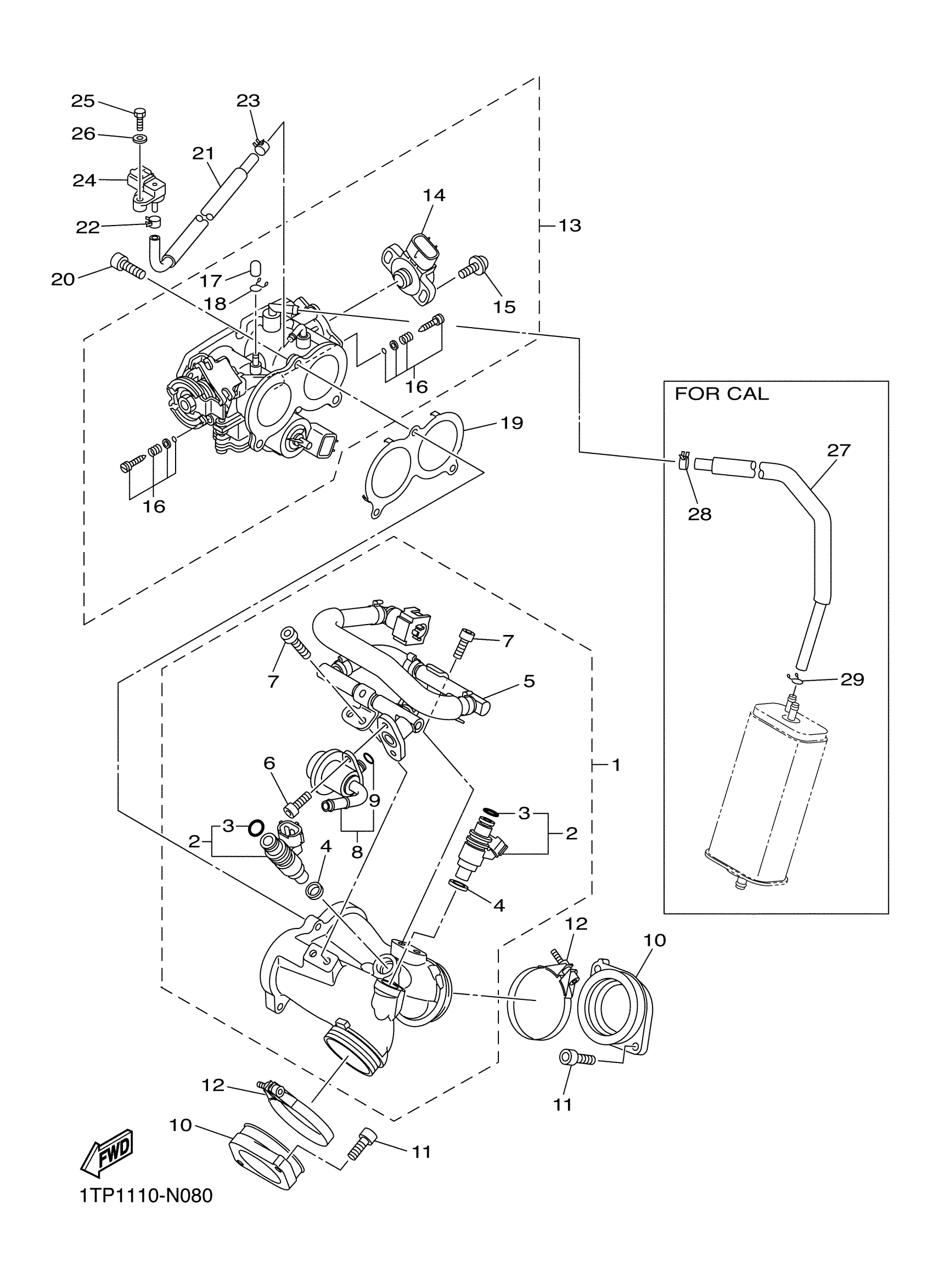

Yamaha XVS95CGL (BOLT) 1TP80 2016 INTAKE 1 Diagram

#

Description
Price

1

CARBURETOR JOINT A

1TP-13590-10-00

$577.99

2

INJECTOR

5S7-13761-00-00

$200.99

3

O-RING

5PS-14147-00-00

$13.49

4

GASKET, MANIFOLD

8FP-13556-00-00

$13.99

5

PIPE INLET ASSEMBLY

1TP-13930-00-00

Unavailable

6

BOLT

91312-05010-00

$5.60

7

BOLT (33M)

91312-06014-00

$5.60

8

REGULATOR, PRESSURE

1TP-13906-10-00

$128.99

9

O-RING

5S7-13769-00-00

$35.99

10

JOINT, CARBURETOR 1

5S7-13586-00-00

$119.99

11

BOLT,SOCKET HEAD

91314-06020-00

$1.49

12

HOSE CLAMP ASSY

90450-54006-00

$14.99

13

THROTTLE BODY ASSY

1TP-13750-02-00

Unavailable

14

THROTTLE SENSOR AS

8GL-85885-01-00

$92.99

15

SCREW

4KM-24453-00-00

$6.99

16

AIR SCREW SET

3D8-14104-00-00

Unavailable

17

CAP

895-14169-00-00

Unavailable

18

CLIP, PIPE

8A7-14139-00-00

Unavailable

19

SEAL

BL3-14467-00-00

Unavailable

20

BOLT,SOCKET HEAD

91314-06020-00

$1.49

21

HOSE, AIR

1TP-13895-00-00

Unavailable

22

CLIP(42X)

90467-07093-00

Unavailable

23

CLIP(41W)

90467-08092-00

Unavailable

24

SENSOR, PRESSURE

5S7-82380-00-00

Unavailable

25

BOLT(3JK)

97027-05020-00

Unavailable

26

WASHER, PLAIN (646)

92990-05600-00

Unavailable
