2016 Yamaha Bolt (XVS95CGL) Front Master Cylinder Diagram

← All diagrams

Find the part on the Front Master Cylinder diagram for your 2016 Yamaha Bolt (XVS95CGL), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

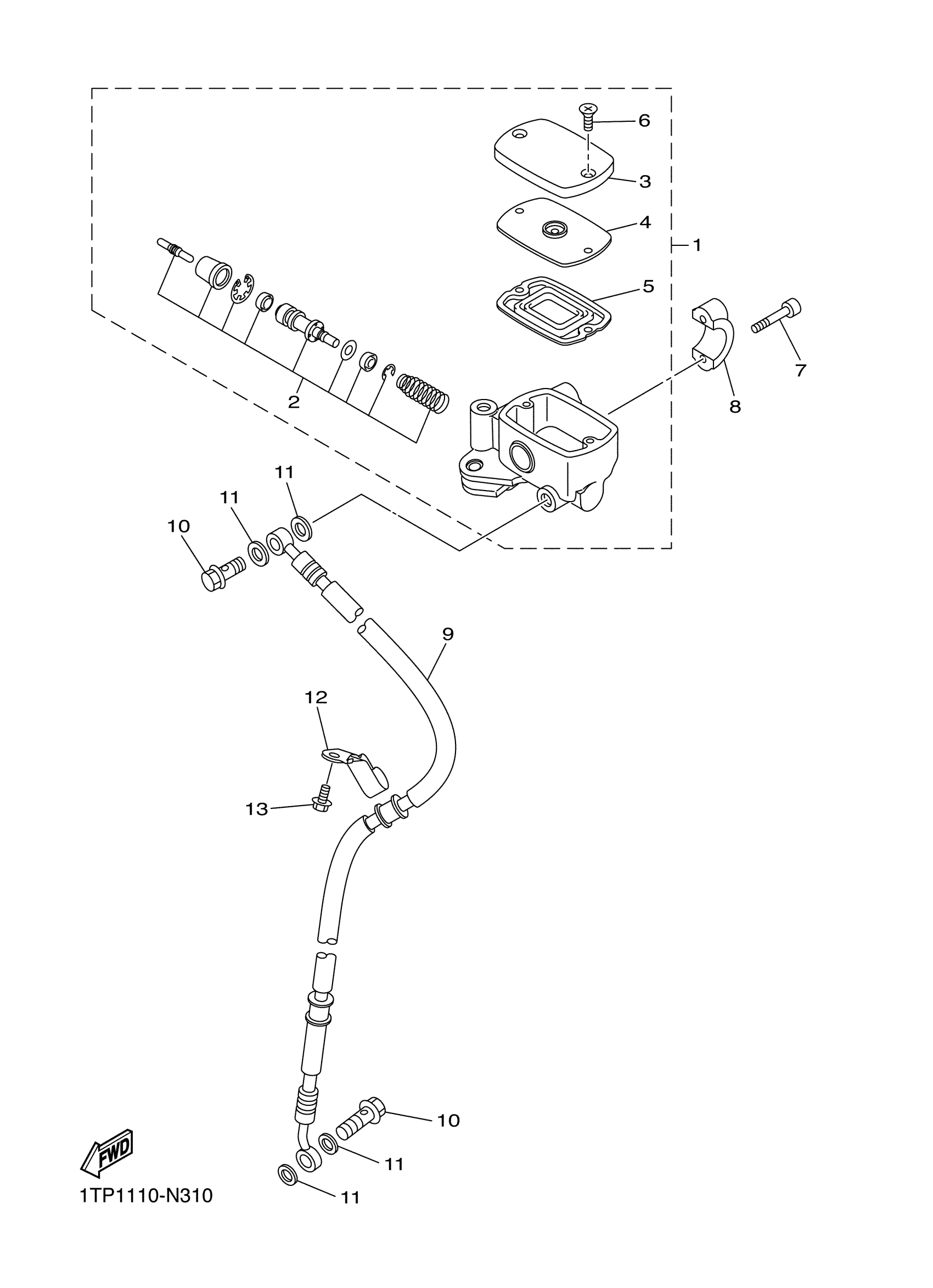

2016 Yamaha Bolt (XVS95CGL) Front Master Cylinder Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

MASTER CYLINDER SUB ASSY 2

1TP-2580A-00-00

1

$192.68

In stock

2

CYLINDER KIT, MASTER

1TP-25807-00-00

1

$28.62

In stock

3

CAP, RESERVOIR

4B5-25852-00-00

1

$31.89

In stock

4

BUSH,DIAPHRAGM

4B5-25855-00-00

1

$6.43

In stock

5

DIAPHRAGM, RESERVOIR

4B5-25854-00-00

—

$17.42

In stock

6

SCREW

5VS-2589H-00-00

1

$3.38

In stock

7

BOLT

5VS-26332-00-00

1

$3.92

In stock

8

BRACKET, MASTER CYLINDER

3D8-25867-00-00

—

$45.63

In stock

9

HOSE, BRAKE 1

1TP-25872-00-00

—

$78.28

In stock

10

BOLT, UNION

90401-10020-00

1

$8.29

In stock

11

GASKET

90430-10005-00

1

$7.06

In stock

12

HOLDER, BRAKE HOSE

1TP-25886-00-00

—

$14.28

In stock

13

BOLT, FLANGE(4MY)

95027-06010-00

1
Out of stock
