2016 Yamaha Bolt (XVS95CGL) Front Brake Caliper Diagram

← All diagrams

Find the part on the Front Brake Caliper diagram for your 2016 Yamaha Bolt (XVS95CGL), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

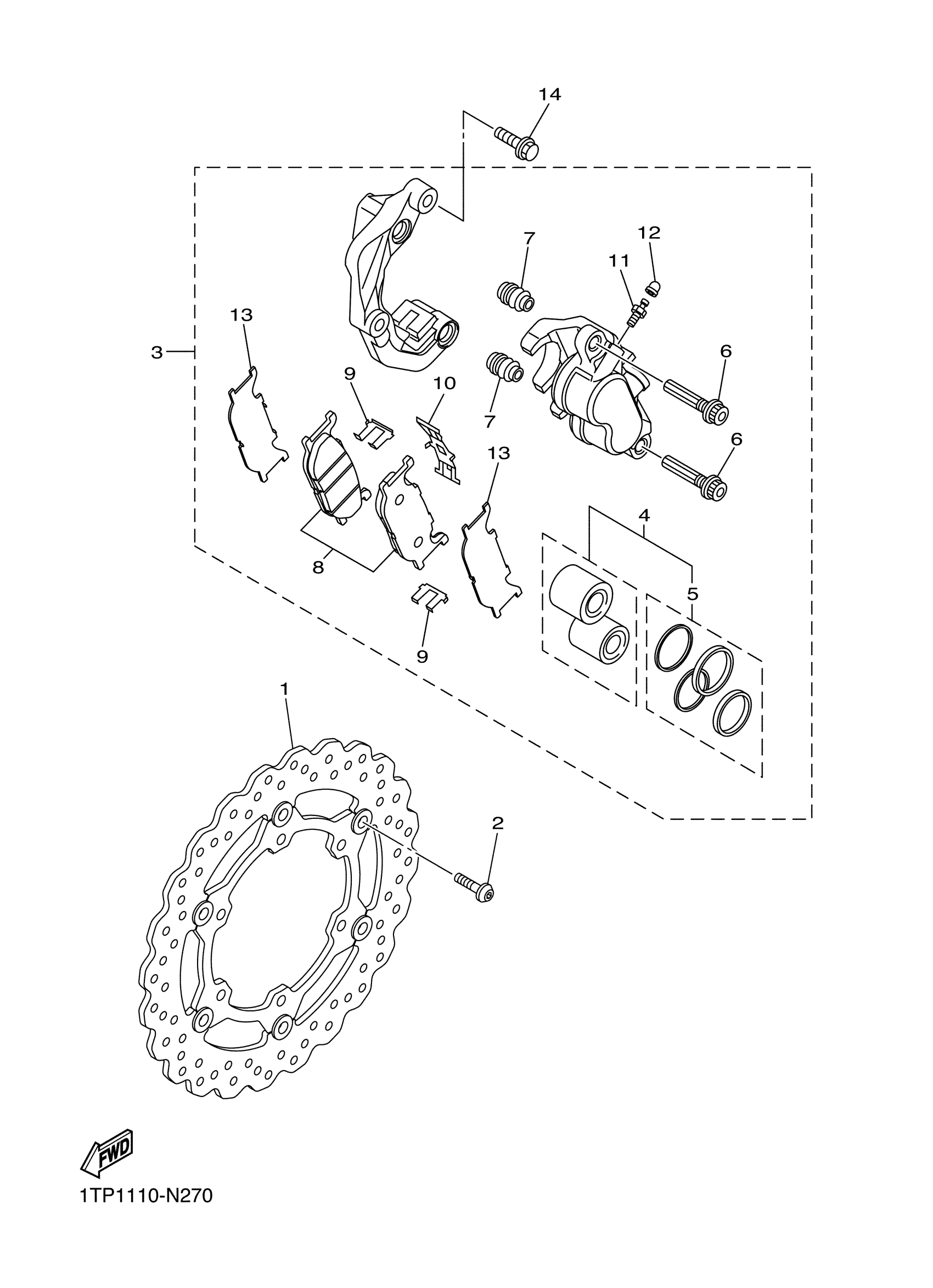

2016 Yamaha Bolt (XVS95CGL) Front Brake Caliper Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

DISK BRAKE ASSY

1TP-2581T-00-00

1

$226.52

In stock

2

BOLT,HEX. SOCKET BUTTON

90111-08057-00

1

$1.94

In stock

3

CALIPER ASSY (LEFT)

27D-2580T-00-00

—

$438.51

In stock

4

PISTON ASSY, CALIPER

3YX-W0057-00-00

—

$54.97

In stock

5

CALIPER SEAL KIT

3JB-25803-00-00

1

$38.48

In stock

6

PIN, SLIDE

5JW-25914-10-00

1

$19.20

In stock

7

BOOT 2

4TT-25937-00-00

1

$14.25

In stock

8

BRAKE PAD KIT

5S7-25805-00-00

1
Out of stock

9

SUPPORT, PAD

4BP-25919-00-00

1

$27.53

In stock

10

SPRING, ANTI RATTLE

3YX-25929-00-00

—

$27.66

In stock

11

SCREW, BLEED

47X-25824-01-00

1

$12.72

In stock

12

CAP

1D7-25825-00-00

1

$6.38

In stock

13

SHIM, CALIPER

4DN-25827-00-00

—

$20.86

In stock

14

BOLT, WASHER BASED(3VD)

90105-10638-00

1

$6.22

In stock
