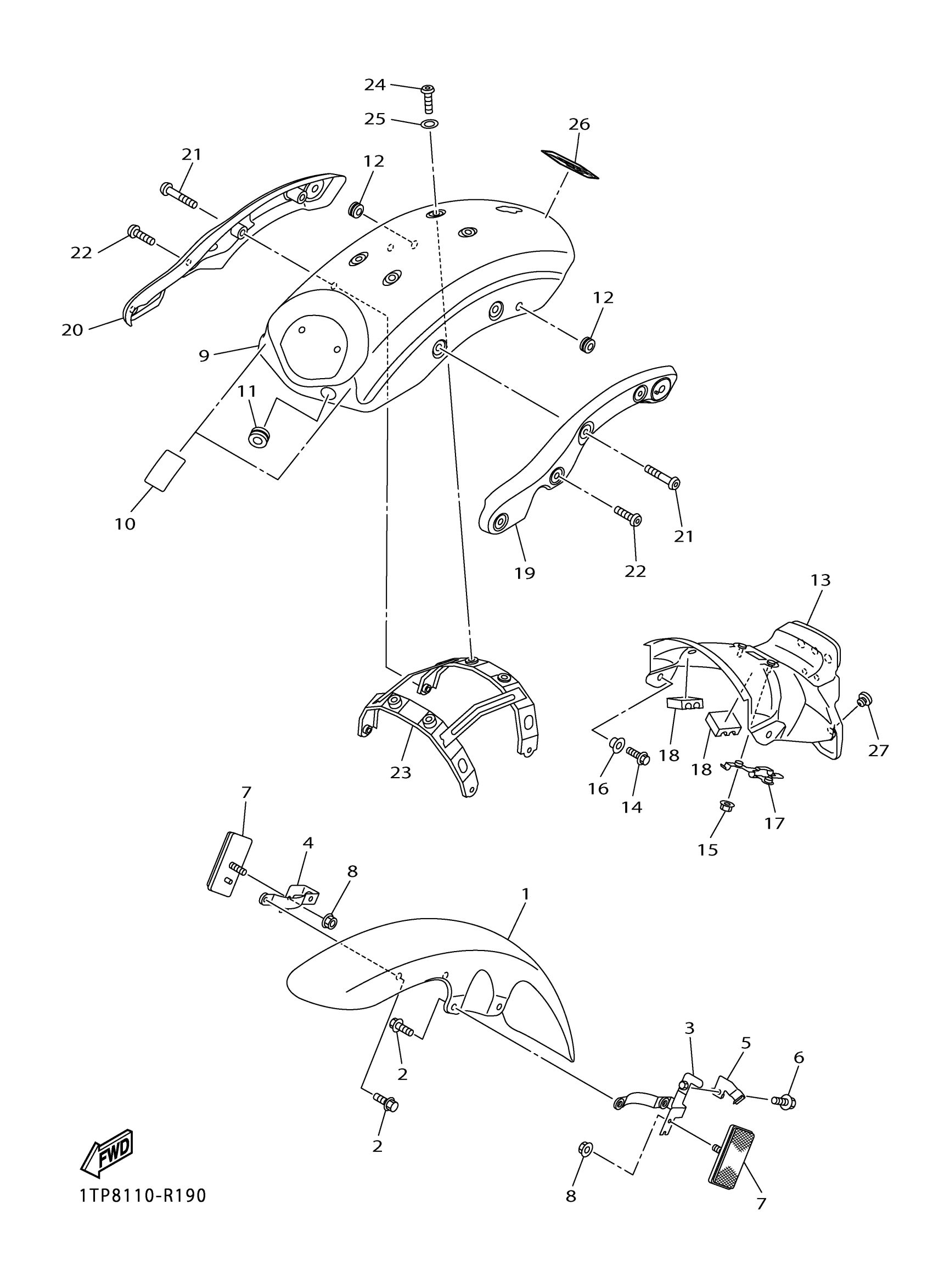

Yamaha XVS95CGL (BOLT) 1TP80 2016 FENDER Diagram

#

Description
Price

1

FRONT FENDER COMP.

1TP-21510-00-P0

$536.99

2

BOLT, FLANGE

95812-08020-00

$2.80

3

STAY 1

1TP-21587-00-00

Unavailable

4

STAY 2

1TP-21588-00-00

Unavailable

5

HOLDER, BRAKE HOSE

27D-25887-00-00

Unavailable

6

BOLT, FLANGE(4MY)

95027-06010-00

$3.29

7

FRONT REFLECTOR ASSY

11H-85110-01-00

$27.99

8

NUT, FLANGE(3GM)

95707-05500-00

$8.49

9

REAR FENDER COMP.

1TP-21610-01-P0

$762.99

10

SEAL

1TP-21669-00-00

$4.32

11

GROMMET

90480-01015-00

$7.49

12

GROMMET 136825980000

90480-13016-00

$3.30

13

FENDER 2

1TP-2162R-01-00

$16.49

14

BOLT, FLANGE

95817-06014-00

Unavailable

15

NUT, U FLANGE

95604-06200-00

$8.49

16

COLLAR (3L1)

90387-07717-00

Unavailable

17

BRACKET, REAR STAY

1TP-21688-00-00

Unavailable

18

DAMPER 2

1TP-21639-00-00

Unavailable

19

STAY, FENDER 1

1TP-21613-00-00

Unavailable

20

STAY, FENDER 2

1TP-21614-00-00

Unavailable

21

BOLT

90111-08005-00

Unavailable

22

BOLT

90111-10006-00

Unavailable

23

STAY, REAR

1TP-21643-00-00

Unavailable

24

BOLT,HEX. SOCKET BUTTON

90111-08081-00

Unavailable

25

WASHER, PLATE

90201-08066-00

Unavailable

26

EMBLEM 1

B33-2163G-01-00

Unavailable

27

PLUG

90338-07010-00

Unavailable
