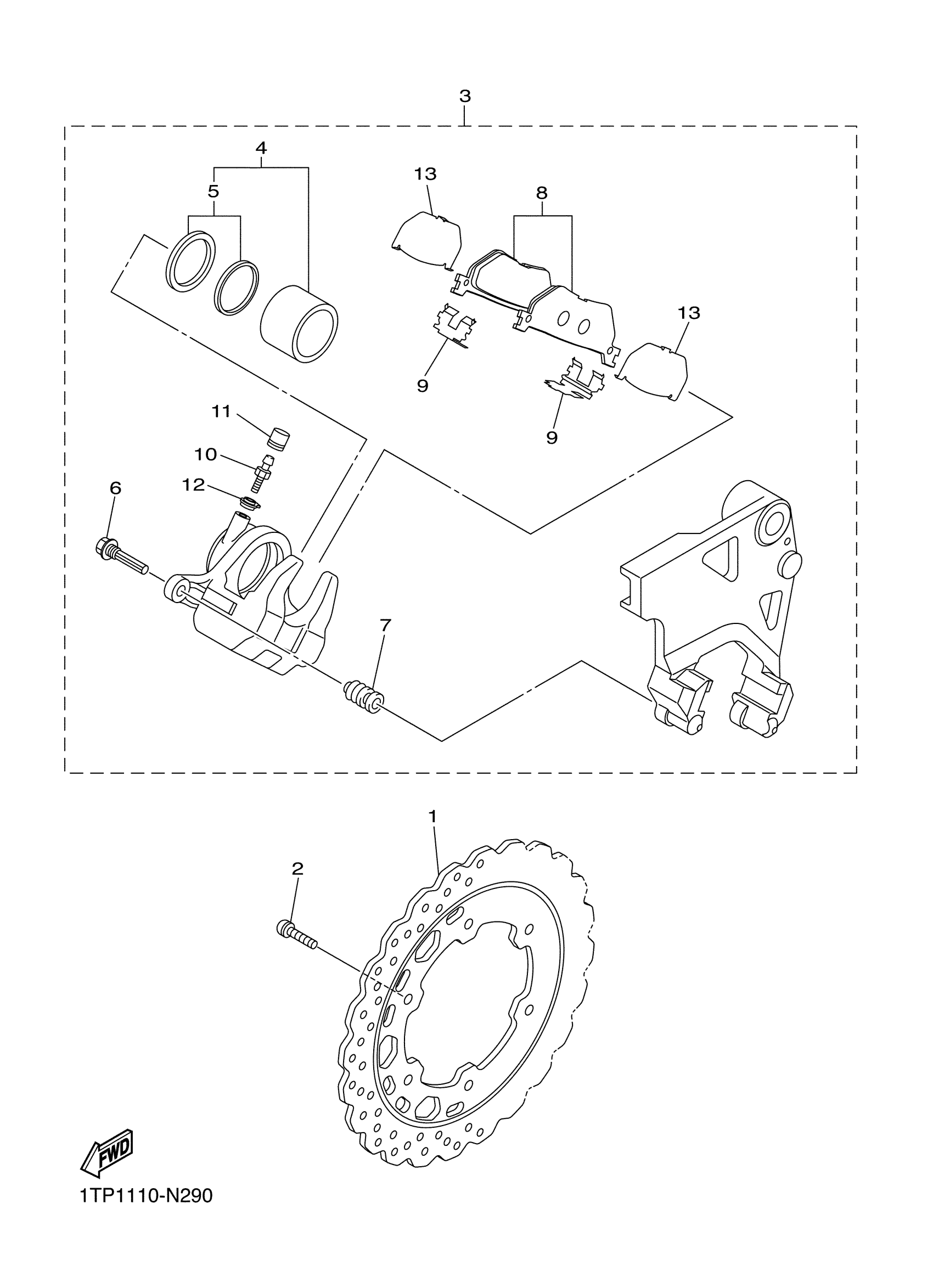

Yamaha XVS95CFS (BOLT R SPEC) 2DXA0 2015 REAR BRAKE CALIPER Diagram

#

Description
Price

1

DISK, REAR BRAKE 2

1TP-2582W-00-00

$214.99

2

BOLT,HEX. SOCKET BUTTON

90111-08057-00

$5.60

3

CALIPER ASSY, REAR 2

1TP-2580W-00-00

$471.99

4

PISTON ASSY, CALIPER

1D7-25802-00-00

$56.99

5

CALIPER SEAL KIT

5JW-25803-00-00

$16.49

6

PIN, SLIDE

3P6-25914-00-00

$16.49

7

BOOT 2

4TT-25937-00-00

$16.49

8

BRAKE PAD KIT 2

3D8-25806-00-00

$44.99

9

SUPPORT, PAD

1D7-25919-00-00

$18.49

10

SCREW, BLEED

5GM-25824-00-00

$6.99

11

CAP

1D7-25825-00-00

$7.99

12

RUBBER, BUSHING

5GM-25975-00-00

$4.32

13

SHIM, CALIPER

5GJ-25827-00-00

$12.99
