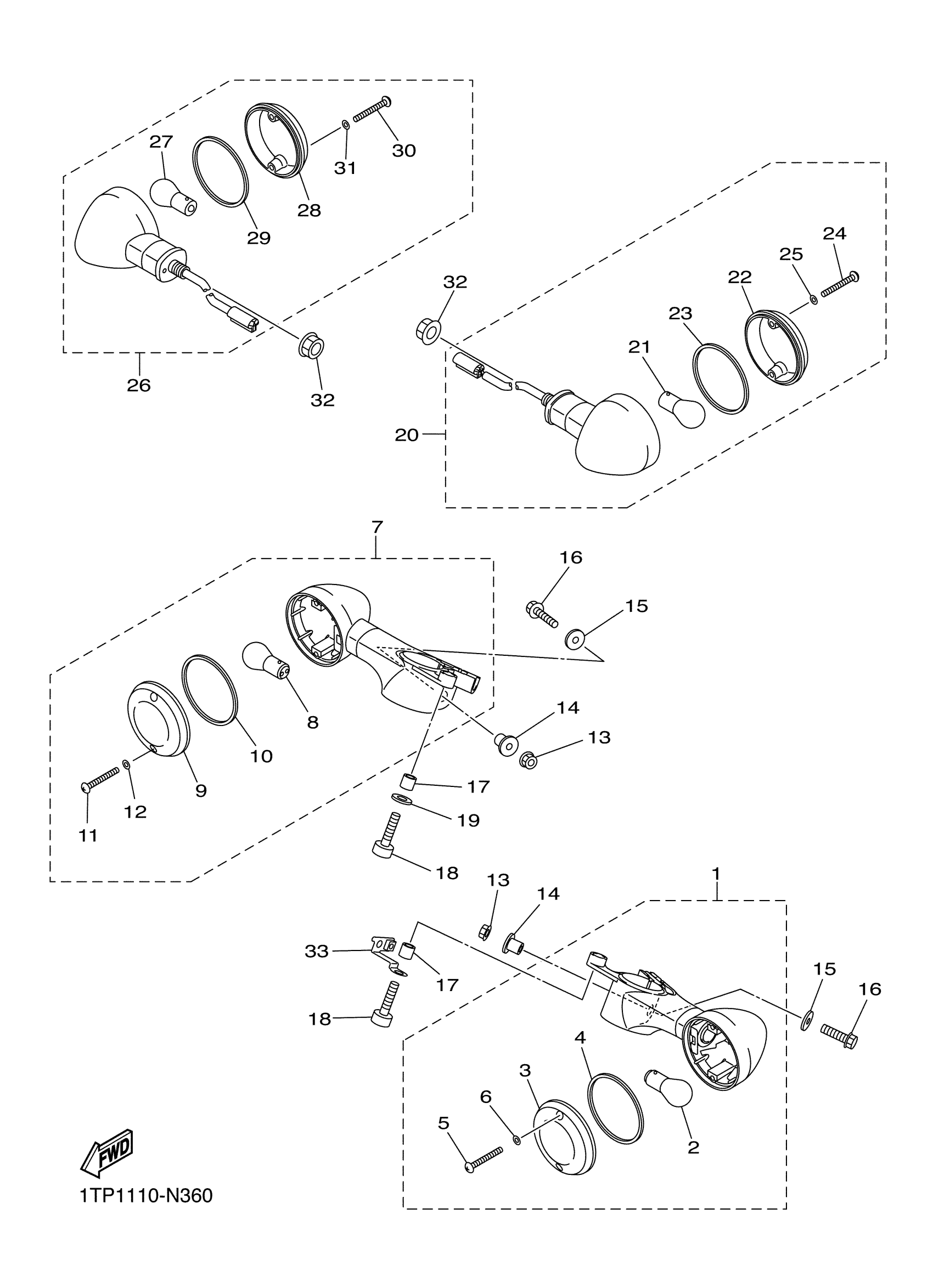

Yamaha XVS95CFR (BOLT) 1TP50 2015 FLASHER LIGHT Diagram

#

Description
Price

1

FRONT FLASHER LIGHT ASSY 1

1TP-83310-00-00

$94.99

2

BULB, FLASHER (12V-23/8W)

5VN-83311-00-00

$15.49

3

LENS, FLASHER

5PX-83312-10-00

$9.99

4

GASKET, FLASHER LENS

5PX-83313-00-00

$6.99

5

SCREW, TAPPING

97704-40625-00

$8.49

6

WASHER

5PX-83348-00-00

$6.99

7

FRONT FLASHER LIGHT ASSY 2

1TP-83320-00-00

Unavailable

8

BULB, FLASHER (12V-23/8W)

5VN-83311-00-00

$15.49

9

LENS, FLASHER

5PX-83312-10-00

$9.99

10

GASKET, FLASHER LENS

5PX-83313-00-00

$6.99

11

SCREW, TAPPING

97704-40625-00

$8.49

12

WASHER

5PX-83348-00-00

$6.99

13

NUT, FLANGE(4MV)

95707-06500-00

$1.23

14

COLLAR

90387-06076-00

$5.60

15

WASHER, PLATE

90201-06045-00

$8.49

16

BOLT, SMALL FLANGE

95027-06025-00

Unavailable

17

COLLAR

90387-08085-00

Unavailable

18

BOLT, SOCKET

91317-08025-00

Unavailable

19

WASHER, PLATE(3XP)

90201-083P5-00

Unavailable

20

REAR FLASHER LIGHT ASSY 1

5C7-83330-10-00

Unavailable

21

BULB, FLASHER (12V-21W)

5VN-83331-00-00

Unavailable

22

LENS, FLASHER 2

5PX-83342-10-00

Unavailable

23

GASKET, FLASHER LENS

5PX-83313-00-00

$6.99

24

SCREW, TAPPING

97704-40625-00

$8.49

25

WASHER

5PX-83348-00-00

$6.99

26

REAR FLASHER LIGHT ASSY 2

5C7-83340-10-00

Unavailable

27

BULB, FLASHER (12V-21W)

5VN-83331-00-00

Unavailable

28

LENS, FLASHER 2

5PX-83342-10-00

Unavailable

29

GASKET, FLASHER LENS

5PX-83313-00-00

$6.99

30

SCREW, TAPPING

97704-40625-00

$8.49

31

WASHER

5PX-83348-00-00

$6.99

32

95702-12500

95702-12500-00

Unavailable

33

BRACKET

1TP-2256L-00-00

Unavailable
