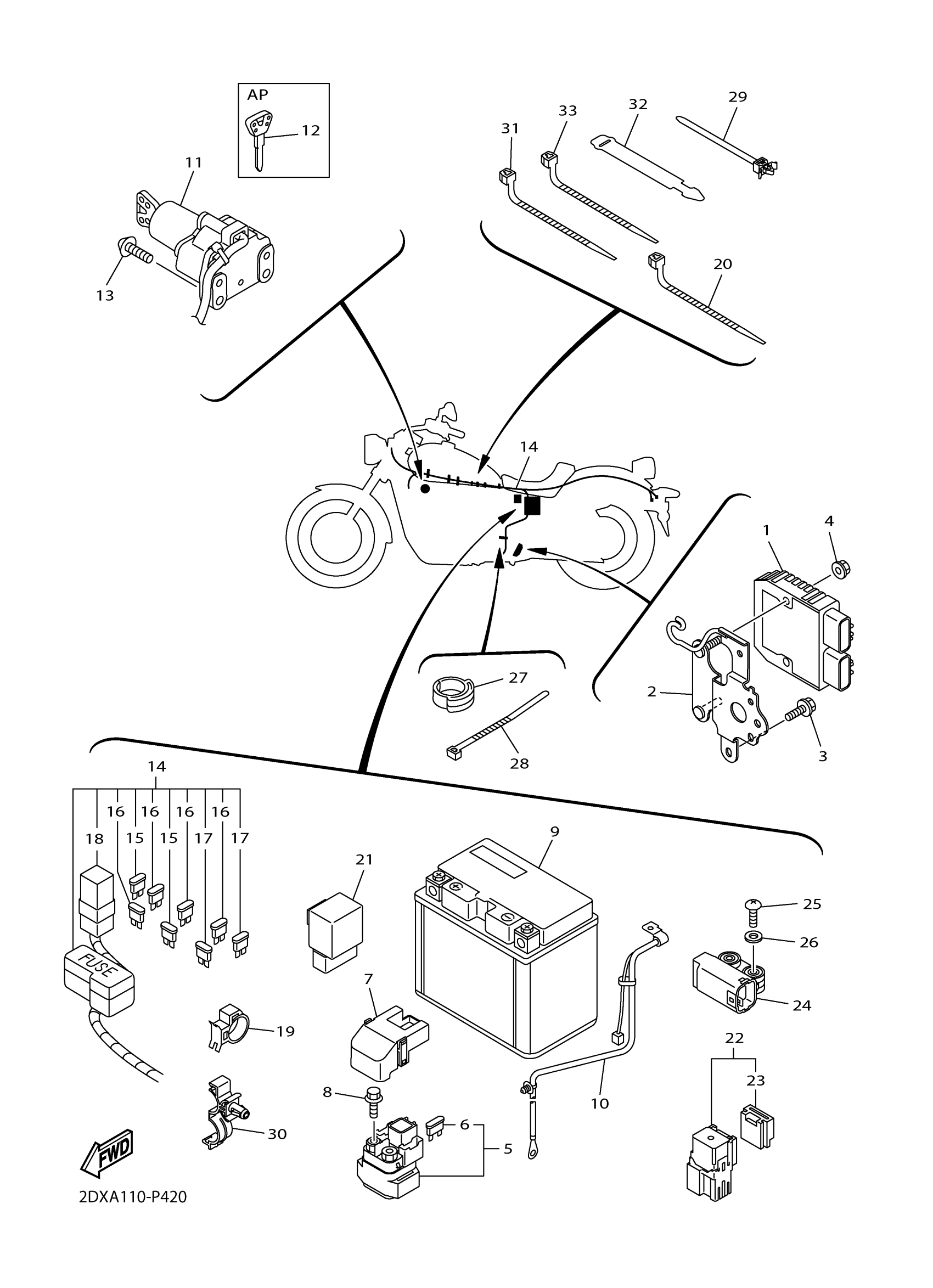

Yamaha XVS95CFR (BOLT) 1TP50 2015 ELECTRICAL 2 Diagram

#

Description
Price

1

RECTIFIER & REGULATOR ASSY

1D7-81960-01-00

$323.99

2

BRACKET, REGULATOR

1TP-2128A-00-00

$33.99

3

BOLT, FLANGE

95817-06014-00

Unavailable

4

NUT, FLANGE(4MV)

95707-06500-00

$1.23

5

STARTER RELAY ASSY (RC19-089A)

5S7-81940-00-00

$114.99

6

FUSE (10A)

42X-82151-00-00

$4.32

7

COVER, LEAD WIRE

5SL-82119-10-00

$4.68

8

BOLT, FLANGE

95022-06008-00

$8.49

9

BATTERY YTZ14S

YTZ-14S00-00-00

Unavailable

10

WIRE, MINUS LEAD

1TP-82116-01-00

$33.99

11

MAIN SWITCH ASSY

1TP-82510-01-00

$134.99

12

BLANK KEY

4BH-82511-09-00

$30.99

13

SCREW

90149-06002-00

$8.49

14

WIRE HARNESS ASSY

1TP-82590-02-00

Unavailable

15

FUSE (15A)

67F-82151-50-00

Unavailable

16

FUSE (7.5A-BL)

5JJ-82151-00-00

Unavailable

17

FUSE

5JJ-82151-20-00

Unavailable

18

SLOW BLOW FUSE

JR9-82151-00-00

Unavailable

19

CLAMP(4GY)

90464-20191-00

Unavailable

20

BAND

1UA-82591-00-00

Unavailable

21

RELAY ASSY

5VK-81950-33-00

Unavailable

22

RELAY ASSY

1TP-81950-00-00

Unavailable

23

HOLDER,RELAY

5EA-81952-00-00

Unavailable

24

SENSOR, LEAN ANGLE

5VU-82576-03-00

Unavailable

25

SCREW, ROUND TAPPING

90160-04009-00

Unavailable

26

WASHER, PLATE

90201-04030-00

Unavailable

27

CLAMP

90464-13227-00

Unavailable

28

CLAMP

90464-36005-00

Unavailable

29

CLAMP

90464-14006-00

Unavailable

30

CLAMP

90464-16012-00

Unavailable

31

CLAMP(4FM)

90464-15195-00

Unavailable

32

BAND

1TP-82591-00-00

Unavailable

33

CLAMP(4FM)

90464-15195-00

Unavailable
