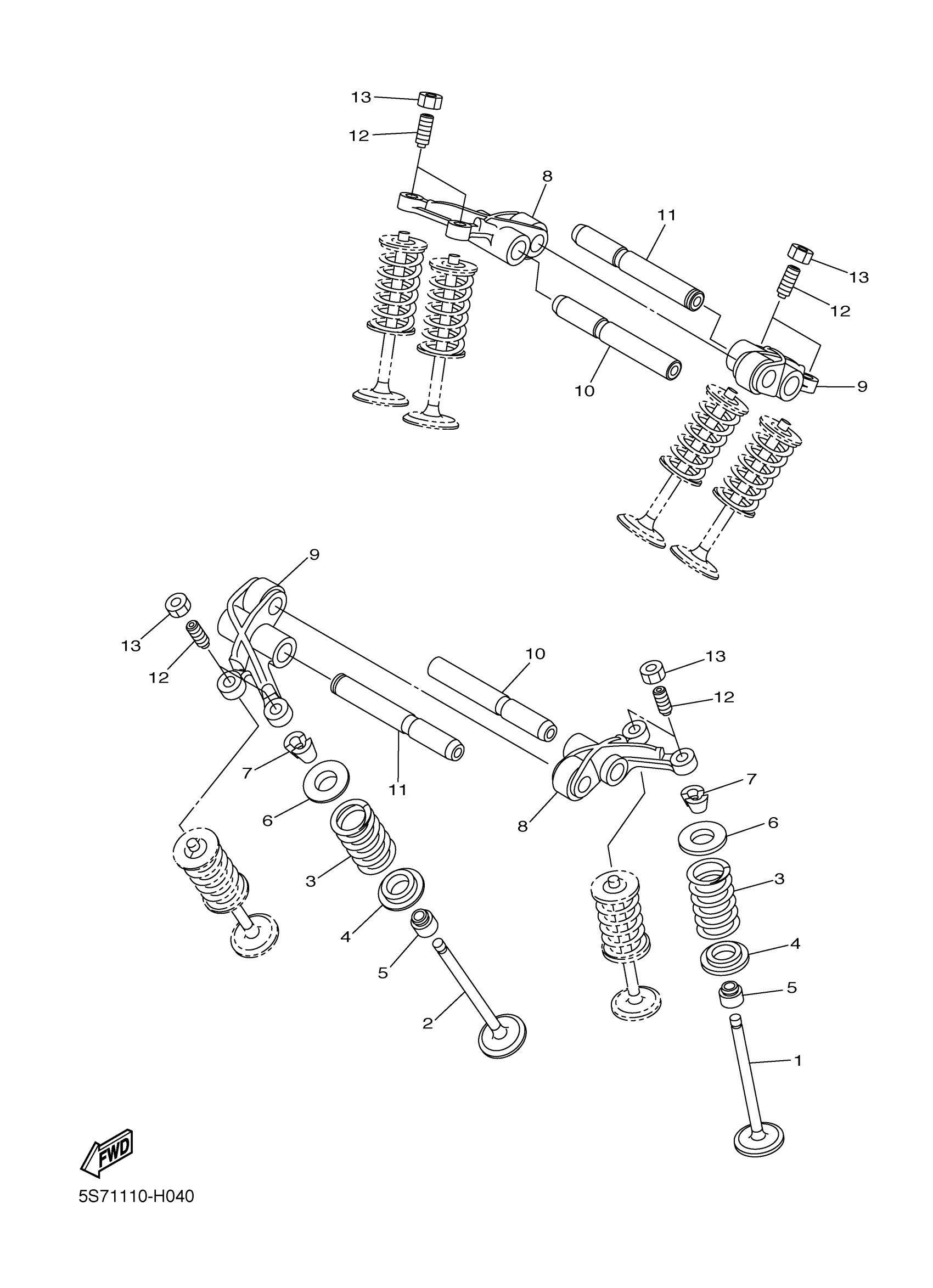

Yamaha XVS95CEW (BOLT) 1TP10 2014 VALVE Diagram

VALVE, INTAKE

5S7-12111-00-00

$36.99

VALVE, EXHAUST

5S7-12121-00-00

$43.99

SPRING, VALVE INNER

5S7-12113-00-00

$16.49

SEAT, VALVE SPRING

3YF-12116-00-00

$8.99

SEAL, VALVE STEM

5H0-12119-00-00

$16.49

RETAINER, VALVE SPRING

3YF-12117-01-00

$15.49

COTTER, VALVE

4G0-12118-00-00

$7.99

ARM, VALVE ROCKER

5S7-12151-00-00

Unavailable

ARM, VALVE ROCKER 2

5S7-12161-00-00

Unavailable

SHAFT, ROCKER

5S7-12146-00-00

$32.99

SHAFT, ROCKER 2

5S7-12156-00-00

$34.99

SCREW, VALVE ADJUSTING

4X7-12159-00-00

Unavailable

NUT, HEXAGON

90170-08173-00

$8.49
