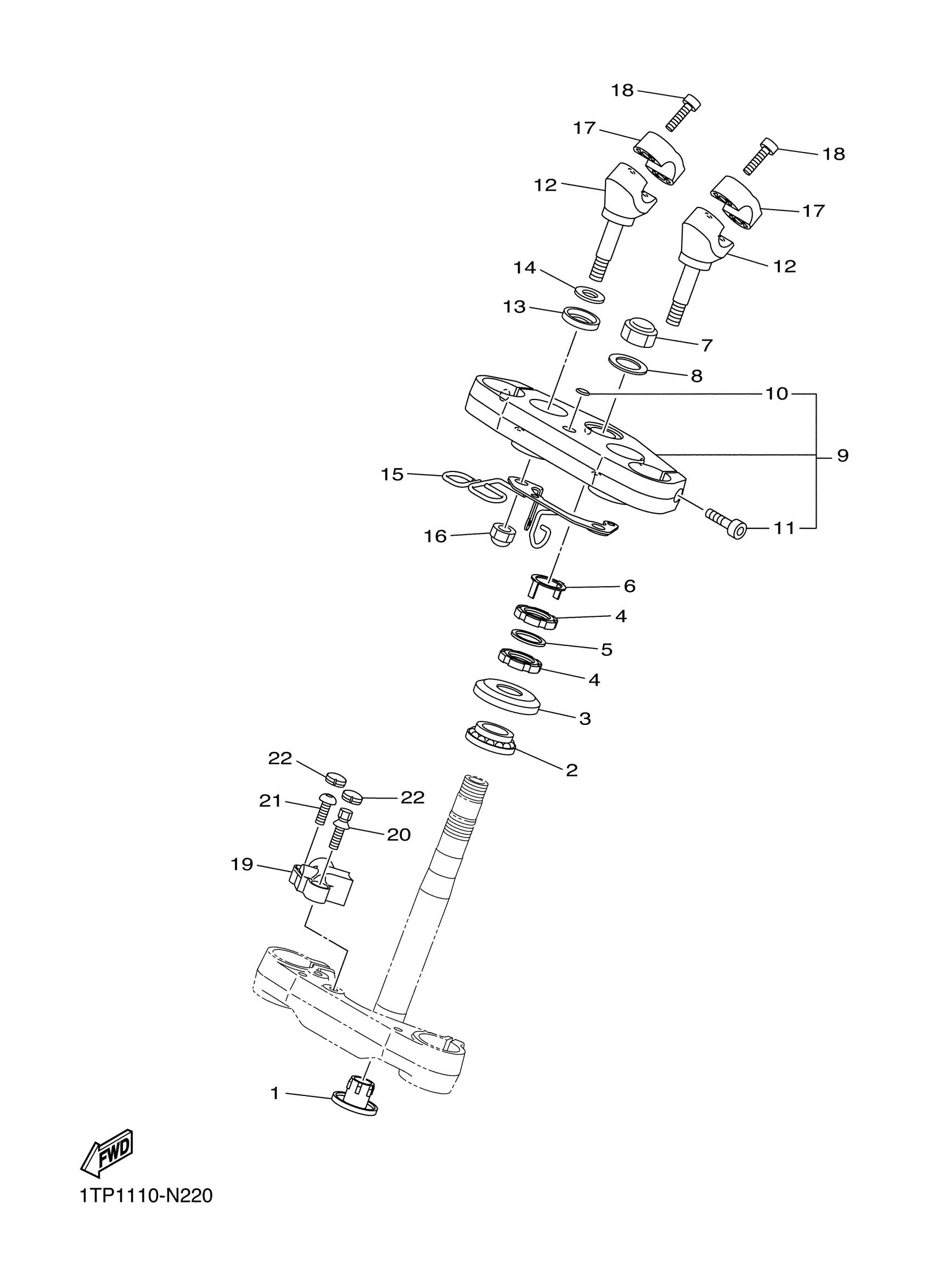

Yamaha XVS95CEW (BOLT) 1TP10 2014 STEERING Diagram

#

Description
Price

1

COVER, LOWER 1

4KM-23123-01-00

$14.49

2

BEARING(3FV)

93399-99931-00

$57.99

3

COVER, BALL RACE 2

1W1-23416-00-00

Unavailable

4

NUT

90179-25004-00

$24.99

5

WASHER, PLATE (26H)

90202-26142-00

$9.49

6

WASHER, SPECIAL

26H-23418-01-00

$14.49

7

NUT, CROWN

90176-22002-00

$34.99

8

WASHER, PLATE

90201-22018-00

$5.60

9

CROWN, HANDLE

1TP-Y2343-00-00

Unavailable

10

TUNING FORK MARK

14B-2836B-00-00

Unavailable

11

BOLT,SOCKET

91314-08030-00

$2.34

12

HOLDER, HANDLE LOWER

1TP-23442-00-00

$112.99

13

DAMPER

3DM-23445-00-00

$7.99

14

WASHER PLATE 248181370000

90201-14220-00

$8.49

15

GUIDE, CABLE

1TP-23389-00-00

Unavailable

16

NUT, CROWN(4TR)

90176-12052-00

Unavailable

17

HOLDER, HANDLE UPPER

1TP-23441-00-00

Unavailable

18

BOLT,SOCKET

91314-08025-00

Unavailable

19

STEERING LOCK ASSY

1TP-23408-00-00

Unavailable

20

BOLT

90109-08196-00

Unavailable

21

SCREW

90149-08002-00

Unavailable

22

CAP, HANDLE LOCK

1TP-23484-00-00

Unavailable
