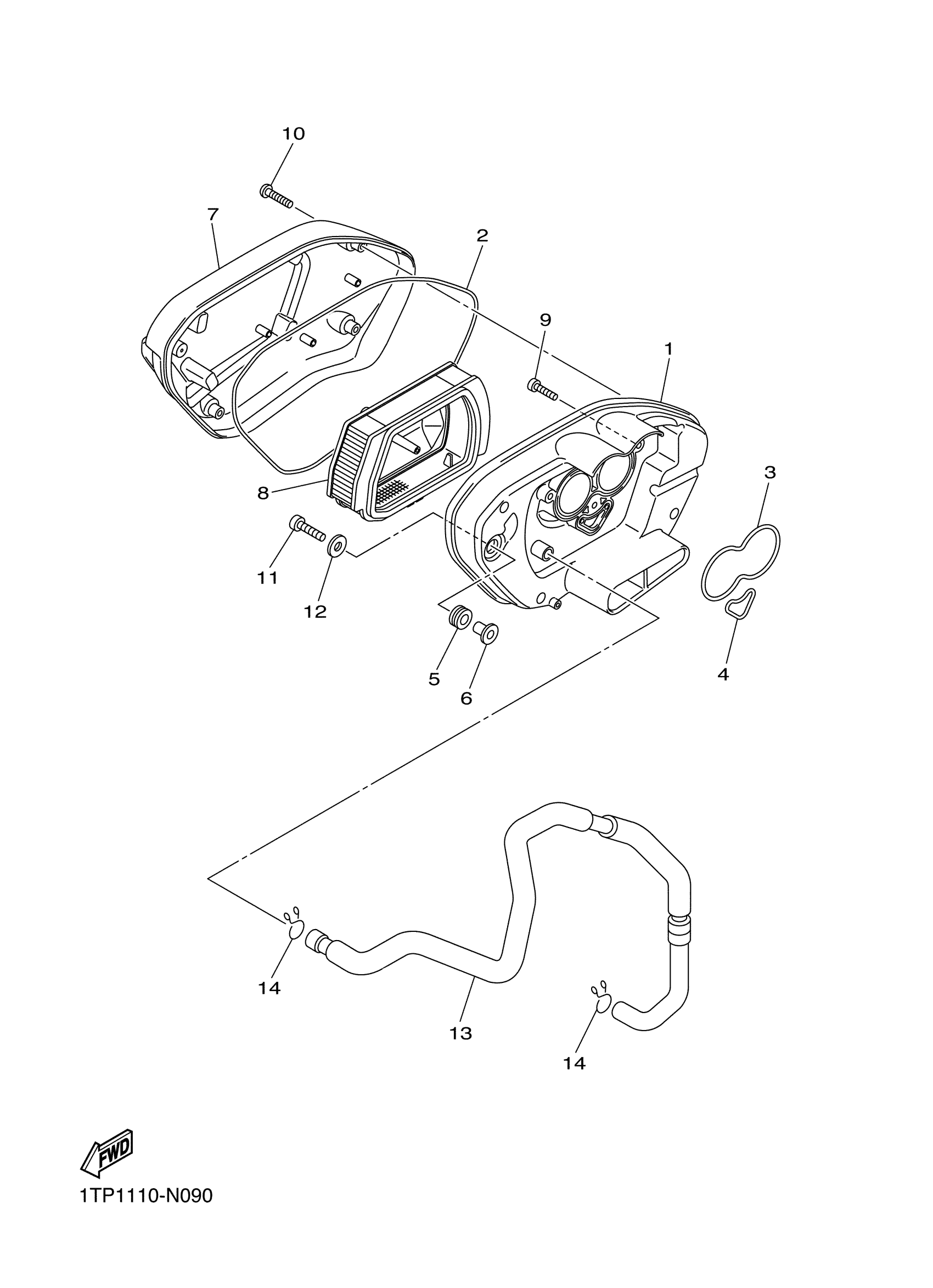

Yamaha XVS95CEW (BOLT) 1TP10 2014 INTAKE 2 Diagram

#

Description
Price

1

CASE, AIR CLEANER 1

1TP-14411-00-00

Unavailable

2

SEAL

1TP-14452-00-00

$19.99

3

SEAL

3D8-14457-00-00

$6.99

4

SEAL

3D8-14462-00-00

$6.99

5

GROMMET 839774310000

90480-14023-00

$7.49

6

COLLAR

90387-06158-00

$8.49

7

CAP ASSY, AIR CLEANER

1TP-14402-00-00

Unavailable

8

ELEMENT, AIR CLEANER

1TP-14451-00-00

$45.99

9

BOLT

91312-05025-00

$8.49

10

BOLT,HEX. SOCKET BUTTON

90111-05024-00

$4.19

11

BOLT,SOCKET

91317-06025-00

$5.60

12

WASHER PLATE 256216150000

90201-06062-00

$10.49

13

PIPE, BREATHER 1

1TP-11166-00-00

Unavailable

14

CLIP(62Y)

90467-15M14-00

Unavailable
