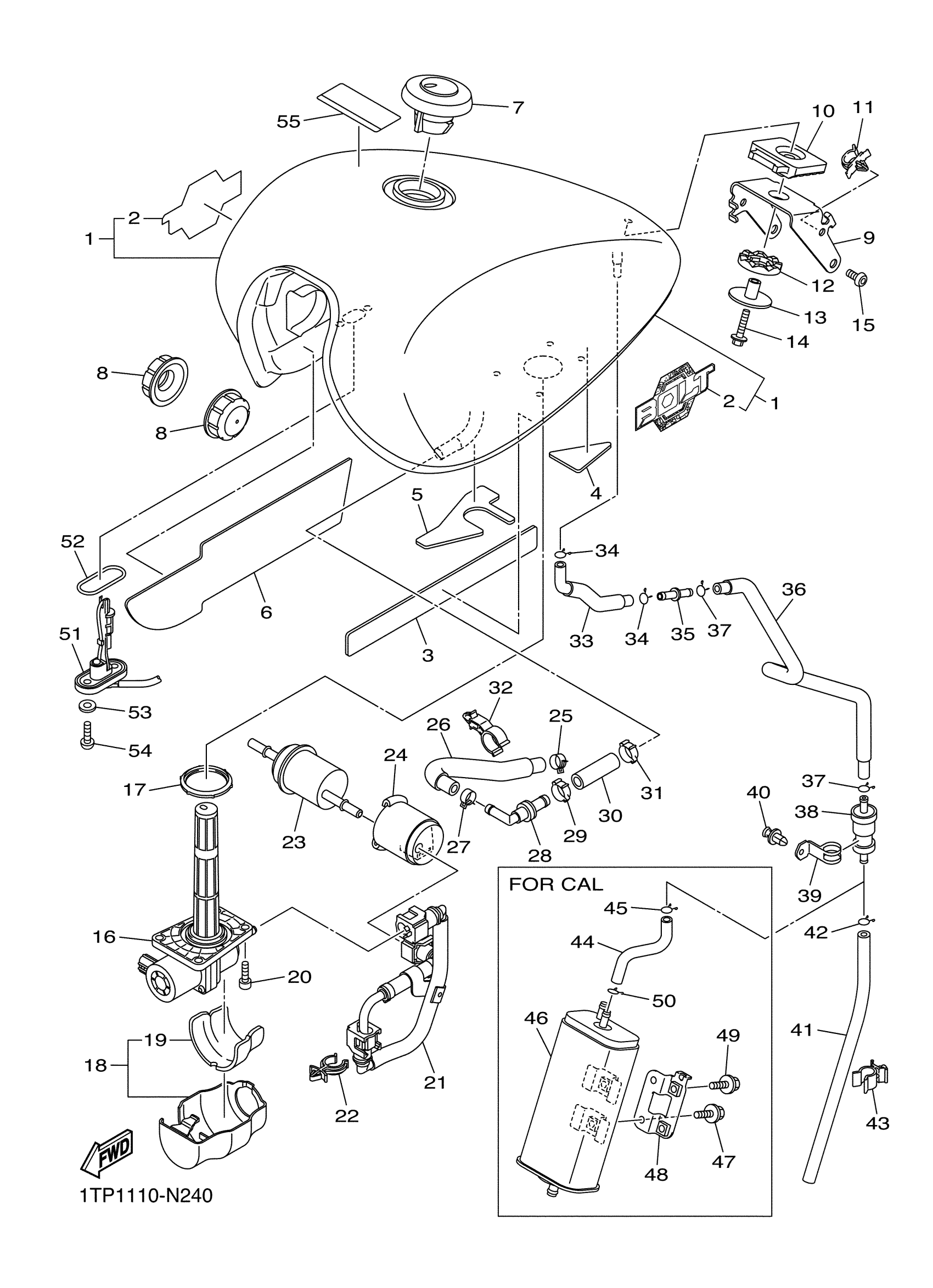

Yamaha XVS95CEW (BOLT) 1TP10 2014 FUEL TANK Diagram
#
1
FUEL TANK COMP.
1TP-WK241-01-P1
Unavailable
10
DAMPER, LOCATING 2
1TP-24182-00-00
Unavailable
11
CLAMP
90464-14001-00
Unavailable
12
DAMPER, LOCATING 3
1TP-24183-00-00
Unavailable
13
COLLAR
90387-06177-00
Unavailable
17
O-RING
1TP-24486-00-00
Unavailable
18
COVER
1TP-24474-01-00
Unavailable
19
DAMPER, PLATE 4
1TP-2414N-00-00
Unavailable
20
BOLT, SOCKET
91317-05016-00
Unavailable
21
FUEL PIPE ASSY
1TP-24330-01-00
Unavailable
22
CLAMP
90464-16240-00
Unavailable
23
FILTER
1TP-13915-00-00
Unavailable
24
BAND 1
1TP-24398-00-00
Unavailable
25
CLIP
90467-12003-00
Unavailable
26
PIPE 5
1TP-24315-01-00
Unavailable
27
CLIP
90467-12003-00
Unavailable
28
CHECK VALVE ASSY
1TP-14860-00-00
Unavailable
29
CLIP
90467-150A6-00
Unavailable
30
PIPE 4
1TP-24314-01-00
Unavailable
31
CLIP
90467-150A6-00
Unavailable
32
CLAMP
90464-17009-00
Unavailable
33
PIPE 3
1TP-24313-00-00
Unavailable
34
CLIP
90467-090A2-00
Unavailable
35
JOINT
4XY-14568-00-00
Unavailable
36
PIPE 6
1TP-24316-00-00
Unavailable
37
CLIP
90467-090A2-00
Unavailable
38
ROLL OVER VALVE ASSY
5PX-24180-00-00
Unavailable
39
CLAMP 2
1TP-24136-00-00
Unavailable
40
RIVET
90269-05005-00
Unavailable
41
HOSE (L400)
90445-116K9-00
Unavailable
42
CLIP
90467-090A2-00
Unavailable
43
CLAMP
90464-12015-00
Unavailable
51
SENDER UNIT ASSY, FUEL METER
1TP-85752-01-00
Unavailable
52
GASKET, SENDER UNIT
42X-85753-00-00
Unavailable
53
WASHER, PLATE(3MB)
90202-05187-00
Unavailable
54
SCREW
90149-06108-00
Unavailable
55
LABEL, CAUTION
1TP-2118K-01-00
Unavailable
