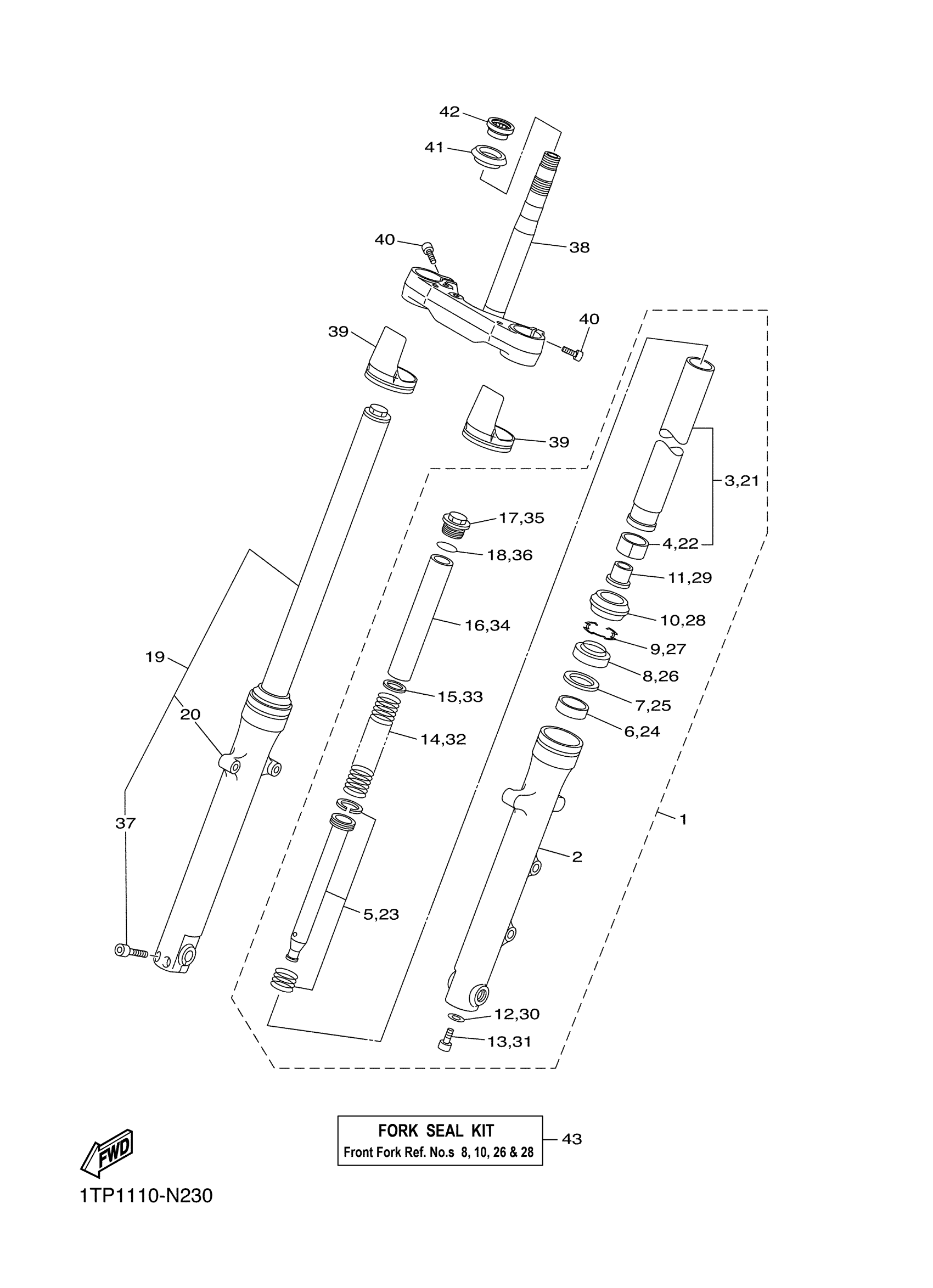

Yamaha XVS95CEW (BOLT) 1TP10 2014 FRONT FORK Diagram

#

Description
Price

1

FRONT FORK ASSY (L

1TP-23102-01-00

Unavailable

2

TUBE, OUTER (L.H)

1TP-23126-01-00

Unavailable

3

INNER TUBE COMP.1

1TP-23110-01-00

Unavailable

4

METAL, SLIDE

4FM-23171-40-00

$23.99

5

CYLINDER COMP., FR

1TP-23170-01-00

$58.99

6

METAL, SLIDE 1

4FM-23125-40-00

$33.99

7

WASHER, OIL SEAL

36Y-23146-10-00

$27.99

8

OIL SEAL

4EB-23145-01-00

$28.99

9

CLIP, OIL SEAL

26H-23156-00-00

$7.99

10

SEAL, DUST

4EB-23144-00-00

$22.99

11

SPINDLE, TAPER

1TP-23173-00-00

Unavailable

12

GASKET

509-23158-L0-00

$16.49

13

BOLT, HEXAGON SOCKET HEAD

3D8-23181-00-00

$8.99

14

SPRING, FRONT FORK

1TP-23141-01-00

Unavailable

15

WASHER, SPRING UPPER

1TP-23149-00-00

$4.06

16

SPACER

1TP-23118-00-00

Unavailable

17

BOLT, CAP

1D0-23111-00-00

Unavailable

18

O-RING

1TP-23188-01-00

Unavailable

19

FRONT FORK ASSY (R

1TP-23103-01-00

Unavailable

20

TUBE, OUTER

1TP-23136-01-00

Unavailable

21

INNER TUBE COMP.1

1TP-23110-01-00

Unavailable

22

METAL, SLIDE

4FM-23171-40-00

$23.99

23

CYLINDER COMP., FR

1TP-23170-01-00

$58.99

24

METAL, SLIDE 1

4FM-23125-40-00

$33.99

25

WASHER, OIL SEAL

36Y-23146-10-00

$27.99

26

OIL SEAL

4EB-23145-01-00

$28.99

27

CLIP, OIL SEAL

26H-23156-00-00

$7.99

28

SEAL, DUST

4EB-23144-00-00

$22.99

29

SPINDLE, TAPER

1TP-23173-00-00

Unavailable

30

GASKET

509-23158-L0-00

$16.49

31

BOLT, HEXAGON SOCKET HEAD

3D8-23181-00-00

$8.99

32

SPRING, FRONT FORK

1TP-23141-01-00

Unavailable

33

WASHER, SPRING UPPER

1TP-23149-00-00

$4.06

34

SPACER

1TP-23118-00-00

Unavailable

35

BOLT, CAP

1D0-23111-00-00

Unavailable

36

O-RING

1TP-23188-01-00

Unavailable

37

BOLT, SOCKET

91314-08035-00

Unavailable

38

UNDER BRACKET COMP.

1TP-23340-01-00

Unavailable

39

COVER

4PU-2331G-00-00

Unavailable

40

BOLT,SOCKET

91314-10020-00

Unavailable

41

SEAL, STEERING

3FV-23462-00-00

Unavailable

42

BEARING(3FV)

93399-99932-00

Unavailable

43

FORK SEAL KIT (TWO FORKS)

4EB-W003B-00-00

Unavailable
