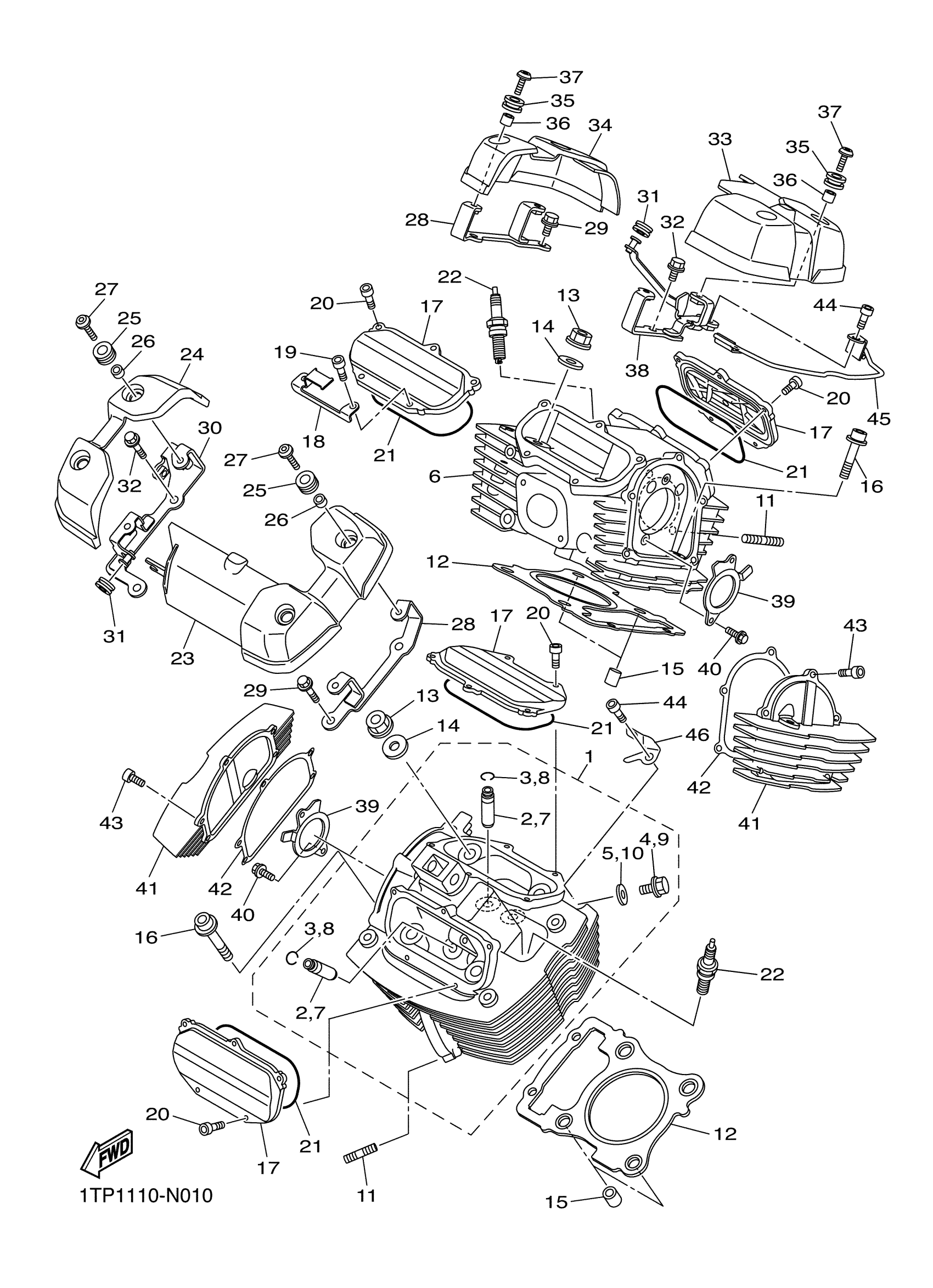

Yamaha XVS95CEW (BOLT) 1TP10 2014 CYLINDER HEAD Diagram

#

Description
Price

1

CYLINDER HEAD ASSY

5S7-11101-18-00

Unavailable

2

GUIDE, INTAKE VALVE

4G0-11133-11-00

$49.99

3

CIRCLIP (4G0)

93440-10085-00

$8.49

4

BOLT, FLANGE

95022-08012-00

$12.49

5

GASKET

90430-08119-00

$6.62

6

CYLINDER HEAD ASSY

5S7-11101-38-00

$1,037.99

7

GUIDE, INTAKE VALVE

4G0-11133-11-00

$49.99

8

CIRCLIP (4G0)

93440-10085-00

$8.49

9

BOLT, FLANGE

95022-08012-00

$12.49

10

GASKET

90430-08119-00

$6.62

11

BOLT, STUD

95612-08625-00

$7.49

12

GASKET, CYLINDER HEAD 1

5S7-11181-00-00

$56.99

13

Nut

90179-12004-00

$7.49

14

WASHER, PLATE

90201-12025-00

Unavailable

15

PIN, DOWEL(MH0)

91815-16017-00

$8.49

16

BOLT, HEXAGON SOCKET HEAD

90110-08065-00

Unavailable

17

COVER, CYLINDER HEAD SIDE 2

5S7-11186-00-00

Unavailable

18

PLATE 4

1TP-1114F-00-00

Unavailable

19

BOLT,SOCKET

91317-06018-00

Unavailable

20

BOLT(3MA)

91312-06016-00

Unavailable

21

GASKET, CYLINDER HEAD SIDE

5S7-11196-00-00

Unavailable

22

PLUG, SPARK (NGK CPR7EA)

CPR-7EA90-00-00

Unavailable

23

COVER 1

1TP-1111M-00-00

Unavailable

24

COVER 2

1TP-1111N-00-00

Unavailable

25

GROMMET

90480-13022-00

Unavailable

26

COLLAR

90387-06207-00

Unavailable

27

BOLT,HEX. SOCKET BUTTON

90111-06130-00

Unavailable

28

PLATE

1TP-1111F-00-00

Unavailable

29

BOLT, FLANGE(8AB)

95817-08020-00

Unavailable

30

PLATE 2

1TP-1112F-00-00

Unavailable

31

GROMMET

90480-10627-00

Unavailable

32

BOLT, FLANGE(8AB)

95817-08020-00

Unavailable

33

COVER 3

1TP-1111P-00-00

Unavailable

34

COVER 4

1TP-1111R-00-00

Unavailable

35

GROMMET

90480-13022-00

Unavailable

36

COLLAR

90387-06207-00

Unavailable

37

BOLT,HEX. SOCKET BUTTON

90111-06130-00

Unavailable

38

PLATE 3

1TP-1113F-00-00

Unavailable

39

PLATE

5S7-1111F-00-00

Unavailable

40

BOLT, FLANGE

95022-06012-00

Unavailable

41

COVER, CYLINDER HEAD SIDE 1

5S7-11185-00-00

Unavailable

42

GASKET

5S7-11195-00-00

Unavailable

43

BOLT,SOCKET HEAD

91314-06020-00

Unavailable

44

BOLT, SOCKET

91317-08016-00

Unavailable

45

BRACKET, CYLINDER HEAD COVER

1TP-11152-00-00

Unavailable

46

STAY

1TP-24364-00-00

Unavailable
