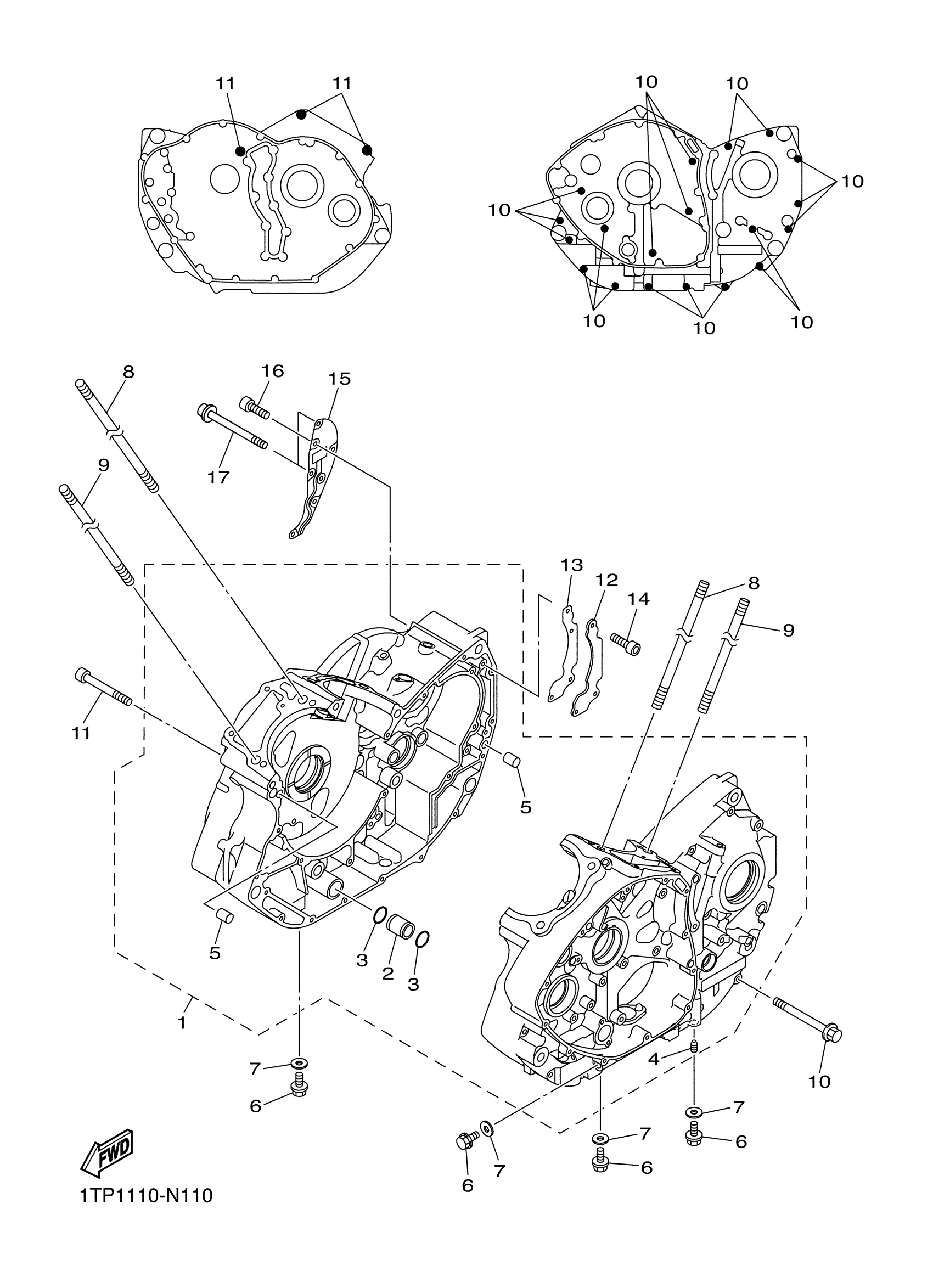

Yamaha XVS95CEW (BOLT) 1TP10 2014 CRANKCASE Diagram
#
Description
Price
1
CRANKCASE ASSY
5S7-15100-09-00
Unavailable
4
NOZZLE 1
2H7-15138-00-00
Unavailable
8
BOLT, STUD
90116-12012-00
Unavailable
9
BOLT, STUD
90116-12011-00
Unavailable
10
BOLT, FLANGE
90105-06144-00
Unavailable
11
BOLT, HEXAGON SOCKET HEAD
90110-10030-00
Unavailable
12
SEPARATOR, OIL
3D8-15358-00-00
Unavailable
13
GASKET, DRAIN
3D8-15353-00-00
Unavailable
15
SEPERATOR, OIL
3D8-15368-00-00
Unavailable
17
BOLT, HEXAGON SOCKET HEAD
90110-06250-00
Unavailable
