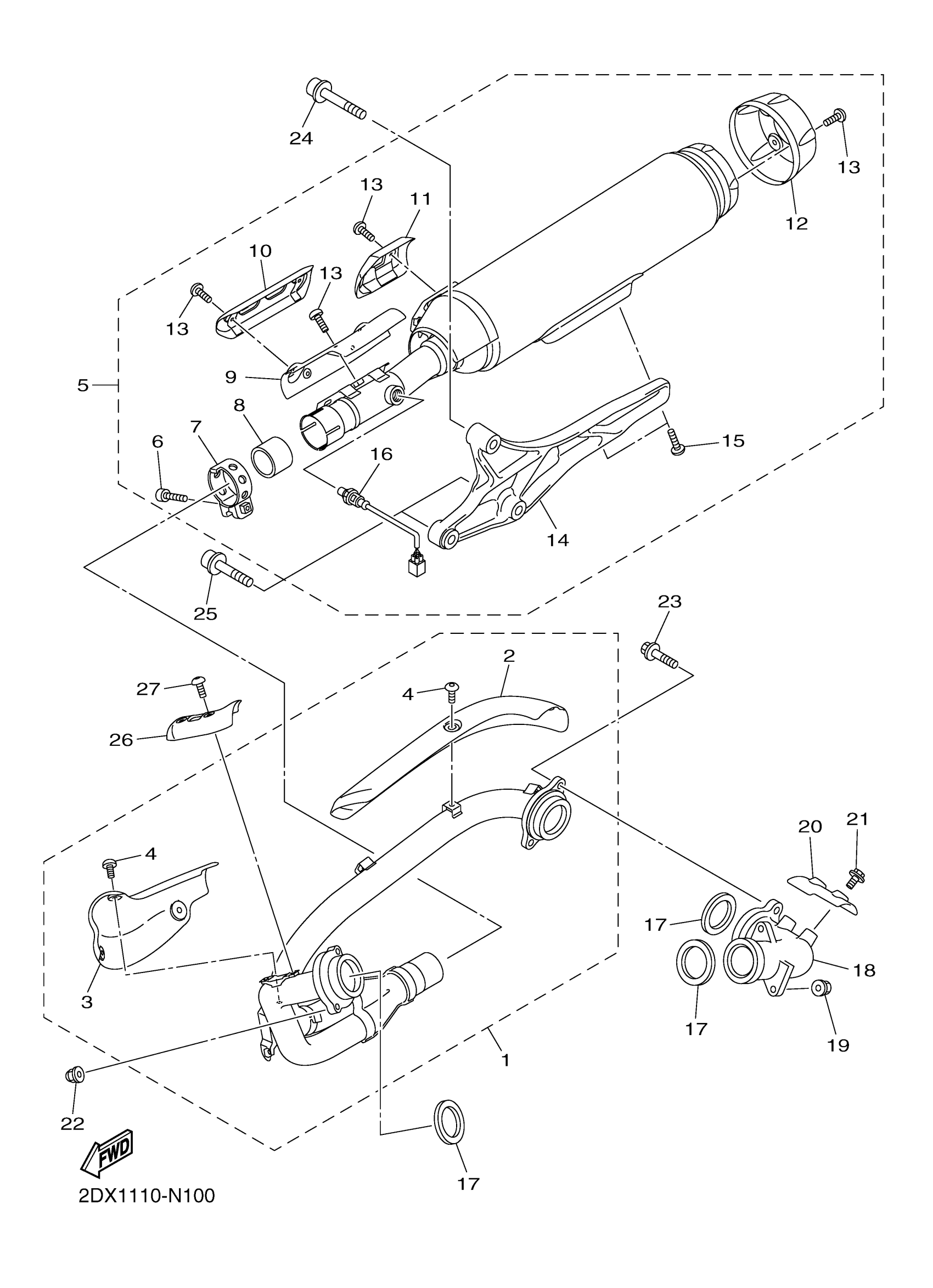

Yamaha XVS95CEGY (BOLT R SPEC) 2DX10 2014 EXHAUST Diagram

#

Description
Price

1

EXHAUST PIPE ASSY

1TP-14610-01-00

$453.99

2

PLATE, PROTECTOR 2

1TP-1465T-01-00

$184.99

3

PLATE, PROTECTOR 3

1TP-1465U-00-00

Unavailable

4

BOLT,HEX. SOCKET BUTTON

90111-06148-00

$2.39

5

MUFFLER ASSY 1

1TP-14710-03-00

$1,367.99

6

BOLT,SOCKET

91314-08040-00

$8.49

7

BAND, MUFFLER

5S7-14715-00-00

Unavailable

8

GASKET, SILENCER

5YU-14755-00-00

$30.99

9

PROTECTOR, MUFFLER 2

1TP-14728-00-00

Unavailable

10

PROTECTOR, MUFFLER 3

1TP-14738-00-00

Unavailable

11

PROTECTOR, MUFFLER 4

1TP-14748-00-00

Unavailable

12

CAP

1TP-14799-01-00

Unavailable

13

BOLT,HEX. SOCKET BUTTON

90111-06148-00

$2.39

14

STAY, MUFFLER 2

1TP-14772-00-00

Unavailable

15

BOLT

90111-10006-00

$5.49

16

SENSOR

5D1-8592A-00-00

Unavailable

17

GASKET, EXHAUST PIPE

3EG-14613-00-00

Unavailable

18

JOINT, EXHAUST 1

1TP-14615-00-00

Unavailable

19

NUT, CROWN

90176-08012-00

Unavailable

20

PLATE, SILENCER 3

1TP-1468W-00-00

Unavailable

21

BOLT, FLANGE(7HT)

95880-06010-00

Unavailable

22

NUT, CROWN

90176-08006-00

Unavailable

23

BOLT, FLANGE

90105-08251-00

Unavailable

24

BOLT, HEXAGON SOCKET HEAD

90110-10042-00

Unavailable

25

BOLT, HEXAGON SOCKET HEAD

90110-10038-00

Unavailable

26

PLATE, PROTECTOR 1

1TP-1465R-01-00

Unavailable

27

BOLT,HEX. SOCKET BUTTON

90111-06148-00

$2.39
