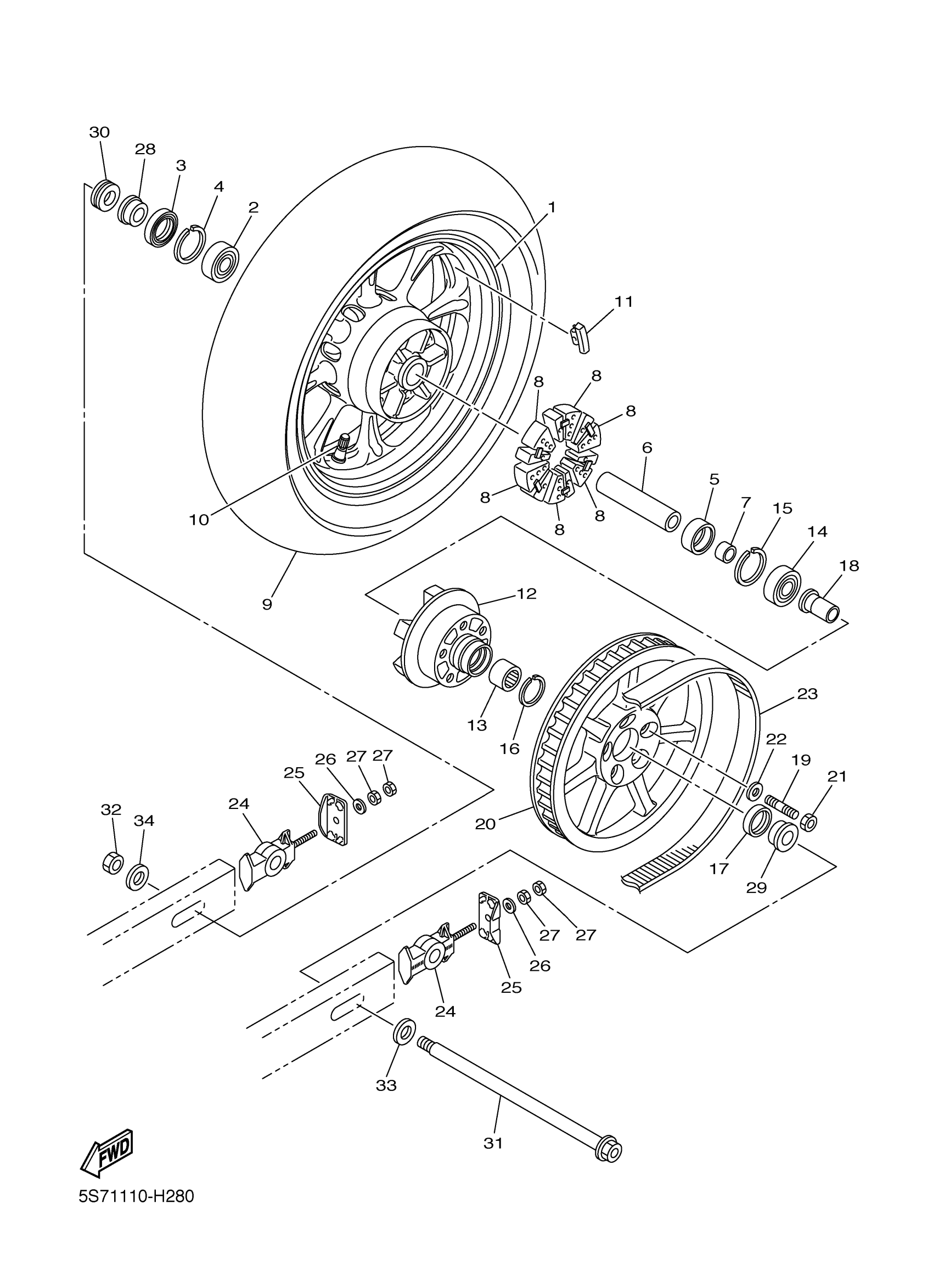

Yamaha XVS95BS (V STAR 950) 5S7A0 2012 REAR WHEEL Diagram

#

Description
Price

1

CAST WHEEL, REAR

5S7-25338-01-00

Unavailable

2

BEARING(3BC)

93306-30437-00

$53.30

3

OIL SEAL

93106-28001-00

Unavailable

4

CIRCLIP(26H)

99009-52500-00

$10.02

5

BEARING

93320-32811-00

$37.42

6

SPACER, BEARING

3D8-25317-00-00

$21.09

7

COLLAR, WHEEL

1D7-25383-00-00

$48.90

8

DAMPER

4WM-25364-00-00

Unavailable

9

TIRE (170/70B16M/C 75H K555)

94117-16001-00

$359.77

9

TIRE (170/70B16M/C 75H EXEDR)

94117-16009-00

$385.36

10

VALVE, RIM(2GH)

93900-00030-00

$13.50

11

BALANCER, WHEEL

5MT-25398-00-00

$14.51

11

BALANCER, WHEEL

5MT-25398-10-00

$14.35

11

BALANCER, WHEEL

5MT-25398-20-00

Unavailable

12

CLUTCH, HUB

3D8-25366-20-00

$240.35

13

BEARING

93311-32698-00

Unavailable

14

BEARING(3BC)

93306-30437-00

$53.30

15

CIRCLIP(26H)

99009-52500-00

$10.02

16

CIRCLIP

93450-35163-00

Unavailable

17

OIL SEAL (30X42X8-102)

93106-30004-00

Unavailable

18

COLLAR, WHEEL

3D8-25376-00-00

Unavailable

19

BOLT, STUD

95612-12630-00

Unavailable

20

SPROCKET, DRIVEN (70T)

3D8-25470-01-00

Unavailable

21

NUT, U

95614-12100-00

Unavailable

22

WASHER, PLATE

90201-12045-00

Unavailable

23

V-BELT

5S7-46241-10-00

Unavailable

24

PULLER, CHAIN 1

5S7-25388-00-00

Unavailable

25

PLATE 1

5S7-2539F-00-00

Unavailable

26

.. WASHER, PLATE

92990-08600-00

$2.17

27

NUT(2UJ)

95304-08600-00

Unavailable

28

COLLAR

90387-20033-00

Unavailable

29

COLLAR(3BC)

90387-202X9-00

Unavailable

30

COLLAR, CALIPER

5S7-2583B-00-00

Unavailable

31

AXLE, WHEEL

5S7-25381-00-00

Unavailable

32

NUT, SELF-LOCKING

90185-18009-00

Unavailable

33

WASHER, PLATE

90201-20029-00

Unavailable

34

WASHER, PLATE

90201-18029-00

Unavailable
