2012 Yamaha V Star 950 (XVS95BS) Front Fork Diagram

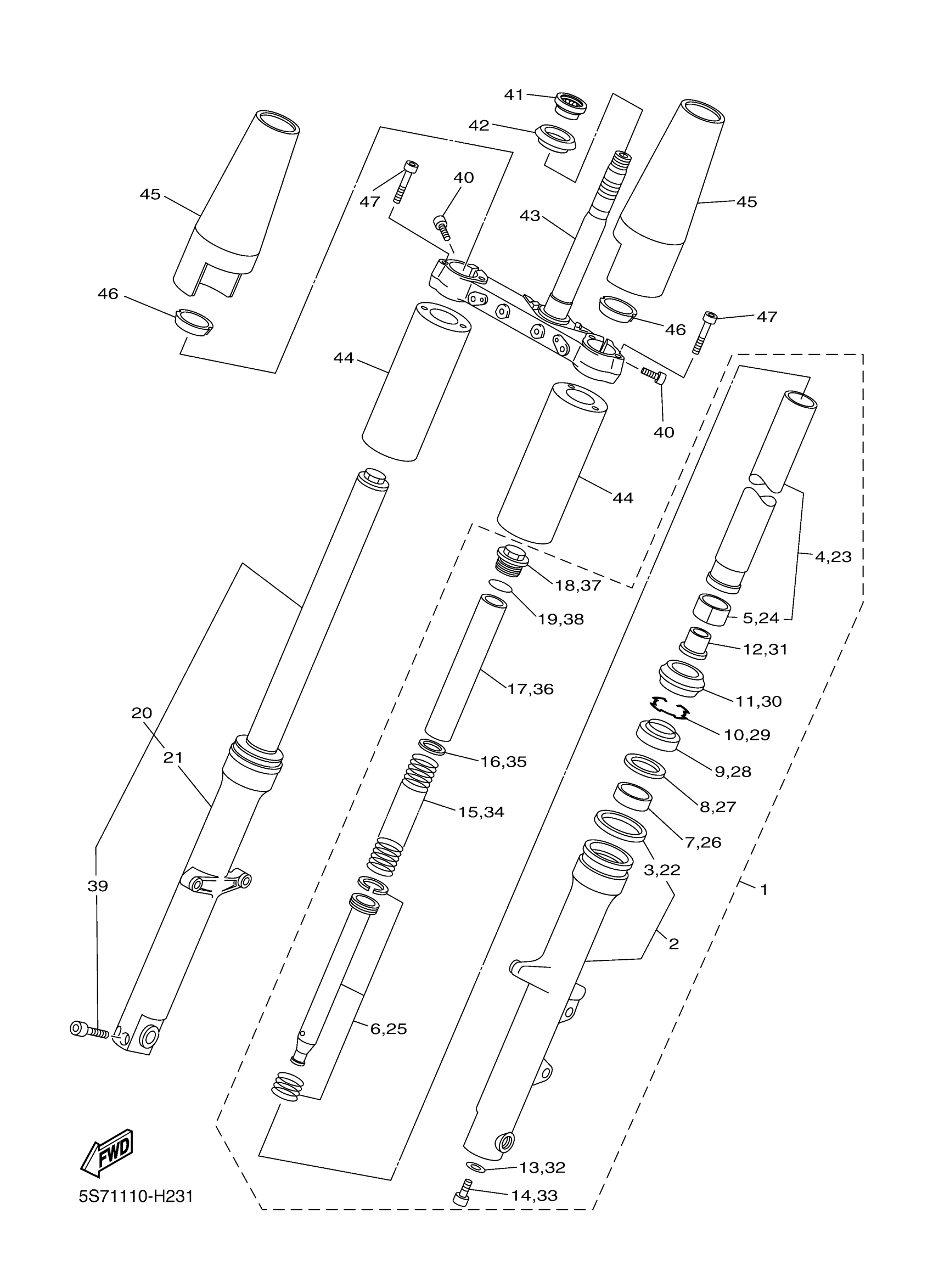

Find the part on the Front Fork diagram for your 2012 Yamaha V Star 950 (XVS95BS), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.
#
1
FRONT FORK ASSY (L.H)
5S7-23102-01-00
2
TUBE, OUTER (LEFT)
5S7-23126-00-00
3
GUIDE, BOOT
5BN-23193-00-00
4
INNER TUBE COMP.1
3D8-23110-00-00
6
CYLINDER COMP., FRONT FORK
5S7-23170-00-00
15
SPACER
5EL-23118-00-00
15
SPRING, FRONT FORK
5S7-23141-00-00
20
FRONT FORK ASSY (R.H)
5S7-23103-01-00
21
TUBE, OUTER (RIGHT)
5S7-23136-00-00
22
GUIDE, BOOT
5BN-23193-00-00
23
INNER TUBE COMP.1
3D8-23110-00-00
25
CYLINDER COMP., FRONT FORK
5S7-23170-00-00
34
SPRING, FRONT FORK
5S7-23141-00-00
36
SPACER
5EL-23118-00-00
39
BOLT, SOCKET
91314-08035-00
43
UNDER BRACKET COMP.
5S7-23340-01-00
44
COVER, LOWER 1
3D8-23123-00-00
45
COVER, UPPER 1
3D8-23121-00-00
46
GASKET
3D8-23163-00-00
47
BOLT, SPECIAL
3D8-23394-20-00
