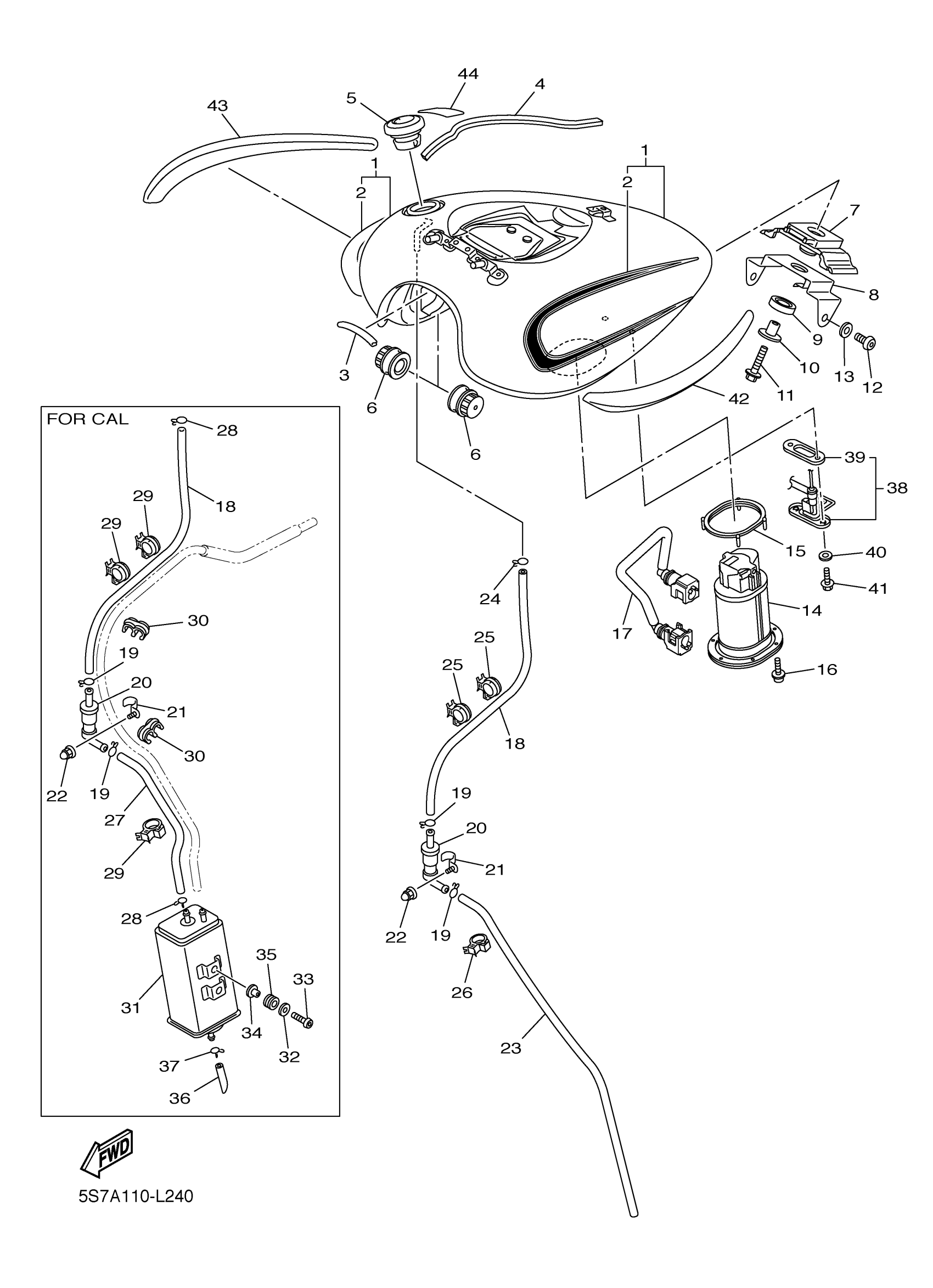

Yamaha XVS95BS (V STAR 950) 5S7A0 2012 FUEL TANK Diagram
#
2
GRAPHIC SET
5S7-24240-70-00
Unavailable
3
MOLD, FUEL TANK
1HX-24188-01-00
Unavailable
6
DAMPER, LOCATING 1
5S7-24181-00-00
Unavailable
7
DAMPER, LOCATING 2
5S7-24182-00-00
Unavailable
8
BRACKET, TANK FITTING
5S7-2413Y-00-00
Unavailable
10
COLLAR
90387-06177-00
Unavailable
13
. WASHER, PLATE
90201-08M01-00
Unavailable
15
O-RING
5VN-24486-00-00
Unavailable
16
BOLT, HEXAGON SOCKET HEAD
90110-05028-00
Unavailable
17
PIPE, FUEL 1
5S7-13971-01-00
Unavailable
18
PIPE 3
5S7-24313-00-00
Unavailable
19
CLIP
90467-090A2-00
Unavailable
20
ROLL OVER VALVE ASSY
5RB-24180-00-00
Unavailable
21
CLAMP 2
5S7-24136-00-00
Unavailable
22
NUT, CROWN
90176-05004-00
Unavailable
27
PIPE 1
5S7-2486A-00-00
Unavailable
28
CLIP
90467-090A2-00
Unavailable
29
CLAMP(4GY)
90464-20191-00
Unavailable
30
CLAMP
90464-10M57-00
Unavailable
31
CANISTER ASSY
5PX-24170-00-00
Unavailable
32
WASHER, PLATE 8221447500
90201-06057-00
Unavailable
33
BOLT
90111-06046-00
Unavailable
34
COLLAR(42G)
90387-062L2-00
Unavailable
35
GROMMET (1E5)
90480-13163-00
Unavailable
36
PIPE 14
3D8-24325-00-00
Unavailable
37
CLIP
90467-100A1-00
Unavailable
38
SENDER UNIT ASSY, FUEL METER
5S7-85752-11-00
Unavailable
39
GASKET, SENDER UNIT
3D8-85753-00-00
Unavailable
40
WASHER, PLATE(3MB)
90202-05187-00
Unavailable
41
BOLT, FLANGE
95817-06016-00
Unavailable
42
EMBLEM 3D SET
5S7-2416C-00-00
Unavailable
43
EMBLEM 3D SET
5S7-2417C-00-00
Unavailable
44
LABEL, CAUTION
5GK-2118K-00-00
Unavailable
