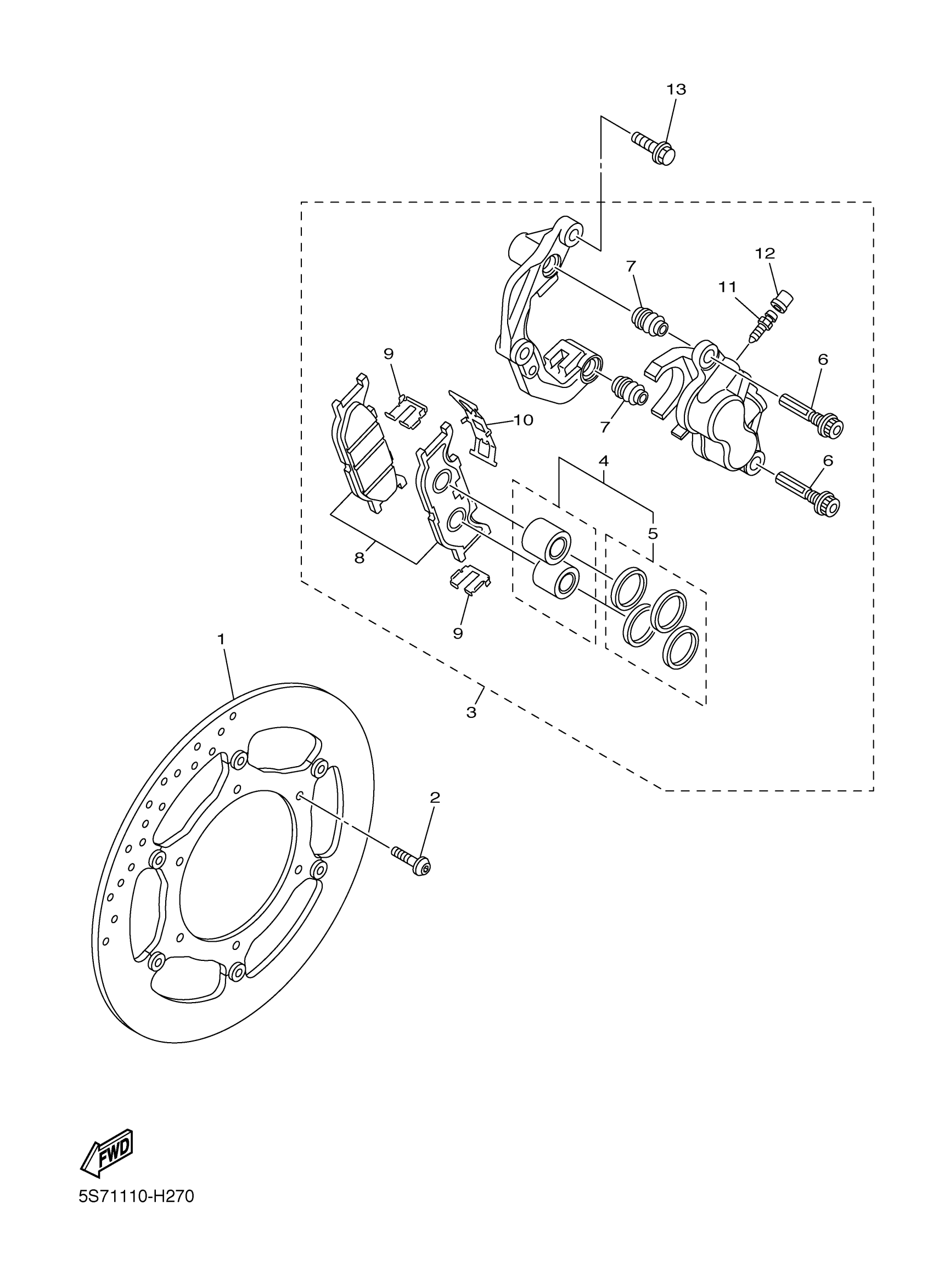

Yamaha XVS95BS (V STAR 950) 5S7A0 2012 FRONT BRAKE CALIPER Diagram

#

Description
Price

1

DISK BRAKE ASSY

3P6-2581T-01-00

$346.99

2

BOLT,HEX. SOCKET BUTTON

90111-08057-00

$5.60

3

CALIPER ASSY (LEFT)

5S7-2580T-00-00

Unavailable

4

PISTON ASSY, CALIPER

3YX-W0057-00-00

Unavailable

5

CALIPER SEAL KIT

3JB-25803-00-00

$45.99

6

PIN, SLIDE

5JW-25914-10-00

$22.99

7

BOOT 2

4TT-25937-00-00

$16.49

8

BRAKE PAD KIT

5S7-25805-00-00

$79.99

9

SUPPORT, PAD

4BP-25919-00-00

$44.99

10

SPRING, ANTI RATTLE

3YX-25929-00-00

Unavailable

11

SCREW, BLEED

47X-25824-01-00

$14.49

12

CAP

1D7-25825-00-00

$7.99

13

BOLT, WASHER BASED(3VD)

90105-10638-00

$7.49
