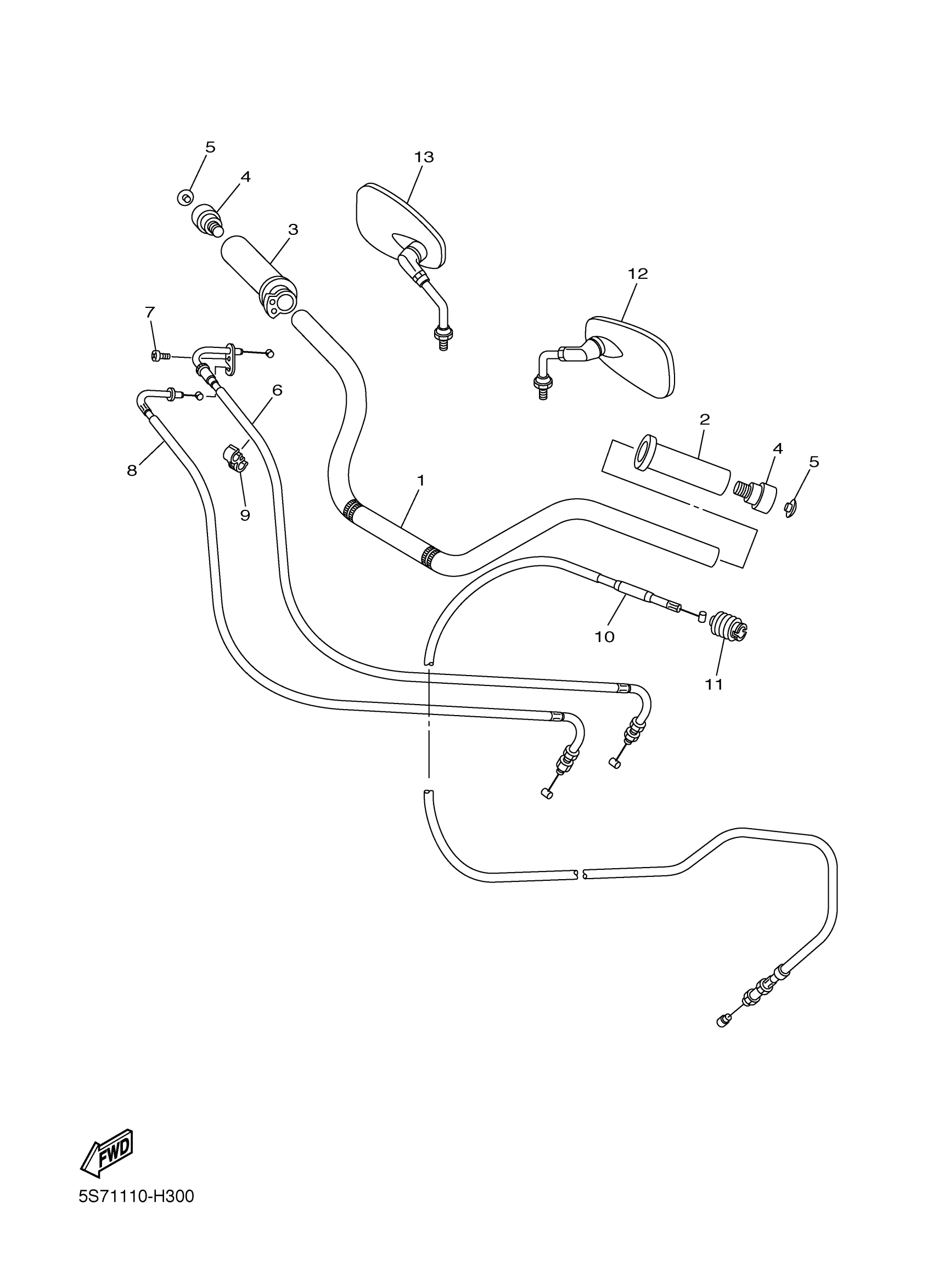

Yamaha XVS95AL (V STAR 950) 5S770 2011 STEERING HANDLE CABLE Diagram

#

Description
Price

1

HANDLEBAR

5S7-26111-00-00

$179.99

2

GRIP

4NK-26241-01-00

Unavailable

3

GRIP ASSY

4XY-26240-00-00

$91.99

4

END, GRIP

5EL-26246-00-00

$46.99

5

PLUG(42X)

90338-10164-00

$9.49

6

CABLE, THROTTLE 1

5S7-26311-00-00

Unavailable

7

SCREW, PAN HEAD(JJ6)

98507-05016-00

$2.18

8

CABLE, THROTTLE 2

5S7-26312-00-00

Unavailable

9

CLAMP(4KB)

90464-06214-00

$3.61

10

CABLE, CLUTCH

5S7-26335-00-00

Unavailable

11

BOOT, WIRE

1E6-26342-00-00

$30.99

12

REAR VIEW MIRROR ASSY (LEFT)

4XY-26280-10-00

$115.99

13

REAR VIEW MIRROR ASSY (RIGHT)

4XY-26290-10-00

$115.99
