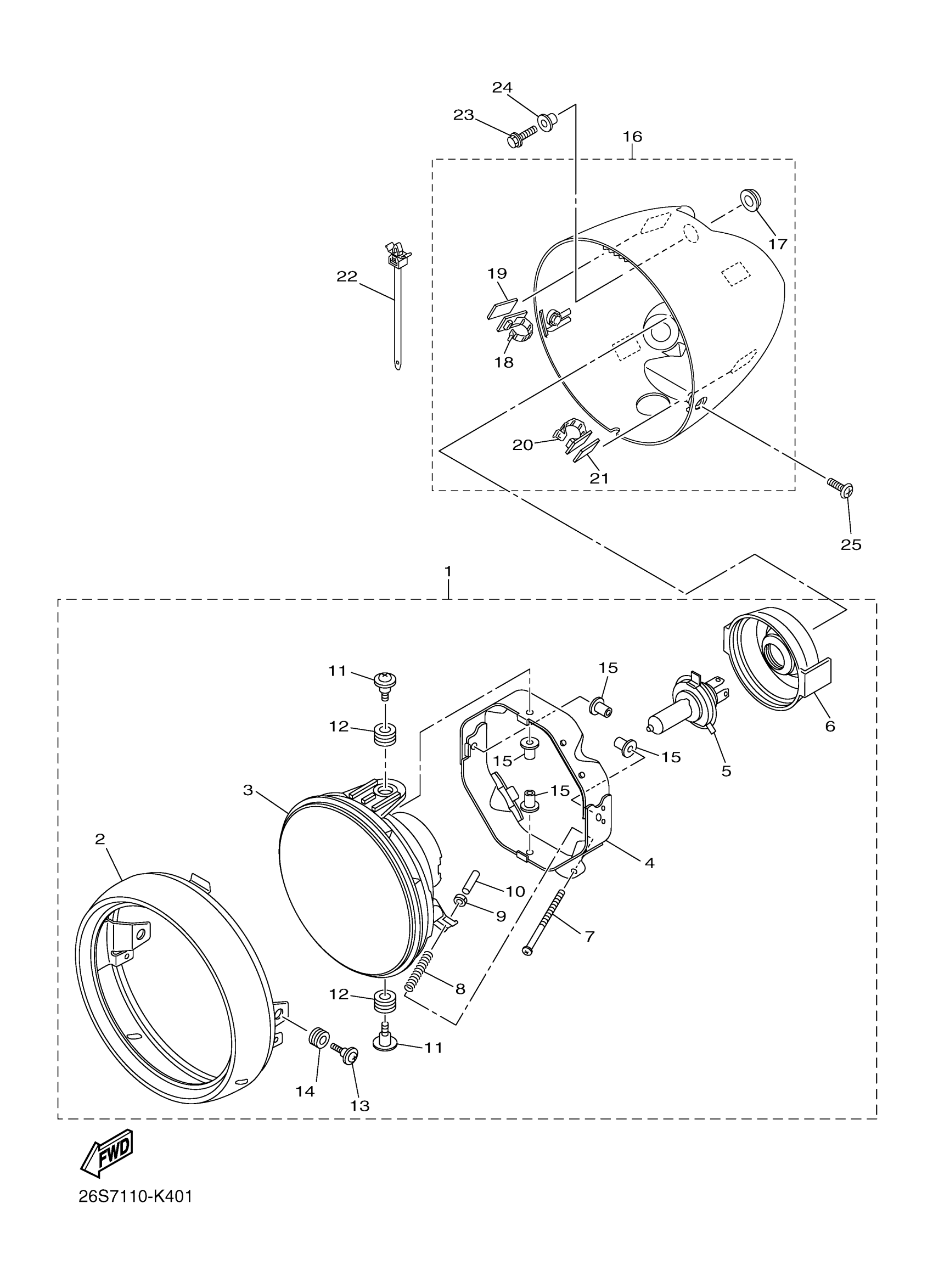

Yamaha XVS95AL (V STAR 950) 5S770 2011 HEADLIGHT Diagram

#

Description
Price

1

HEADLIGHT UNIT ASSY

5S7-84310-00-00

$450.81

2

RIM, HEADLIGHT

5S7-84315-00-00

$79.03

3

LENS ASSY

5PX-84320-00-00

$178.70

4

STAY, HEADLIGHT 1

5PX-84318-00-00

$59.73

5

BULB, HEADLIGHT

8V0-84314-10-00

$57.75

6

COVER, SOCKET

5PX-84397-00-00

$33.03

7

SCREW, RIM ADJUSTING

5PX-84331-00-00

$6.19

8

SPRING, SCREW

5PX-84332-00-00

$6.19

9

NUT, ADJUSTING

5PX-84334-00-00

$6.19

10

CAP,1

5PX-84385-00-00

$6.19

11

SCREW, RIM FITTING

5PX-84325-00-00

$6.24

12

GROMMET

5PX-84354-00-00

$4.76

13

SCREW, RIM FITTING

5PX-84125-00-00

$5.99

14

GROMMET

5PX-84352-00-00

$5.69

15

NUT

5PX-84317-00-00

$9.90

16

BODY ASSY

5S7-84330-00-P0

Unavailable

17

DAMPER, HEADLIGHT 1

42X-84366-00-00

Unavailable

18

CLAMP

90464-20020-00

Unavailable

19

SEAL

5S7-28307-00-00

Unavailable

20

CLAMP

90464-17002-00

Unavailable

21

SEAL 1

5S7-28428-00-00

Unavailable

22

CLAMP

90465-13M76-00

$3.21

23

BOLT, FLANGE

95022-06025-00

Unavailable

24

COLLAR

90387-06175-00

Unavailable

25

SCREW, BIND(4DN)

98980-05014-00

Unavailable
