2011 Yamaha V Star 950 (XVS95AL) Electrical 2 Diagram

← All diagrams

Find the part on the Electrical 2 diagram for your 2011 Yamaha V Star 950 (XVS95AL), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

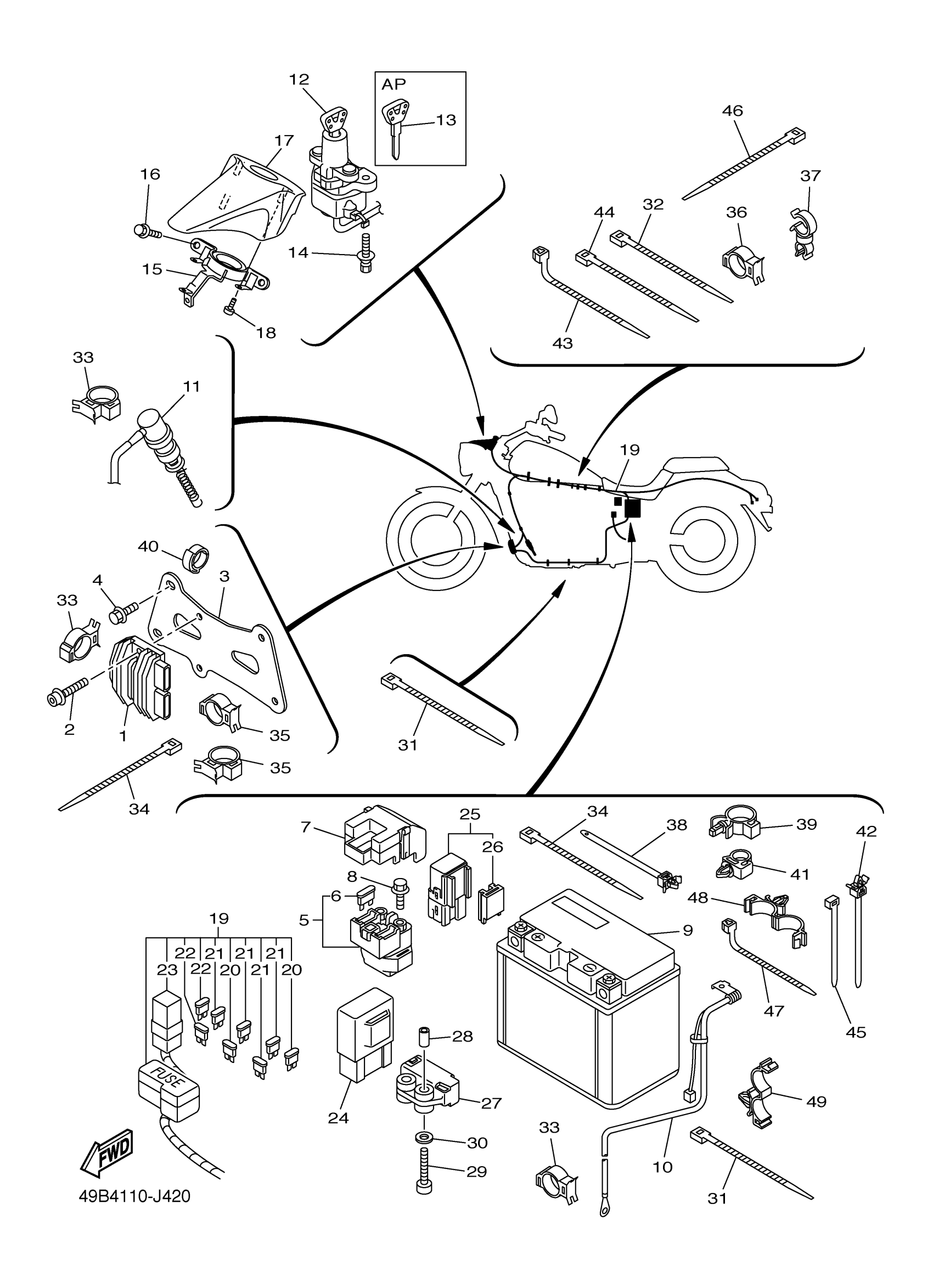

2011 Yamaha V Star 950 (XVS95AL) Electrical 2 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

RECTIFIER & REGULATOR ASSY

27D-81960-00-00

—
Out of stock

2

BOLT, HEXAGON SOCKET HEAD

90110-06263-00

—
Out of stock

3

BRACKET, REGULATOR

5S7-2128A-00-00

—
Out of stock

4

BOLT, WASHER BASED

90105-08021-00

1
Out of stock

5

STARTER RELAY ASSY (RC19-089A)

5S7-81940-00-00

1
Out of stock

6

FUSE (10A)

42X-82151-00-00

1
Out of stock

7

COVER, LEAD WIRE

5SL-82119-10-00

1
Out of stock

8

BOLT, FLANGE

95022-06008-00

1
Out of stock

9

BATTERY YTZ14S

YTZ-14S00-00-00

1
Out of stock

10

WIRE, MINUS LEAD

5S7-82116-00-00

—
Out of stock

11

STOP SWITCH ASSY

5S7-82530-00-00

—
Out of stock

12

MAIN SWITCH STEERING LOCK

3D8-82501-02-00

1
Out of stock

13

BLANK KEY

4BH-82511-09-00

1
Out of stock

14

BOLT

90109-08196-00

1
Out of stock

15

BRACKET 1

5S7-2334G-00-00

—
Out of stock

16

BOLT, FLANGE

90105-06090-00

—
Out of stock

17

COVER, MAIN SWITCH

5S7-82568-00-00

—
Out of stock

18

SCREW, TRUSS TAP.

97707-40016-00

—
Out of stock

19

WIRE HARNESS ASSY

5S7-82590-00-00

—
Out of stock

20

FUSE (15A)

67F-82151-50-00

1
Out of stock

21

. FUSE (10A)

67F-82151-40-00

1
Out of stock

22

FUSE

5JJ-82151-20-00

—
Out of stock

23

SLOW BLOW FUSE

JR9-82151-00-00

—
Out of stock

24

RELAY ASSY

5VK-81950-33-00

—
Out of stock

25

RELAY ASSY (5EA-02)

5EA-81950-20-00

—
Out of stock

26

HOLDER,RELAY

5EA-81952-00-00

—
Out of stock

27

SENSOR, LEAN ANGLE

5VU-82576-03-00

—
Out of stock

28

HOSE (L200)

90445-05N13-00

—
Out of stock

29

BOLT

91312-04025-00

—
Out of stock

30

WASHER, PLATE

90201-04027-00

—
Out of stock

31

BAND

1UA-82591-00-00

—
Out of stock

32

BAND

1UA-82591-00-00

—
Out of stock

33

CLAMP(4GY)

90464-10190-00

—
Out of stock

34

BAND

3MA-82591-00-00

—
Out of stock

35

CLAMP(4GY)

90464-20191-00

—
Out of stock

36

CLAMP(4KM)

90464-25217-00

—
Out of stock

37

CLAMP

90464-20004-00

—
Out of stock

38

CLAMP(2TV)

90464-10112-00

—
Out of stock

39

CLAMP

90464-16012-00

—
Out of stock

40

CLAMP

90464-16003-00

—
Out of stock

41

CLAMP

90464-10008-00

—
Out of stock

42

CLAMP(2TV)

90464-10112-00

—
Out of stock

43

CLAMP(4FM)

90464-15195-00

—
Out of stock

44

CLAMP, HOSE(3KJ)

90460-15126-00

—
Out of stock

45

CLAMP

90465-10098-00

1
Out of stock

46

CLAMP(6E8)

90465-13M39-00

—
Out of stock

47

CLAMP(4FM)

90464-15195-00

—
Out of stock

48

CLAMP

90464-18007-00

1
Out of stock

49

CLAMP

90464-16012-00

—
Out of stock
