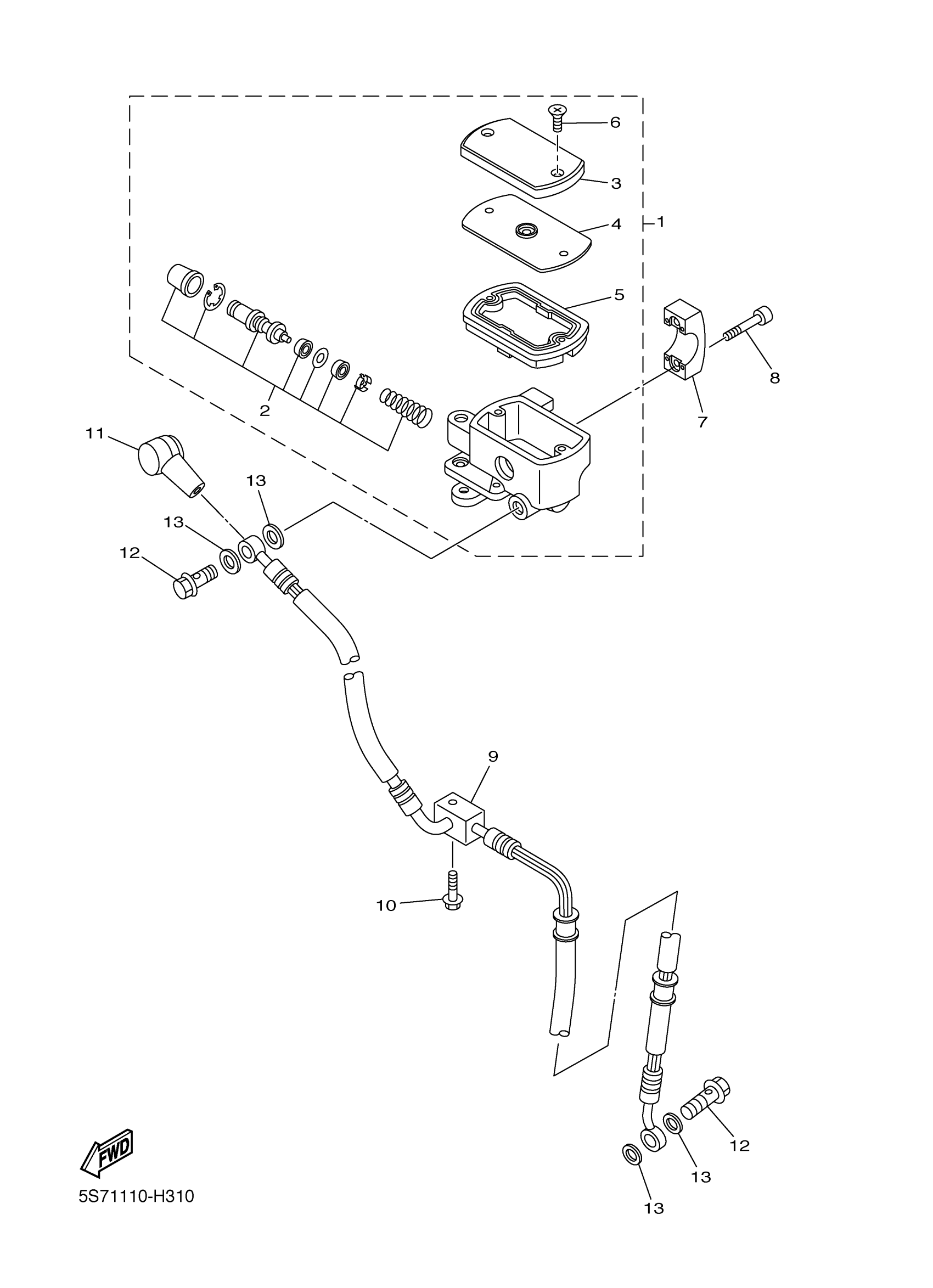

Yamaha XVS95AL (V STAR 950) 5S770 2011 FRONT MASTER CYLINDER Diagram

MASTER CYLINDER SUB ASSY

5S7-25870-01-00

$257.99

CYLINDER KIT, MASTER

1JL-25807-01-00

$79.99

CAP, RESERVOIR

3D8-25852-00-00

Unavailable

BUSH,DIAPHRAGM

3D8-25855-00-00

$5.49

DIAPHRAGM, RESERVOIR

3D8-25854-00-00

Unavailable

SCREW

3D8-2589H-00-00

$6.99

BRACKET, MASTER CYLINDER

4TR-25867-10-00

Unavailable

BOLT,SOCKET HEAD

91314-06025-00

$8.49

HOSE, BRAKE 1

5S7-25872-00-00

$121.99

BOLT, WASHER BASED(4EB)

90105-06791-00

$2.60

BOOT, MASTER CYLINDER

4L0-25862-01-00

$7.99

BOLT, UNION

90401-10020-00

$9.49

GASKET

90430-10005-00

$9.49
