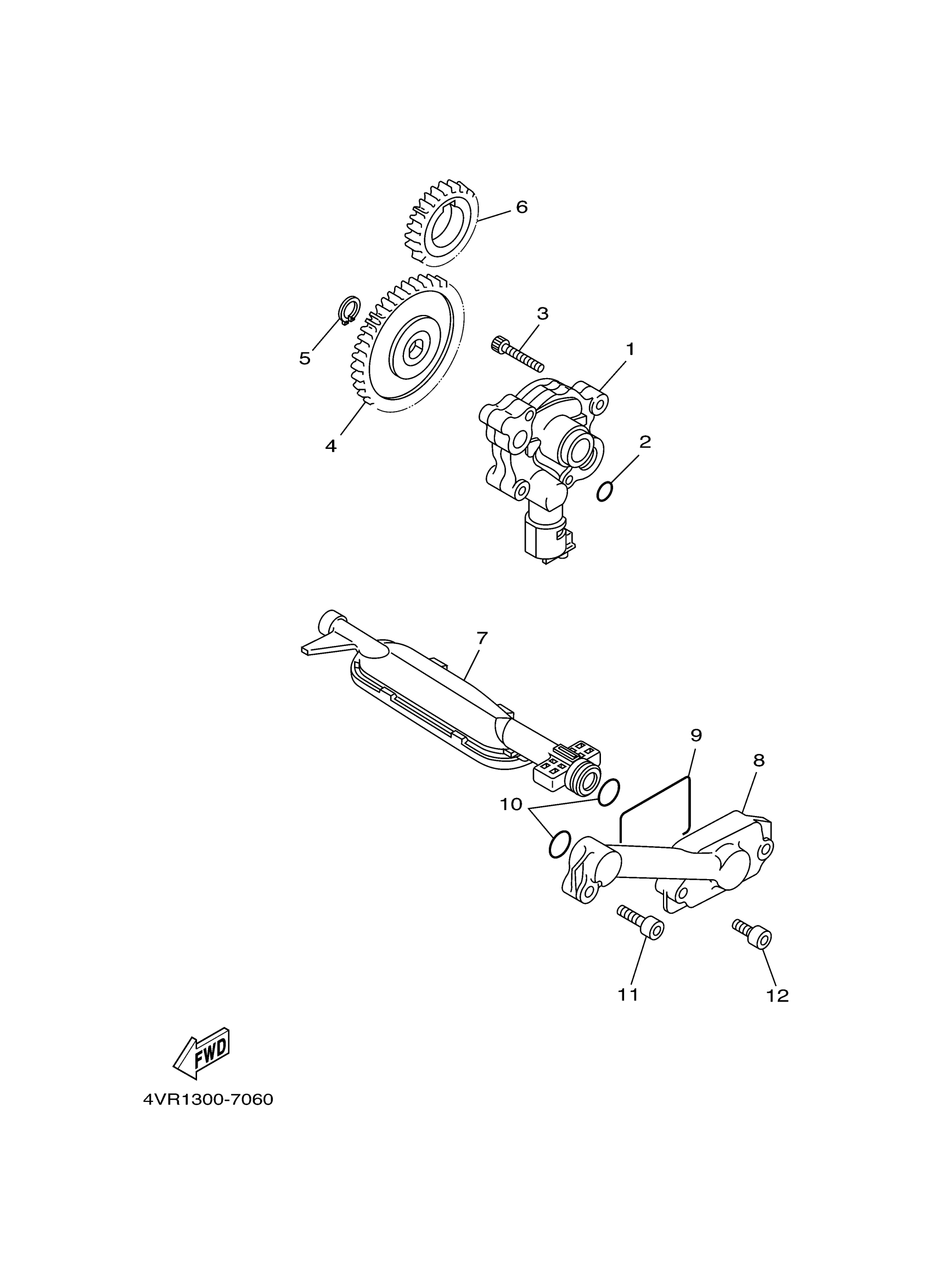

Yamaha XVS65ZCB (V STAR 650 MIDNIGHT CUSTOM CA) 5S1A 2010 OIL PUMP Diagram

OIL PUMP ASSY

4VR-13300-00-00

$238.99

O-RING (611)

93210-10096-00

$3.76

BOLT, HEXAGON SOCKET HEAD(1VJ)

90110-06138-00

$5.60

GEAR, PUMP DRIVEN

4VR-13325-01-00

Unavailable

CIRCLIP(24H)

99009-11400-00

$8.49

GEAR, PUMP DRIVE

22U-13324-00-00

Unavailable

STRAINER HOUSING ASSY

4TR-13410-00-00

$31.99

COVER, STRAINER

4VR-13417-01-00

$93.99

SEAL, OIL STRAINER

22U-13415-00-00

$11.99

O-RING (256)

93210-15151-00

Unavailable

BOLT,SOCKET HEAD

91314-06025-00

$8.49

BOLT,SOCKET HEAD

91314-06020-00

$1.49
