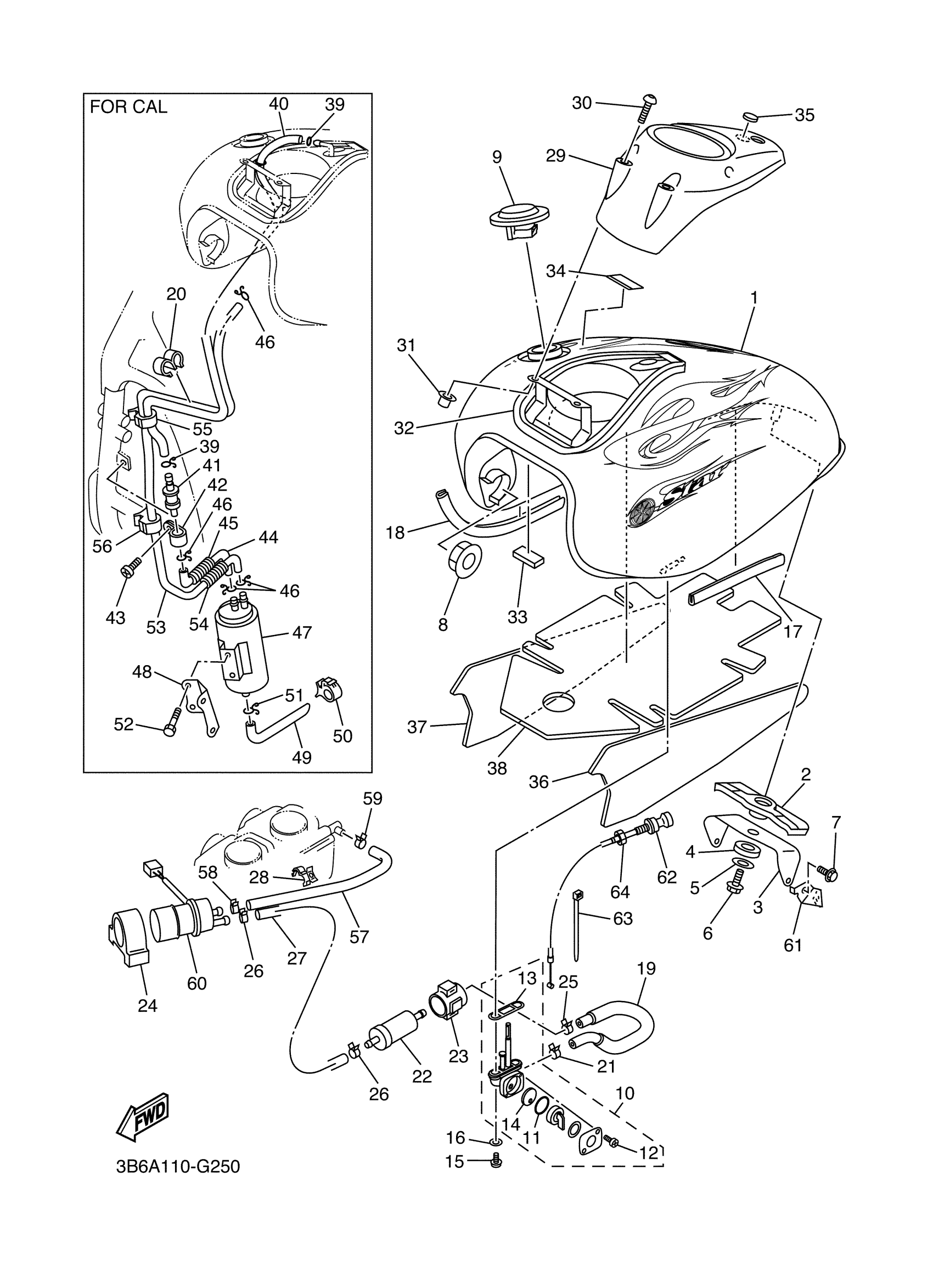

Yamaha XVS65YL (V STAR 650 CUSTOM) 3B6D 2009 FUEL TANK Diagram

#

Description
Price

1

FUEL TANK COMP. (PURPLISH BLUE METALLIC 7)

5SC-Y2410-10-X3

Unavailable

2

DAMPER, LOCATING 2

4TR-24182-00-00

Unavailable

3

BRACKET, TANK FITTING

4TR-2413Y-00-00

Unavailable

4

DAMPER, LOCATING 3

4TR-24183-00-00

$6.99

5

WASHER

90209-06011-00

Unavailable

6

BOLT, BUTTON HEAD

92017-06012-00

$7.49

7

BOLT, FLANGE(JN5)

95817-08016-00

$5.49

8

DAMPER, LOCATING

4H7-24181-00-00

$6.99

9

CAP ASSY

4NK-24602-20-00

$129.99

10

FUEL COCK ASSY 1

21V-24500-20-00

$51.99

11

SEAL, COCK

3AJ-24534-01-00

$10.99

12

SCREW, PAN HEAD(3AC)

98517-03008-00

$2.97

13

O-RING

4X8-24512-00-00

$8.99

14

VALVE PACKING

3AC-24523-00-00

$12.99

15

SCREW 256241430000

90149-06011-00

$5.60

16

WASHER, PLATE(3MB)

90202-05187-00

Unavailable

17

MOLE, SIDE COVER 1

1FK-2171L-00-00

Unavailable

18

MOLD, FUEL TANK

1HX-24188-01-00

Unavailable

19

PIPE 3

4TR-24313-10-00

Unavailable

20

CLAMP(6M7)

90464-09M31-00

Unavailable

21

CLIP

90467-10038-00

Unavailable

22

FILTER ASSY

1FK-24560-10-00

Unavailable

23

BRACKET, FILTER

1FK-24566-00-00

Unavailable

24

BAND 1

4EB-24398-00-00

Unavailable

25

CLIP (7K7)

90467-11044-00

Unavailable

26

CLIP (7K7)

90467-11044-00

Unavailable

27

PIPE, FUEL 1

4TR-24311-10-00

Unavailable

28

CLAMP(4HM)

90464-15192-00

Unavailable

29

COVER, TOP

4TR-2171A-00-00

Unavailable

30

SCREW(3YF)

90149-05299-00

Unavailable

31

NUT(1KT)

90179-05523-00

Unavailable

32

SEAL

4TR-2414G-00-00

Unavailable

33

DAMPER, SIDE COVER

3XV-21717-00-00

Unavailable

34

LABEL, CAUTION

5GK-2118K-00-00

Unavailable

35

EMBLEM

4TR-2413B-00-00

Unavailable

36

DAMPER, PLATE 1

5SC-2414H-00-00

Unavailable

37

DAMPER, PLATE 2

5SC-2414J-00-00

Unavailable

38

DAMPER, PLATE 3

5SC-2414K-00-00

Unavailable

39

CLIP

90467-100A1-00

Unavailable

40

PIPE 2

5BN-24312-10-00

Unavailable

41

ROLL OVER VALVE ASSY

5PX-24180-00-00

Unavailable

42

CLAMP

90464-15014-00

Unavailable

43

SCREW, BINDING

98907-05010-00

Unavailable

44

PIPE 4

5BN-24314-10-00

Unavailable

45

PROTECTOR, PIPE

5BN-24327-00-00

Unavailable

46

CLIP

90467-100A1-00

Unavailable

47

CANISTER ASSY

2JU-24170-00-00

Unavailable

48

BRACKET, CANISTOR

5BN-2419F-00-00

Unavailable

49

PIPE 5

5BN-24315-10-00

Unavailable

50

CLAMP(4HM)

90464-15192-00

Unavailable

51

CLIP

90467-100A1-00

Unavailable

52

BOLT, FLANGE

95817-06010-00

Unavailable

53

PIPE 3

5BN-24313-10-00

Unavailable

54

PROTECTOR, PIPE

5BN-24327-00-00

Unavailable

55

CLAMP(4GY)

90464-20191-00

Unavailable

56

CLAMP(4HM)

90464-15192-00

Unavailable

57

HOSE

4TR-14294-10-00

Unavailable

58

CLIP (7K7)

90467-11044-00

Unavailable

59

CLIP(3GM)

90467-12124-00

Unavailable

60

FUEL PUMP COMP.

5KS-13907-01-00

Unavailable

61

HOLDER, WIRE

4TR-2637G-00-00

Unavailable

62

CABLE, STARTER 1

4TR-26331-00-00

Unavailable

63

BAND

1UA-82591-00-00

Unavailable

64

NUT

1VJ-26333-00-00

Unavailable
