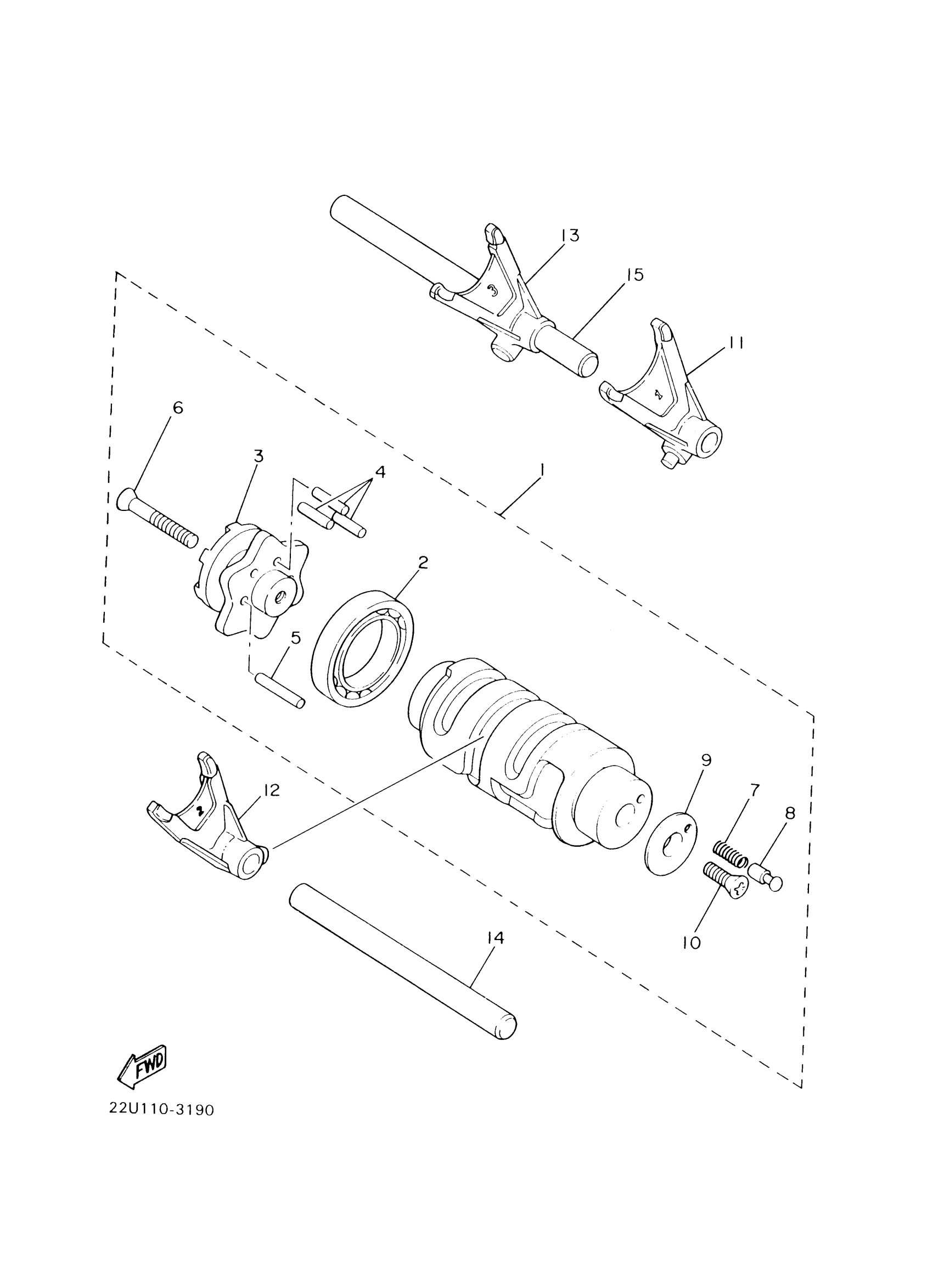

Yamaha XVS65XR (V STAR 650 CUSTOM) 3B6A 2008 SHIFT CAM FORK Diagram

#

Description
Price

1

SHIFT CAM ASSY

4TR-18540-02-00

Unavailable

2

BRG,R-B (4X7)

93306-90602-00

$41.99

3

. SEGMENT

16G-18185-00-00

Unavailable

4

PIN, DOWEL (409)

93604-16092-00

$3.18

5

PIN, DOWEL (4H7)

93604-20156-00

$3.55

6

SCREW, FLAT

98707-05035-00

$8.49

7

SPRING COMPRESSION278185450000

90501-06022-00

$8.49

8

POINT, NEUTRAL

4UN-18542-00-00

$8.99

9

PLATE, SIDE 2

4UN-18566-00-00

$19.99

10

SCREW(3HX)

90149-05245-00

$8.49

11

FORK, SHIFT 1

4TR-18511-00-00

Unavailable

12

FORK, SHIFT 2

4TR-18512-00-00

Unavailable

13

FORK, SHIFT 3

4TR-18513-00-00

Unavailable

14

BAR, SHIFT FORK GUIDE 1

3YF-18531-00-00

Unavailable

15

BAR, SHIFT FORK GUIDE 2

4TR-18535-00-00

Unavailable
