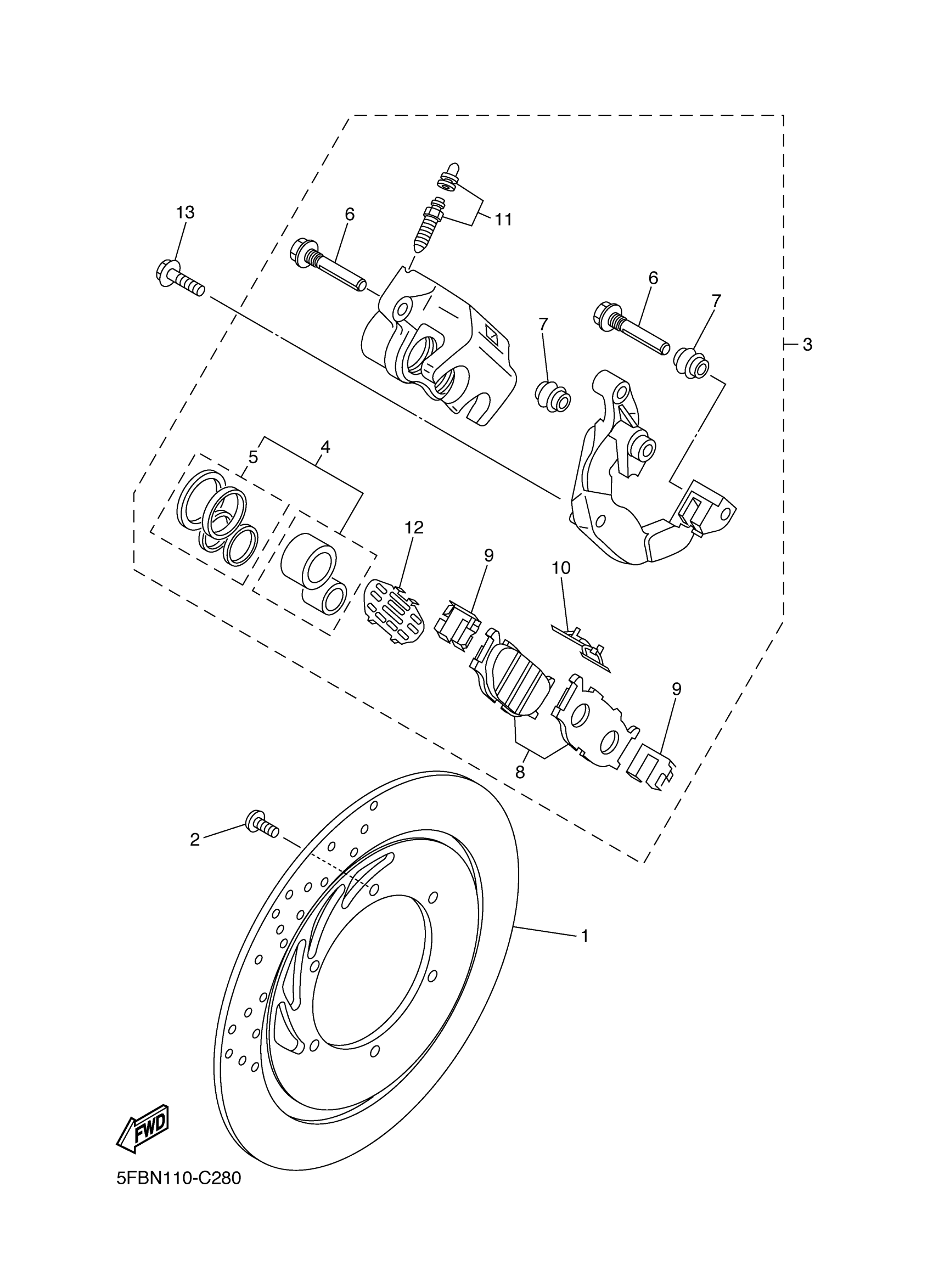

Yamaha XVS65XR (V STAR 650 CUSTOM) 3B6A 2008 FRONT BRAKE CALIPER Diagram

DISC, BRAKE (RIGHT)

5BN-2582U-00-00

$292.99

BOLT,HEX. SOCKET BUTTON

90111-08057-00

$5.60

CALIPER ASSY (RIGHT)

4WM-2580U-01-00

$577.99

PISTON ASSY, CALIPER

3JB-25802-00-00

$142.99

CALIPER SEAL KIT

3JB-25803-00-00

$45.99

PIN, SLIDE

5JW-25914-10-00

$22.99

BOOT 2

4TT-25937-00-00

$16.49

BRAKE PAD KIT

4WM-W0045-00-00

$44.99

SUPPORT, PAD

4BP-25919-00-00

$44.99

SPRING, ANTI RATTLE

3YX-25929-00-00

Unavailable

BLEED SCREW KIT

15B-W0048-00-00

$19.99

SHIM, CALIPER

5BN-25827-00-00

Unavailable

BOLT, WASHER BASED(3VD)

90105-10638-00

$7.49
