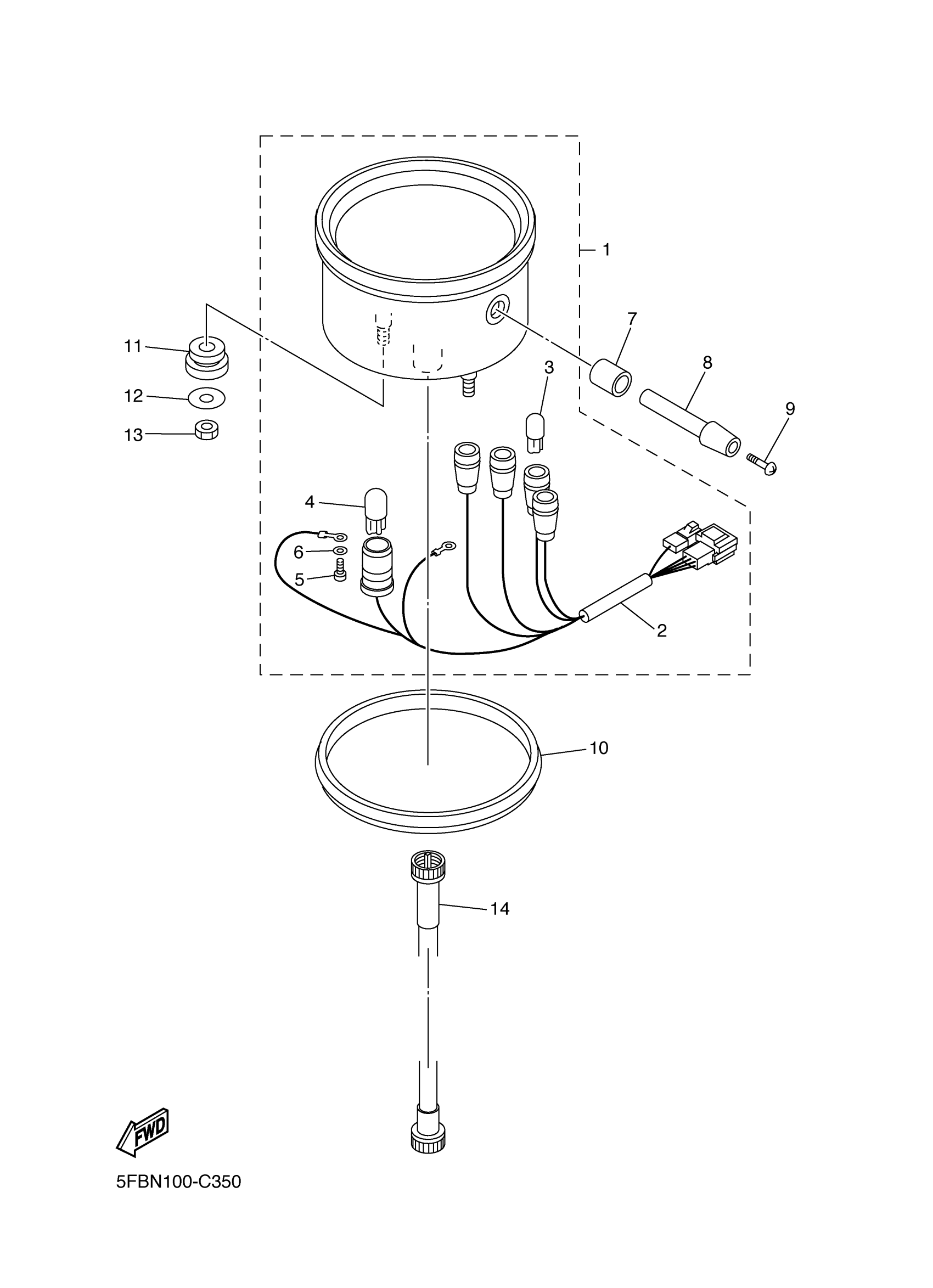

Yamaha XVS65XCB (V STAR 650 MIDNIGHT CUSTOM CA) 5S14 2008 METER Diagram

#

Description
Price

1

SPEEDOMETER ASSY

4VR-83580-40-00

Unavailable

2

SOCKET CORD ASSY

5SC-83520-20-00

$45.60

3

BULB (12V-1.7W)

3FV-83517-00-00

$6.04

4

BULB (12V-1.7W)

3GM-83517-00-00

Unavailable

5

SCREW PAN HEAD

98580-03010-00

$6.38

6

WASHER, SPRING

92990-03100-00

$5.75

7

TUBE

4TR-83535-00-00

$6.03

8

KNOB, TRIP METER

1JK-83578-00-00

$17.20

9

SCREW, PAN HEAD (11H)

90157-02031-00

$6.57

10

DAMPER

4TR-83513-00-00

Unavailable

11

DAMPER 2

4TR-83526-00-00

$6.03

12

WASHER PLATE 829771780000

90201-05033-00

$6.62

13

NUT, HEXAGON SMALL

95317-05700-00

$5.76

14

SPEEDOMETER CABLE ASSY

4VR-83550-01-00

Unavailable
