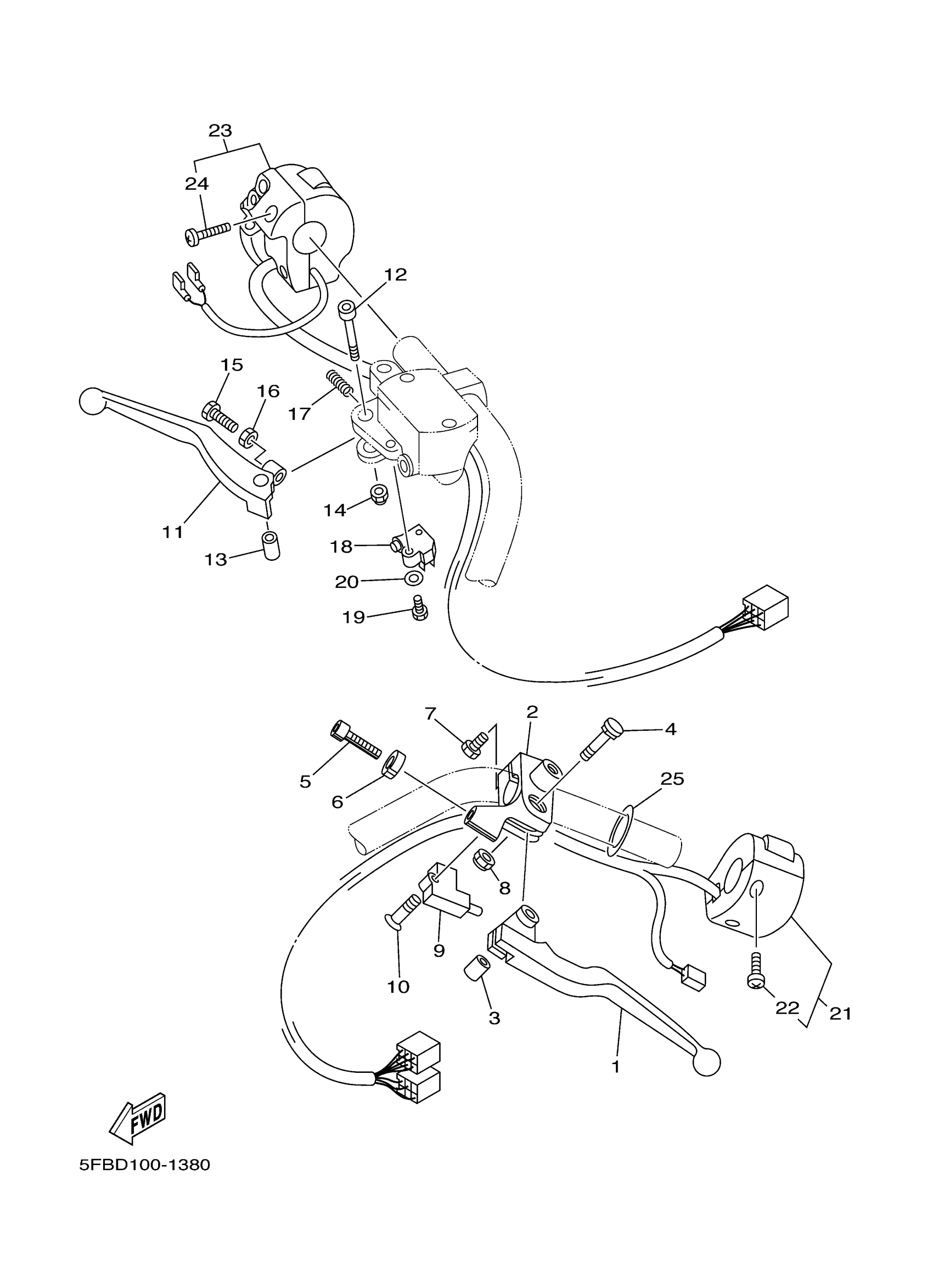

Yamaha XVS65XCB (V STAR 650 MIDNIGHT CUSTOM CA) 5S14 2008 HANDLE SWITCH LEVER Diagram

#

Description
Price

1

LEVER 1

4TR-83912-10-00

Unavailable

2

HOLDER, LEVER 1

4TR-82911-10-00

Unavailable

3

COLLAR, LEVER 1

4TR-83913-00-00

$6.22

4

BOLT, LEVER

4TR-83945-00-00

$11.89

5

BOLT

90123-08002-00

$8.57

6

NUT

90179-08030-00

$3.63

7

BOLT, HEXAGON

97017-06020-00

$2.37

8

NUT, SELF-LOCKING

95617-06100-00

$2.17

9

SWITCH

3YX-82917-01-00

$37.06

10

SCREW, COUNTERSUNK

90151-03003-00

Unavailable

11

LEVER 2

36Y-83922-00-00

$34.82

12

BOLT, HEXAGON SOCKET HEAD(36Y)

90110-06074-00

$6.76

13

COLLAR, LEVER 1

36Y-83913-01-00

$8.33

14

NUT, SELF-LOCKING

95617-06100-00

$2.17

15

SCREW (2L0)

90149-06131-00

$5.75

16

NUT HEXAGON 306839270000

90170-06010-00

Unavailable

17

SPRING COMPRESSION306839240000

90501-10312-00

Unavailable

18

SWITCH, ALARM

J45-82503-01-00

Unavailable

19

SCREW, PAN HEAD

98517-04016-00

Unavailable

20

WASHER(JF2)

92907-04600-00

Unavailable

21

SWITCH, HANDLE 3

5FB-83973-20-00

Unavailable

22

SCREW, PANHEAD (A93)

98580-05525-00

Unavailable

23

SWITCH, HANDLE 2

5VN-83975-30-00

Unavailable

24

SCREW, PANHEAD (A93)

98580-05525-00

Unavailable

25

WASHER, PLATE (26H)

90202-26142-00

Unavailable
