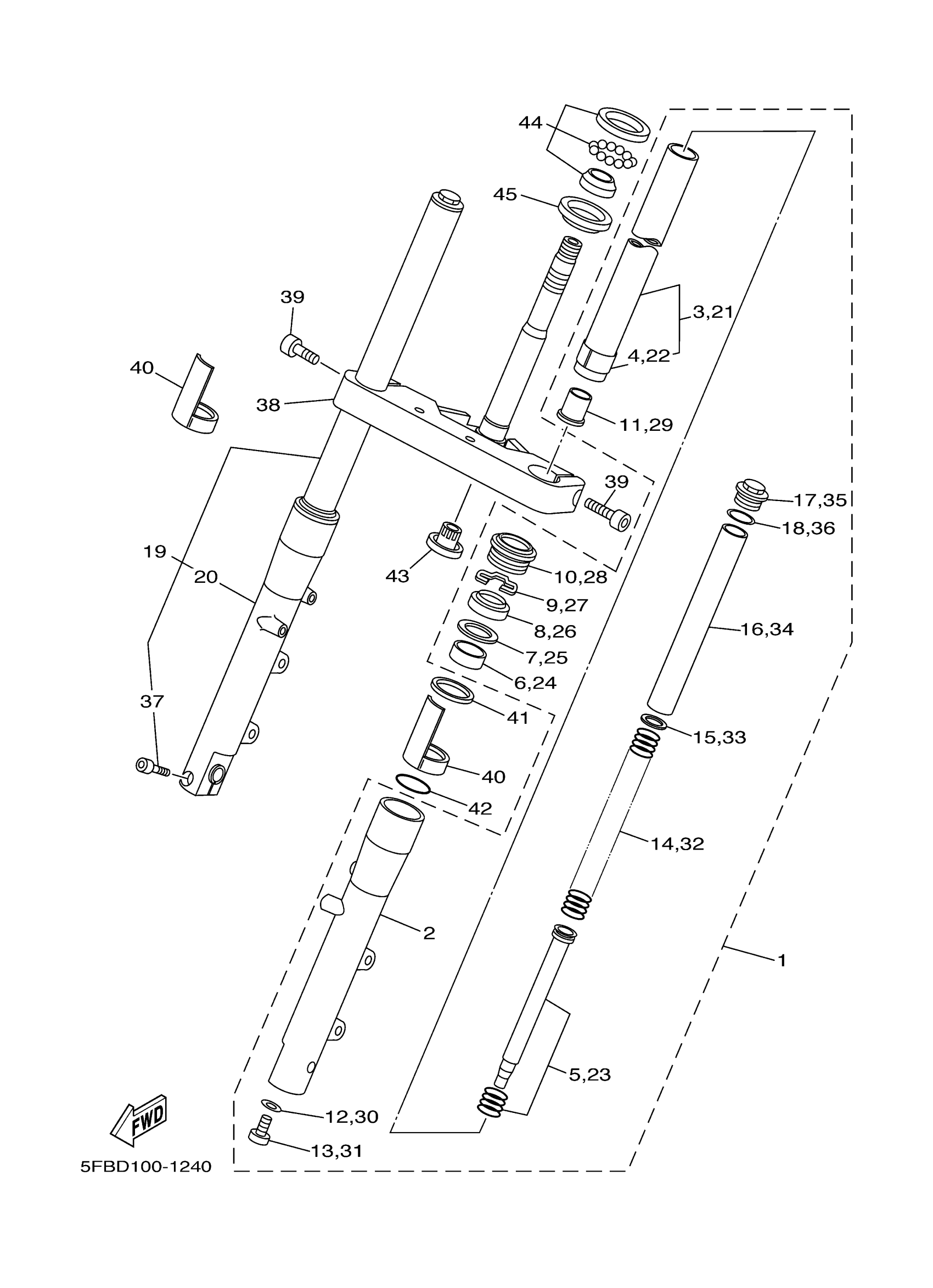

Yamaha XVS65XCB (V STAR 650 MIDNIGHT CUSTOM CA) 5S14 2008 FRONT FORK Diagram

#

Description
Price

1

FRONT FORK ASSY (L.H)

5KP-23102-20-00

Unavailable

2

TUBE, OUTER (LEFT)

5KP-23126-20-00

Unavailable

3

INNER TUBE COMP.1

5KP-23110-00-00

Unavailable

4

PISTON, FRONT FORK

5BN-23171-00-00

$22.99

5

CYLINDER COMP., FRONT FORK

5KP-23170-00-00

Unavailable

6

METAL, SLIDE 1

4FM-23125-40-00

$33.99

7

WASHER, OIL SEAL

36Y-23146-10-00

$27.99

8

OIL SEAL

4EB-23145-01-00

$28.99

9

CLIP, OIL SEAL

26H-23156-00-00

$7.99

10

SEAL, DUST

4EB-23144-00-00

$22.99

11

SPINDLE, TAPER

4YR-23173-00-00

Unavailable

12

GASKET

509-23158-L0-00

$16.49

13

BOLT, HEXAGON SOCKET HEAD

3D8-23181-00-00

$8.99

14

SPRING, FRONT FORK

5KP-23141-00-00

$46.99

15

WASHER, SPRING UPPER

4DW-23149-40-00

$6.99

16

SPACER

4TR-23118-00-00

Unavailable

17

BOLT, CAP

1D0-23111-00-00

Unavailable

18

O-RING

43F-23188-10-00

Unavailable

19

FRONT FORK ASSY (R.H)

5KP-23103-20-00

Unavailable

20

TUBE, OUTER (RIGHT)

5KP-23136-20-00

Unavailable

21

INNER TUBE COMP.1

5KP-23110-00-00

Unavailable

22

PISTON, FRONT FORK

5BN-23171-00-00

$22.99

23

CYLINDER COMP., FRONT FORK

5KP-23170-00-00

Unavailable

24

METAL, SLIDE 1

4FM-23125-40-00

$33.99

25

WASHER, OIL SEAL

36Y-23146-10-00

$27.99

26

OIL SEAL

4EB-23145-01-00

$28.99

27

CLIP, OIL SEAL

26H-23156-00-00

$7.99

28

SEAL, DUST

4EB-23144-00-00

$22.99

29

SPINDLE, TAPER

4YR-23173-00-00

Unavailable

30

GASKET

509-23158-L0-00

$16.49

31

BOLT, HEXAGON SOCKET HEAD

3D8-23181-00-00

$8.99

32

SPRING, FRONT FORK

5KP-23141-00-00

$46.99

33

WASHER, SPRING UPPER

4DW-23149-40-00

$6.99

34

SPACER

4TR-23118-00-00

Unavailable

35

BOLT, CAP

1D0-23111-00-00

Unavailable

36

O-RING

43F-23188-10-00

Unavailable

37

BOLT,SOCKET

91314-08040-00

Unavailable

38

UNDER BRACKET COMP.

5KP-23340-20-00

Unavailable

39

BOLT,SOCKET

91314-10030-00

Unavailable

40

COVER

5EL-2331G-00-00

Unavailable

41

STOPPER

5EL-23376-00-00

Unavailable

42

O-RING

5EL-23147-00-00

Unavailable

43

COVER, LOWER 1

4KM-23123-01-00

Unavailable

44

BEARING(3FV)

93399-99932-00

Unavailable

45

SEAL, STEERING

3FV-23462-00-00

Unavailable

46

FORK SEAL KIT (TWO FORKS)

4EB-W003B-00-00

Unavailable
