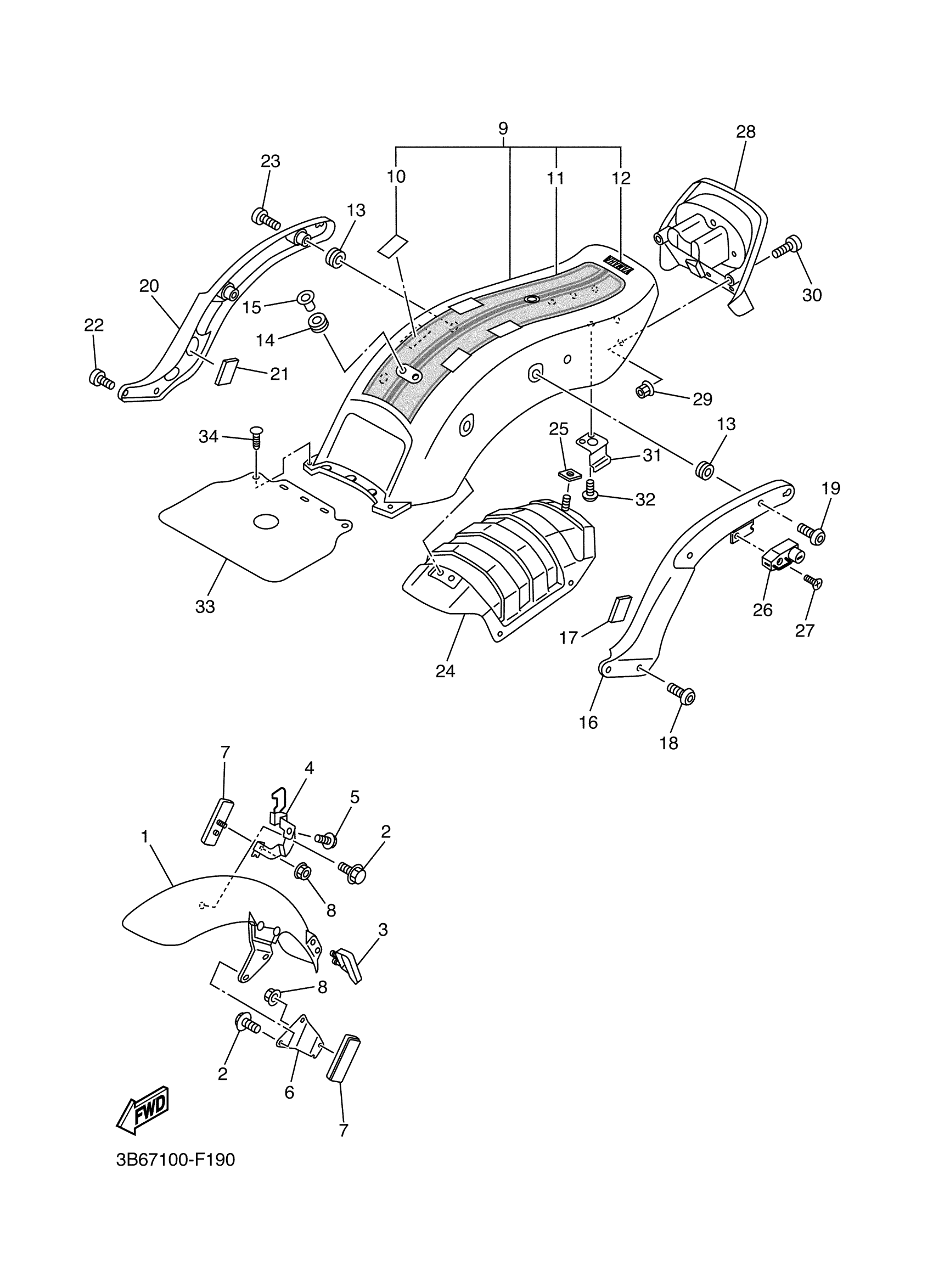

Yamaha XVS65WC (V STAR 650 CUSTOM CA) 3B68 2007 FENDER Diagram

#

Description
Price

1

FRONT FENDER COMP.

4TR-21510-02-PG

Unavailable

2

BOLT, SMALL FLANGE

95027-08012-00

$9.49

3

HOLDER, CABLE

4VR-21518-00-00

$7.99

4

HOLDER, WIRE 2

5FB-21598-01-00

Unavailable

5

BOLT, FLANGE

95817-06012-00

$1.43

6

BRACKET, REFLECTOR 1

5FB-85112-00-00

Unavailable

7

FRONT REFLECTOR ASSY

11H-85110-01-00

$27.99

8

NUT, FLANGE(3GM)

95707-05500-00

$8.49

9

REAR FENDER COMP. (DEEP RED METALLIC K)

4TR-Y2161-A2-PH

Unavailable

10

SEAL 1

3SP-21732-00-00

$17.49

11

. GRAPHIC, REAR FENDER

3B6-21675-10-00

Unavailable

12

EMBLEM, YAMAHA

3WF-2153E-71-00

$4.89

13

GROMMET(3AK)

90480-18495-00

$9.49

14

GROMMET

90480-13014-00

$8.49

15

COLLAR(1LJ)

90387-067N5-00

$7.49

16

STAY, FENDER 1

4TR-21613-01-00

Unavailable

17

DAMPER

3SX-2139X-00-00

Unavailable

18

SCREW, PAN HEAD (22U)

90157-10043-00

Unavailable

19

BOLT, BUTTON HEAD(4TR)

92014-08040-00

Unavailable

20

STAY, FENDER 2

4TR-21614-01-00

Unavailable

21

DAMPER

3SX-2139X-00-00

Unavailable

22

SCREW, PAN HEAD (22U)

90157-10043-00

Unavailable

23

BOLT, BUTTON HEAD(4TR)

92014-08040-00

Unavailable

24

STAY, REAR

4TR-21643-01-00

Unavailable

25

DAMPER, SEAT

5FB-24737-00-00

Unavailable

26

HELMET HANGER ASSY

26H-21308-01-00

Unavailable

27

SCREW (4G1)

90149-06154-00

Unavailable

28

FENDER 2

5FB-2162R-00-00

Unavailable

29

NUT(1KT)

90179-05523-00

Unavailable

30

SCREW, BINDING (8R1)

90154-05011-00

Unavailable

31

HOLDER, HARNESS

4TR-21679-00-00

Unavailable

32

SCREW, TRUSS TAP.

97707-50012-00

Unavailable

33

GUARD, MUD

4TR-21629-00-00

Unavailable

34

RIVET(81E)

90269-05055-00

Unavailable
