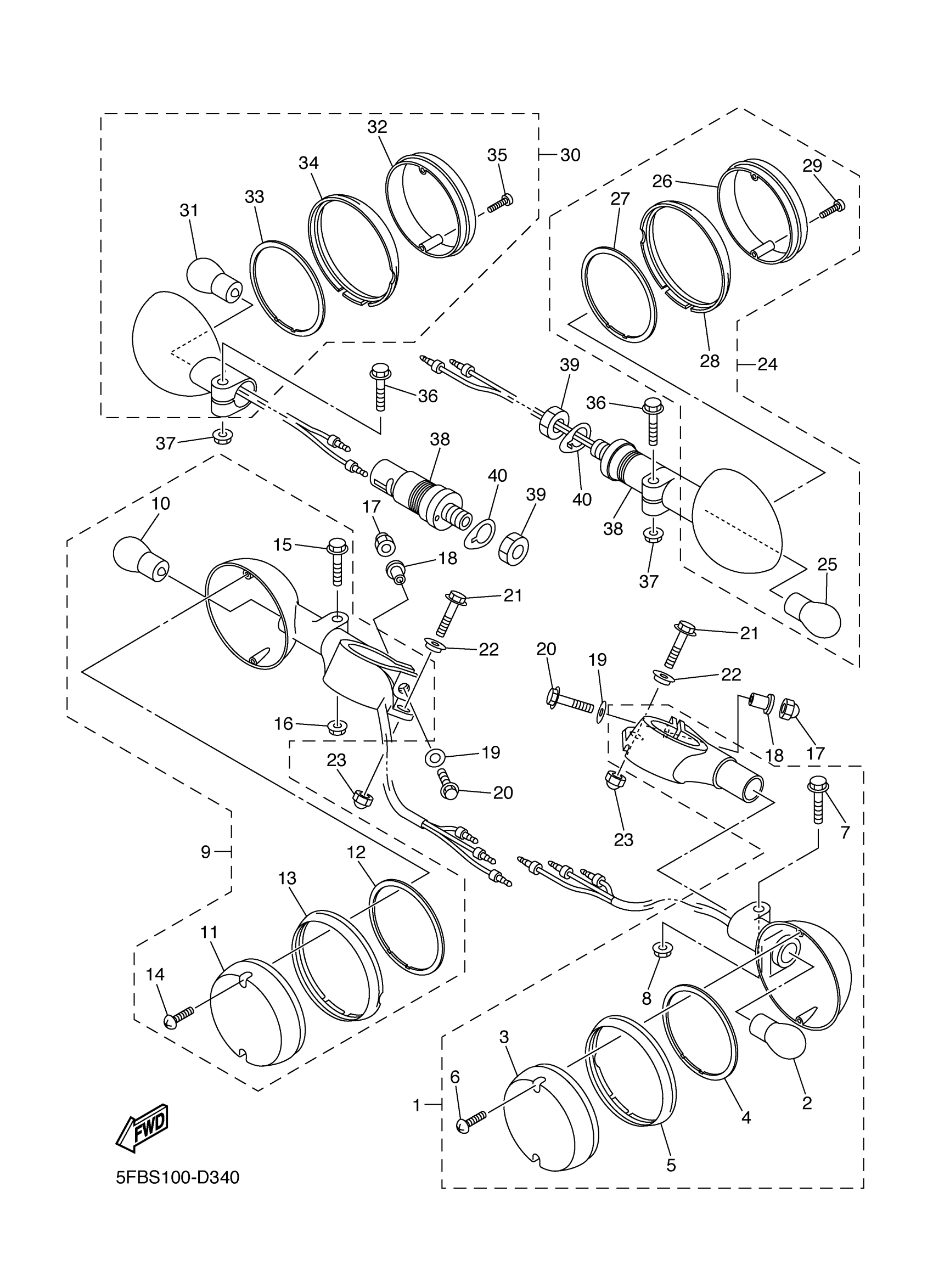

Yamaha XVS65WC-M (V STAR 650 CUSTOM MIDNIGHT CA) 5S11 2007 FLASHER LIGHT Diagram

#

Description
Price

1

FRONT FLASHER LIGHT ASSY 1

5PB-83310-10-00

$134.99

2

BULB, FLASHER (12V-23/8W)

5VN-83311-00-00

$15.49

3

LENS, FLASHER

5VN-83312-10-00

$16.49

4

GASKET, FLASHER LENS

1D6-83313-00-00

$6.99

5

LENS, RIM

1D6-83363-00-00

$28.99

6

SCREW, COUNTERSUNK

90151-03003-00

Unavailable

7

BOLT, FLANGE(4AS)

95024-06030-00

$8.49

8

NUT, FLANGE(7NB)

95780-06500-00

$2.60

9

FRONT FLASHER LIGHT ASSY 2

5PB-83320-10-00

$101.99

10

BULB, FLASHER (12V-23/8W)

5VN-83311-00-00

$15.49

11

LENS, FLASHER

5VN-83312-20-00

$16.49

12

GASKET, FLASHER LENS

1D6-83313-00-00

$6.99

13

LENS, RIM

1D6-83363-10-00

$28.99

14

SCREW, COUNTERSUNK

90151-03003-00

Unavailable

15

BOLT, FLANGE(4AS)

95024-06030-00

$8.49

16

NUT, FLANGE(7NB)

95780-06500-00

$2.60

17

NUT, CROWN(1FN)

90176-06055-00

Unavailable

18

COLLAR

90387-06076-00

Unavailable

19

WASHER, PLATE

90201-06045-00

Unavailable

20

BOLT, FLANGE

95817-06025-00

Unavailable

21

BOLT, SMALL FLANGE

95027-06030-00

Unavailable

22

SPACER (25G)

90560-06244-00

Unavailable

23

NUT (J17)

95380-06800-00

Unavailable

24

REAR FLASHER LIGHT ASSY 1

1D6-83330-01-00

Unavailable

25

BULB, FLASHER (12V-21W)

5VN-83331-00-00

Unavailable

26

LENS, FLASHER

1D6-83312-20-00

Unavailable

27

GASKET, FLASHER LENS

1D6-83313-00-00

$6.99

28

LENS, RIM

1D6-83363-10-00

$28.99

29

SCREW, COUNTERSUNK

90151-03003-00

Unavailable

30

REAR FLASHER LIGHT ASSY 2

1D6-83340-01-00

Unavailable

31

BULB, FLASHER (12V-21W)

5VN-83331-00-00

Unavailable

32

LENS, FLASHER

1D6-83312-10-00

Unavailable

33

GASKET, FLASHER LENS

1D6-83313-00-00

$6.99

34

LENS, RIM

1D6-83363-00-00

$28.99

35

SCREW, COUNTERSUNK

90151-03003-00

Unavailable

36

BOLT, FLANGE(4AS)

95024-06030-00

$8.49

37

NUT, FLANGE(7NB)

95780-06500-00

$2.60

38

STAY, FLASHER 1

1AA-83318-00-00

Unavailable

39

NUT, HEXAGON SMALL

95317-12700-00

Unavailable

40

WASHER

4TR-83348-00-00

Unavailable
