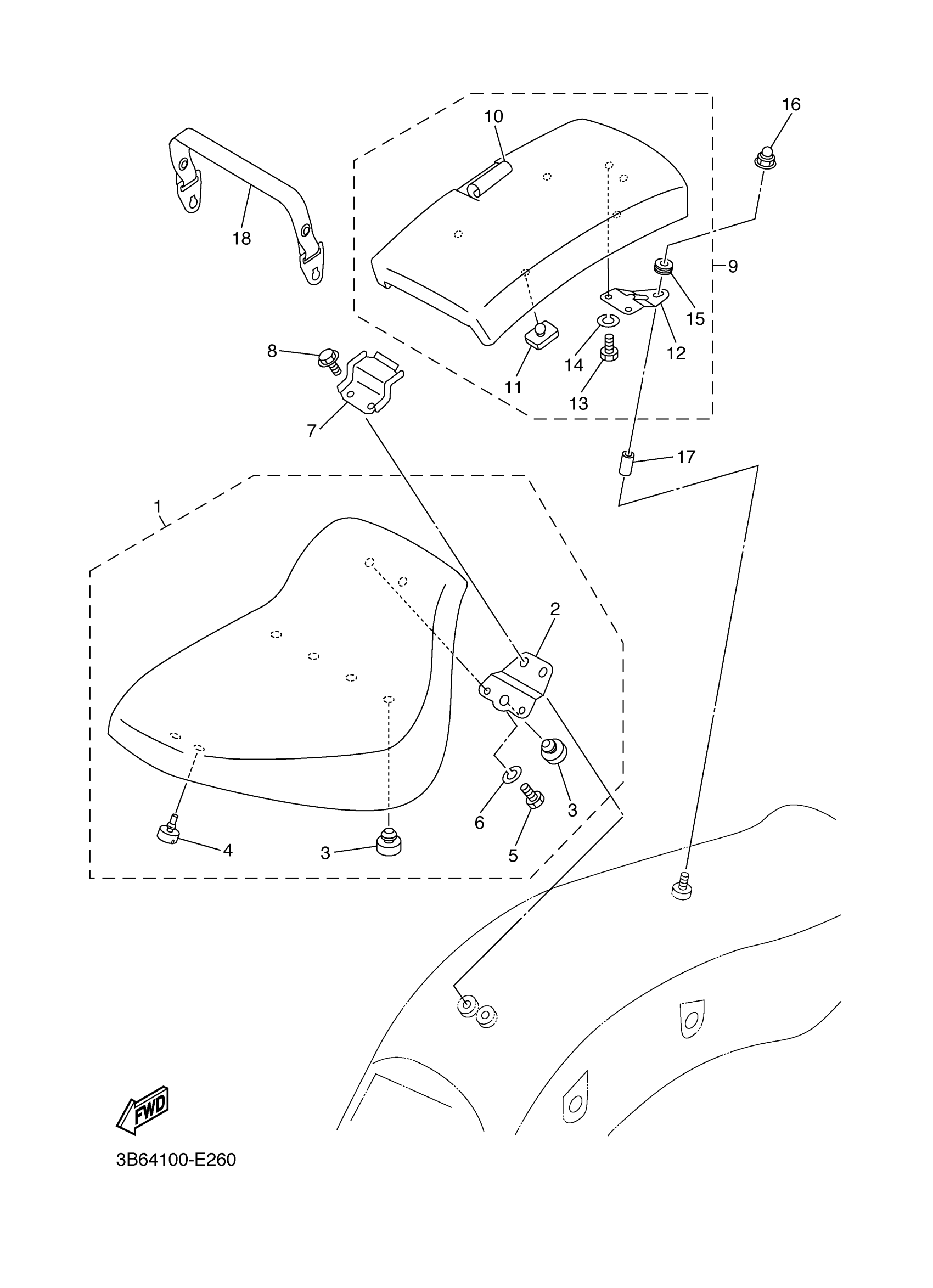

Yamaha XVS65VC (V STAR 650 CUSTOM CA) 3B65 2006 SEAT Diagram
#
Description
Price
1
SINGLE SEAT ASSY
4VR-24710-20-00
Unavailable
2
BRACKET, SEAT LEVER 1
4TR-2475H-00-00
Unavailable
7
BRACKET 3
4TR-2475K-00-00
Unavailable
9
TANDEM SEAT ASSY
4TR-24750-32-00
Unavailable
10
COVER, TANDEM SEAT
4TR-24751-10-00
Unavailable
12
BRACKET, SEAT LEVER 2
5FB-2475J-01-00
Unavailable
15
. DAMPER, SEAT
5FB-24723-00-00
Unavailable
16
NUT, CROWN
90176-06013-00
Unavailable
17
COLLAR
90387-06108-00
Unavailable
18
Seat Band Assy
4TR-24720-01-00
Unavailable
