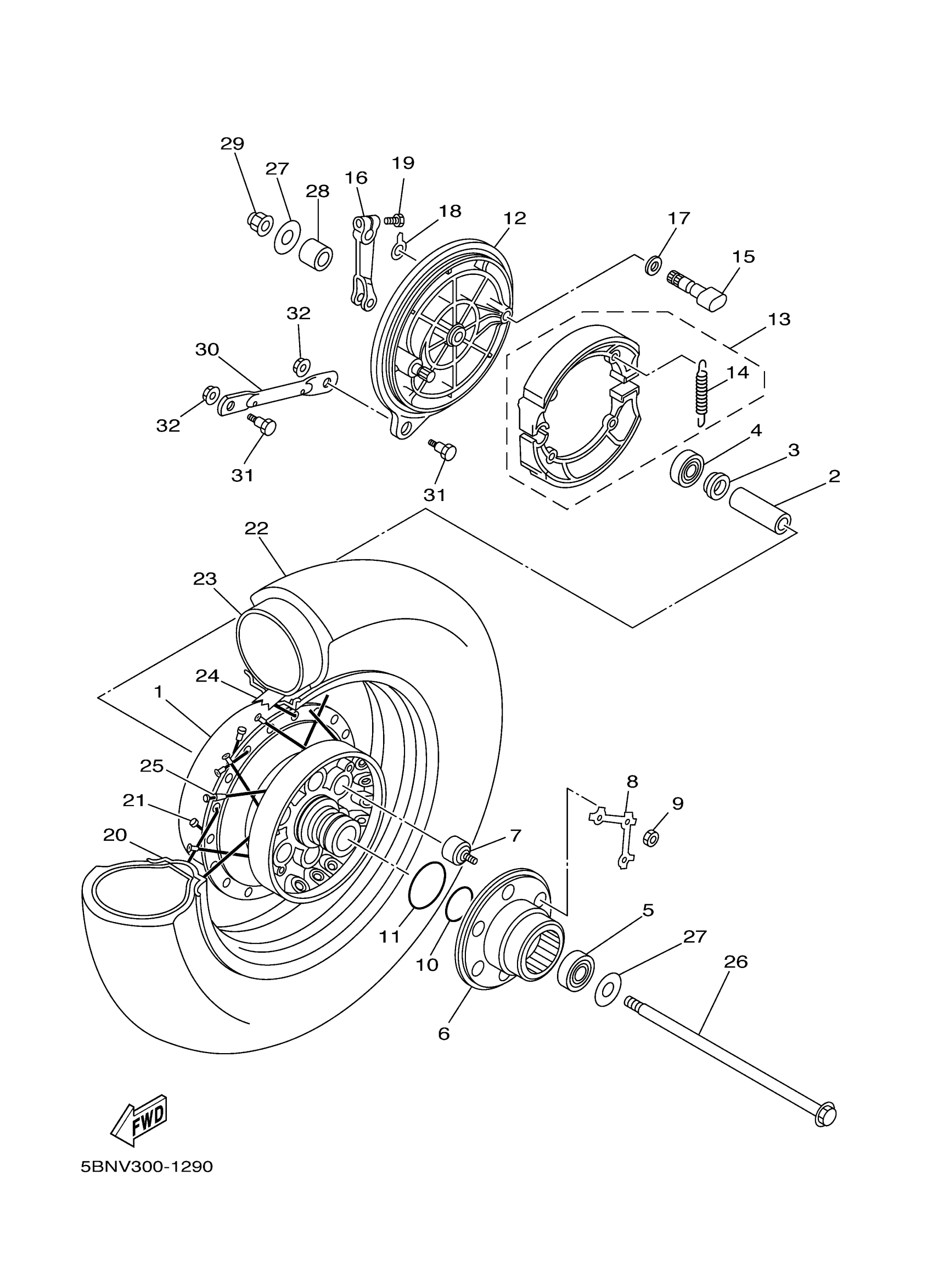

Yamaha XVS65VC (V STAR 650 CUSTOM CA) 3B65 2006 REAR WHEEL Diagram
#
Description
Price
1
HUB, REAR
3JB-25311-00-35
Unavailable
2
SPACER, BEARING
2GV-25317-00-00
Unavailable
3
FLANGE, SPACER
2GV-25315-00-00
Unavailable
4
BEARING
93306-30213-00
Unavailable
7
DAMPER
4TR-25364-00-00
Unavailable
12
PLATE, BRAKE SHOE
4TR-25321-00-00
Unavailable
16
LEVER, CAM SHAFT
214-25355-00-00
Unavailable
17
WASHER, PLATE
90201-14577-00
Unavailable
18
PLATE, INDICATOR
4H7-2533A-02-00
Unavailable
19
BOLT(3BM)
90101-06764-00
Unavailable
20
RIM
94435-15586-00
Unavailable
21
SPOKE SET, REAR
4VR-25304-02-00
Unavailable
22
TIRE (170/80-15 M/C 77S G546)
94117-1508U-00
Unavailable
22
TIRE (170/80-15 M/C 77S K555)
94117-1508W-00
Unavailable
23
TUBE(4TR)
94217-15298-00
Unavailable
24
BAND, RIM(45-15)
94317-15173-00
Unavailable
25
BALANCER, WHEEL
3HT-25398-00-00
Unavailable
26
AXLE, WHEEL
4TR-25381-01-00
Unavailable
27
WASHER, PLATE(2KR)
90201-152L7-00
Unavailable
28
COLLAR(1KH)
90387-151R1-00
Unavailable
29
NUT, SELF-LOCKING(4TR)
95604-14200-00
Unavailable
30
BAR, TENSION
4TR-25371-00-00
Unavailable
31
BOLT
90109-085G1-00
Unavailable
32
NUT, U FLANGE(4KG)
95604-08200-00
Unavailable
