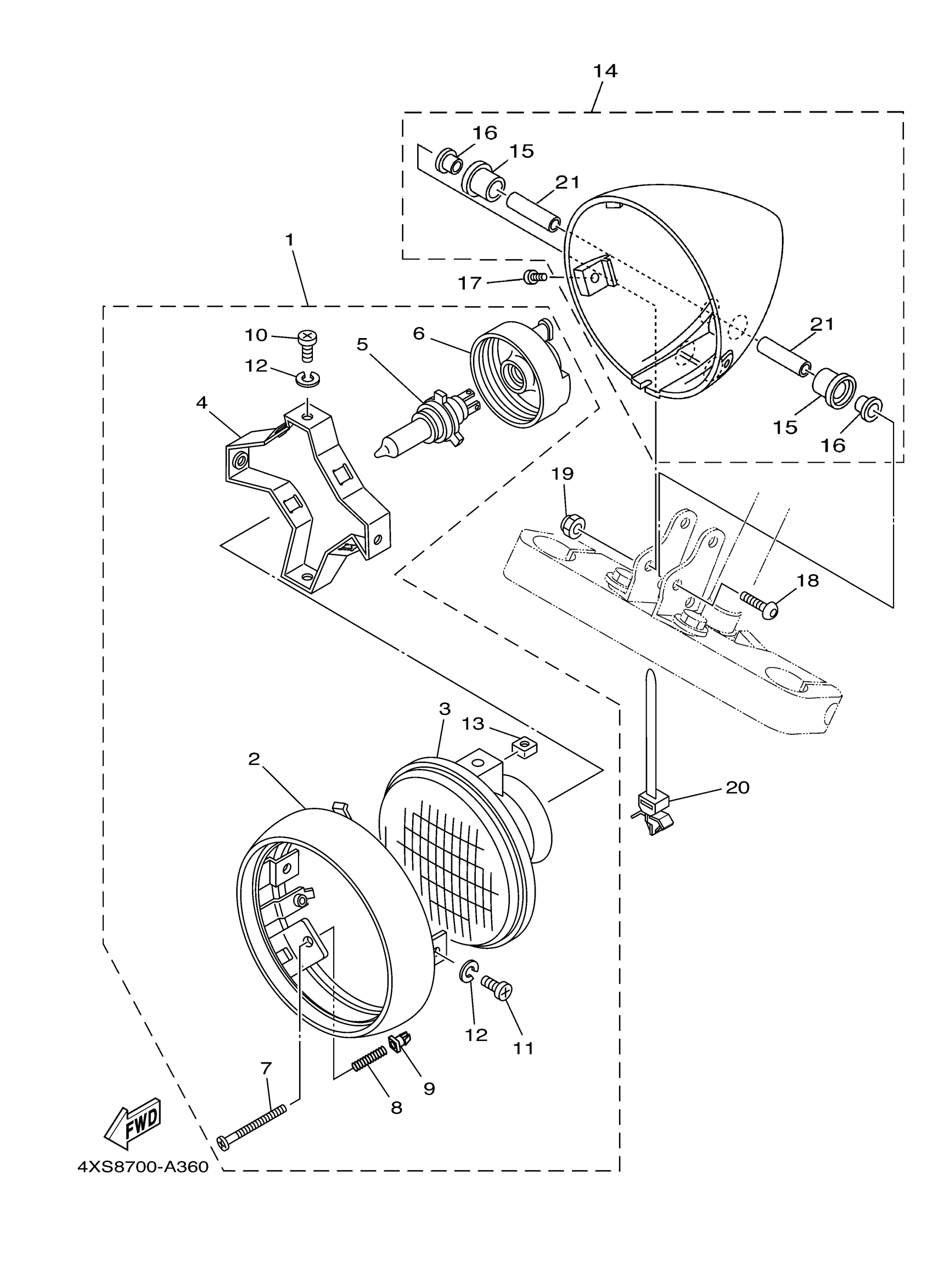

Yamaha XVS65VC (V STAR 650 CUSTOM CA) 3B65 2006 HEADLIGHT Diagram
#
Description
Price
1
HEADLIGHT UNIT ASSY
5KP-84310-01-00
Unavailable
2
RIM, HEADLIGHT
5JX-84315-01-00
Unavailable
3
LENS ASSY
5KP-84321-00-00
Unavailable
4
BRACKET
5JX-84316-00-00
Unavailable
6
COVER, SOCKET
4JG-84397-00-00
Unavailable
9
. NUT, ADJUSTING
47J-84334-00-00
Unavailable
12
WASHER, SPRING
92995-06100-00
Unavailable
14
BODY ASSY
5JX-84330-00-00
Unavailable
16
COLLAR, BODY FITTING
1FK-84338-00-00
Unavailable
17
SCREW, PAN HEAD
90157-05011-00
Unavailable
18
BOLT, BUTTON HEAD(4TR)
92014-06045-00
Unavailable
19
NUT, CROWN (35R)
90176-06047-00
Unavailable
20
CLAMP(2TV)
90464-10112-00
Unavailable
21
COLLAR 1
5JX-84388-00-00
Unavailable
