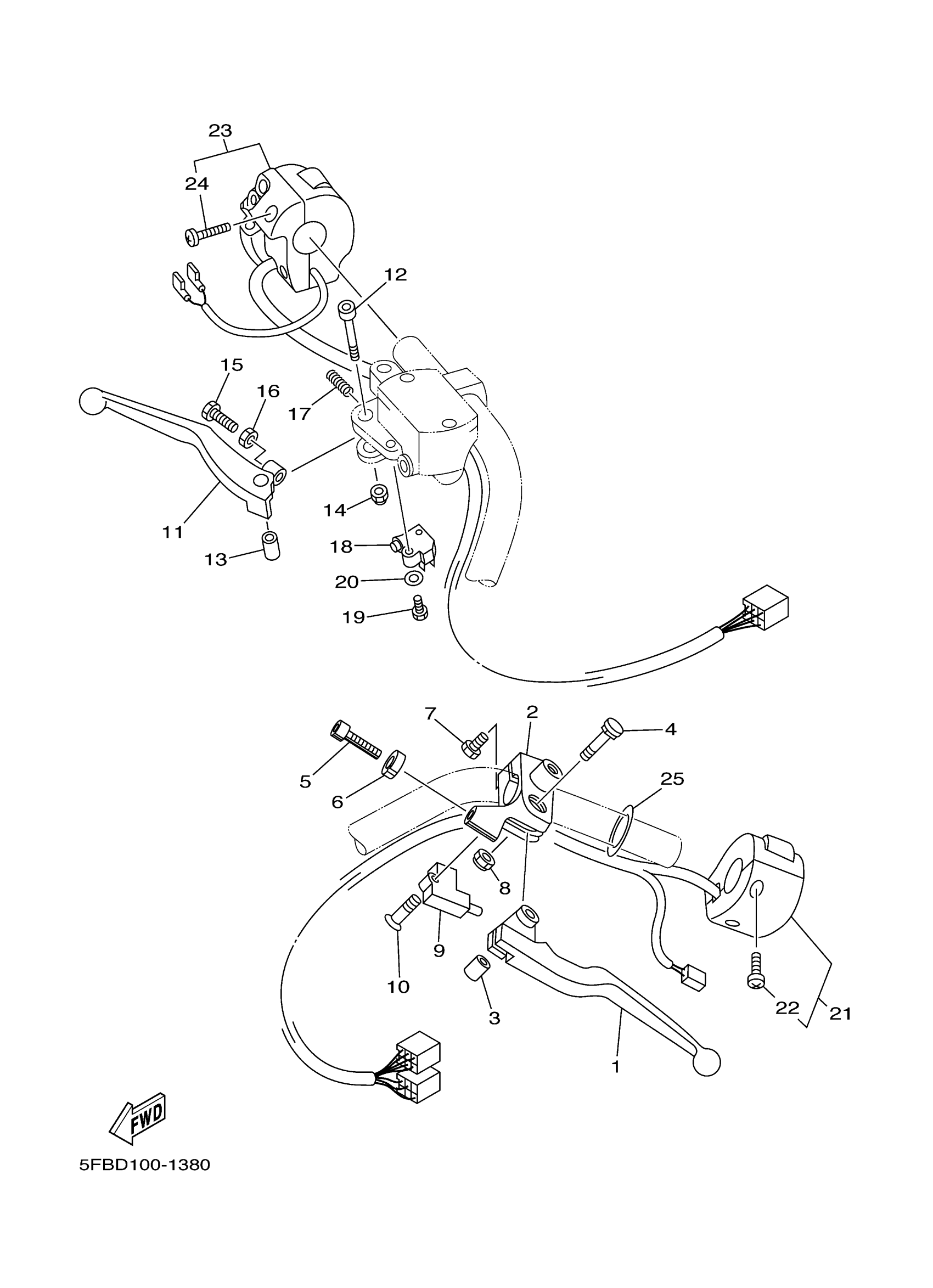

Yamaha XVS65VC (V STAR 650 CUSTOM CA) 3B65 2006 HANDLE SWITCH LEVER Diagram

#

Description
Price

1

LEVER 1

4TR-83912-00-00

$31.99

2

HOLDER, LEVER 1

4TR-82911-00-00

$30.99

3

COLLAR, LEVER 1

4TR-83913-00-00

$7.99

4

BOLT, LEVER

4TR-83945-00-00

$15.49

5

BOLT

90123-08002-00

$10.49

6

NUT

90179-08030-00

$5.49

7

BOLT(3DM)

97024-06020-00

$8.49

8

NUT, U(4NK)

95604-06100-00

$8.49

9

SWITCH

3YX-82917-01-00

$43.99

10

SCREW, FLAT HEAD(4BP)

98707-03020-00

$8.49

11

LEVER 2

1FK-83922-00-00

$34.99

12

BOLT, HEXAGON SOCKET HEAD(36Y)

90110-06074-00

$8.49

13

COLLAR, LEVER 1

36Y-83913-01-00

$9.99

14

NUT, SELF-LOCKING

95617-06100-00

$8.49

15

SCREW (2L0)

90149-06131-00

$8.49

16

NUT HEXAGON 306839270000

90170-06010-00

Unavailable

17

SPRING COMPRESSION306839240000

90501-10312-00

Unavailable

18

SWITCH, ALARM

J45-82503-01-00

Unavailable

19

SCREW, PAN HEAD

98517-04016-00

Unavailable

20

WASHER(JF2)

92907-04600-00

Unavailable

21

SWITCH, HANDLE 3

5FB-83973-30-00

Unavailable

22

SCREW, PANHEAD (A93)

98580-05525-00

Unavailable

23

SWITCH, HANDLE 2

5VN-83975-20-00

Unavailable

24

SCREW, PANHEAD (A93)

98580-05525-00

Unavailable

25

WASHER, PLATE (26H)

90202-26142-00

Unavailable
