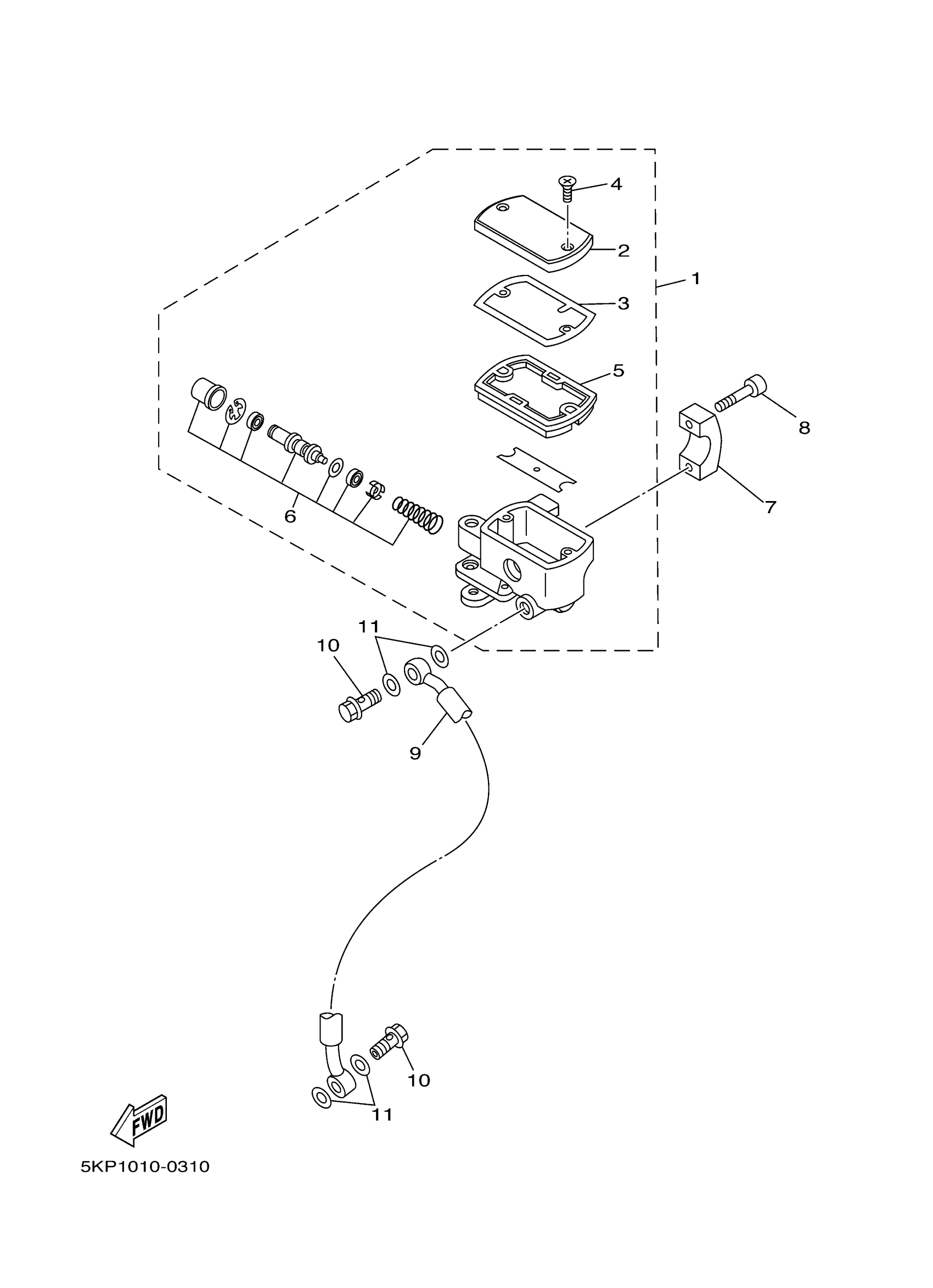

Yamaha XVS65VC (V STAR 650 CUSTOM CA) 3B65 2006 FRONT MASTER CYLINDER Diagram

MASTER CYLINDER SUB ASSY

3D8-25870-11-00

$309.99

CAP, RESERVOIR

4TR-25852-01-00

$64.99

SEAL, PISTON

4BH-25815-00-00

Unavailable

SCREW

4TR-2589H-00-00

$6.99

DIAPHRAGM, RESERVOIR

4BH-25854-02-00

Unavailable

CYLINDER KIT, MASTER

2KR-25807-00-00

Unavailable

BRACKET, MASTER CYLINDER

4TR-25867-00-00

Unavailable

BOLT,SOCKET HEAD

91314-06025-00

$8.49

HOSE, BRAKE 1

5KP-25872-10-00

Unavailable

BOLT, UNION(3GM)

90401-10159-00

$11.49

WASHER, PLATE(481)

90201-10118-00

Unavailable
