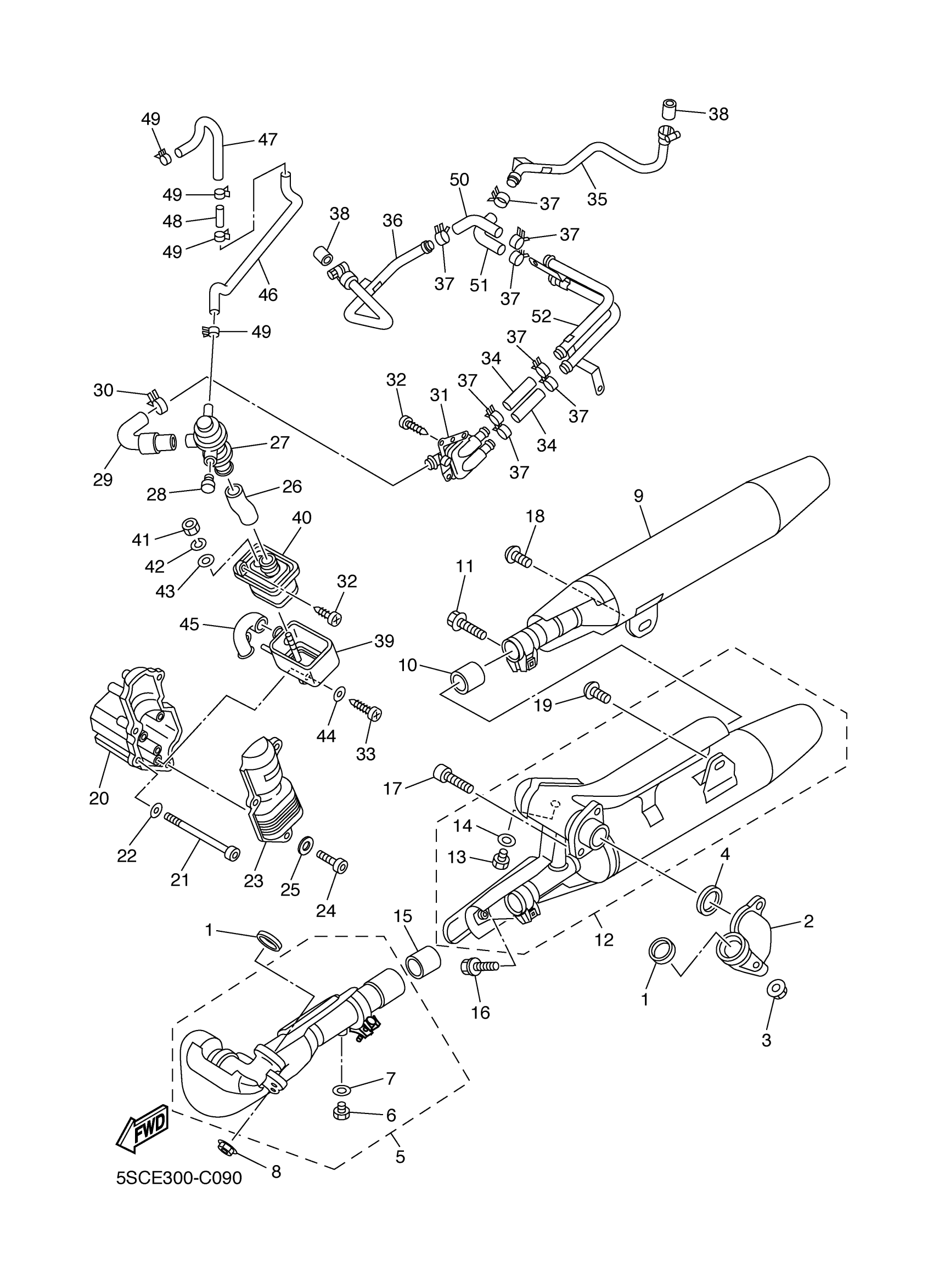

Yamaha XVS65VC (V STAR 650 CUSTOM CA) 3B65 2006 EXHAUST Diagram

#

Description
Price

1

GASKET, EXHAUST PIPE

4TR-14613-00-00

$13.49

2

JOINT, EXHAUST 1

4TR-14615-02-00

Unavailable

3

NUT, SELF-LOCKING(3BN)

90185-08146-00

$9.49

4

GASKET, EXHAUST PIPE

4BR-14613-00-00

$7.99

5

EXHAUST PIPE ASSY 2

5SC-14620-01-00

Unavailable

6

BOLT (11T)

90101-06576-00

$8.49

7

WASHER, PLAIN (646)

92990-06600-00

$2.80

8

NUT, SELF-LOCKING(3BN)

90185-08146-00

$9.49

9

MUFFLER COMP. 1

5SC-14703-11-00

Unavailable

10

GASKET, MUFFLER

4BH-14714-00-00

$45.99

11

BOLT, FLANGE(4GY)

95024-08025-00

$8.49

12

MUFFLER COMP. 2

5SC-14704-12-00

$1,380.99

13

BOLT (11T)

90101-06576-00

$8.49

14

WASHER, PLAIN (646)

92990-06600-00

$2.80

15

GASKET, MUFFLER

4BH-14714-00-00

$45.99

16

BOLT, FLANGE(4GY)

95024-08025-00

$8.49

17

BOLT, SOCKET

91314-08035-00

Unavailable

18

BOLT, BUTTON HEAD

92017-10020-00

Unavailable

19

BOLT, BUTTON HEAD

92017-10016-00

Unavailable

20

COVER, AIR 1

5BN-14604-00-00

Unavailable

21

BOLT, SOCKET

91317-06090-00

Unavailable

22

WASHER(6TA)

92907-06600-00

Unavailable

23

COVER 1

5BN-14603-00-00

Unavailable

24

BOLT,SOCKET HEAD

91314-06020-00

Unavailable

25

WASHER(6TA)

92907-06200-00

Unavailable

26

HOSE, BEND 2

5BN-14882-00-00

Unavailable

27

AIR CUT VALVE ASS'Y

5BN-14840-00-00

Unavailable

28

PLUG (17J)

90338-10132-00

Unavailable

29

HOSE, BEND 3

5BN-14883-00-00

Unavailable

30

CLIP (4V3)

90467-19051-00

Unavailable

31

REED VALVE ASSY

5BN-14808-00-00

Unavailable

32

SCREW, PAN TAP.2

97707-60514-00

Unavailable

33

SCREW, TAPPING(JA3)

97707-60520-00

Unavailable

34

HOSE, BEND 4

42H-14884-00-00

Unavailable

35

PIPE 1

5BN-14871-00-00

Unavailable

36

PIPE 2

5BN-14872-00-00

Unavailable

37

CLIP

90468-08104-00

Unavailable

38

GASKET, MUFFLER

4KM-14714-01-00

Unavailable

39

CASE, AIR CLEANER

5BN-14857-01-00

Unavailable

40

CAP, CASE

5BN-14858-00-00

Unavailable

41

NUT, U

95617-05100-00

Unavailable

42

WASHER, PLAIN LARGE

92907-05200-00

Unavailable

43

WASHER, PLATE (463)

90202-05057-00

Unavailable

44

WASHER, PLATE(3SX)

90201-062P7-00

Unavailable

45

HOSE, BEND 5

5BN-14885-00-00

Unavailable

46

HOSE, VACUUM SENSING 1

5BN-13542-00-00

Unavailable

47

HOSE, VACUUM SENSING 2

5BN-13544-00-00

Unavailable

48

PIPE

4MM-13582-00-00

Unavailable

49

CLIP(41W)

90467-08092-00

Unavailable

50

HOSE, BEND 1

5BN-14881-00-00

Unavailable

51

HOSE, BEND 1

5BN-14881-10-00

Unavailable

52

PIPE 5

5BN-14875-00-00

Unavailable
