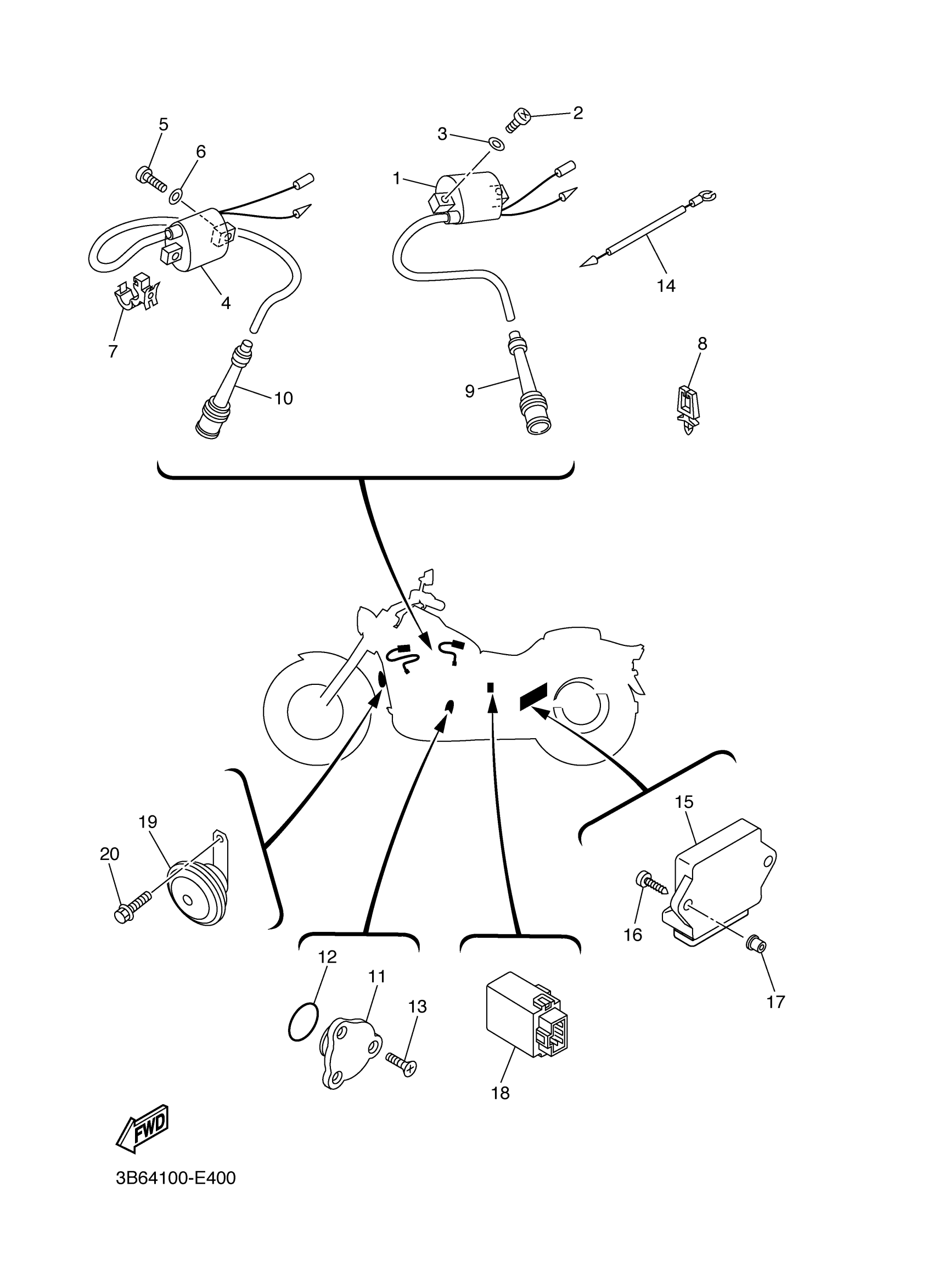

Yamaha XVS65VC (V STAR 650 CUSTOM CA) 3B65 2006 ELECTRICAL 2 Diagram

#

Description
Price

1

IGNITION COIL ASSY

4VR-82320-00-00

$164.99

2

SCREW, PAN HEAD

98517-05020-00

$4.25

3

WASHER(1RW)

92907-05600-00

$3.78

4

IGNITION COIL ASSY

4VR-82320-00-00

$164.99

5

SCREW, PAN HEAD

98517-05020-00

$4.25

6

WASHER(1RW)

92907-05600-00

$3.78

7

CLAMP(4GY)

90464-10190-00

$9.49

8

CLAMP(7LY)

90464-05141-00

$2.49

9

PLUG CAP ASSY

4XY-82370-00-00

$80.99

10

PLUG CAP ASSY

4VW-82370-00-00

$69.99

11

NEUTRAL SWITCH ASSY

1L9-82540-00-00

$47.99

11

NEUTRAL SWITCH ASSY

35C-82540-01-00

$58.99

12

O-RING (371)

93210-29196-00

$8.49

13

BOLT, HEXAGON SOCKET HEAD

90110-05074-00

Unavailable

13

SCREW(3HX)

90149-05245-00

$8.49

14

WIRE, SUB LEAD

4TR-82509-00-00

Unavailable

15

IGNITOR UNIT ASSY

5SC-82305-30-00

Unavailable

16

SCREW, TAPPING

97707-60020-00

Unavailable

17

PLUG(4BP)

90338-08226-00

Unavailable

18

FLASHER RELAY ASSY

2UJ-83350-01-00

Unavailable

19

HORN

5YS-83371-00-00

Unavailable

20

BOLT, WASHER BASED

90105-082A5-00

Unavailable
