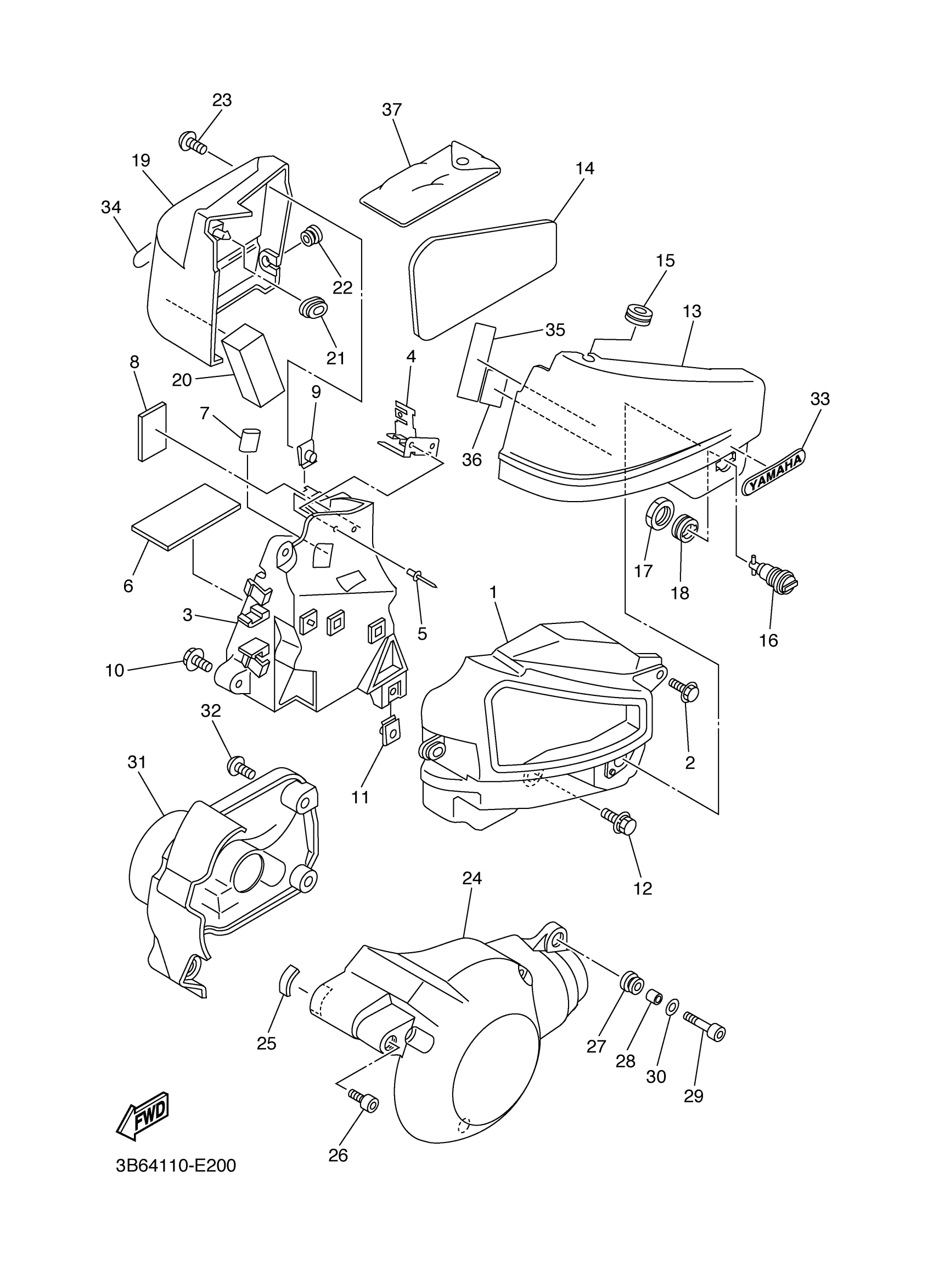

Yamaha XVS65VC-M (V STAR 650 MIDNIGHT CUSTOM CA) 5FBW 2006 SIDE COVER Diagram

#

Description
Price

1

BOX COMP.

4TR-2160A-00-00

Unavailable

2

BOLT, WITH WASHER(81H)

90119-06118-00

$8.49

3

BOX, BATTERY

4TR-2177G-10-00

Unavailable

4

BRACKET 1

5SC-2172K-00-00

Unavailable

5

RIVET, BLIND (15A)

90267-32071-00

$1.49

6

SEAT, BATTERY

5Y1-82122-00-00

$7.99

7

HOSE(4BH)

90446-14359-00

Unavailable

8

DAMPER

22F-2139X-00-00

$7.99

9

NUT, SPRING(4ES)

90183-06069-00

Unavailable

10

BOLT, WITH WASHER(81H)

90119-06118-00

$8.49

11

NUT, SPRING (26H)

90183-06023-00

$9.49

12

BOLT, WITH WASHER(2WG)

90119-06172-00

$10.49

13

COVER, SIDE 1

5BN-21711-12-PJ

$86.99

14

DAMPER

4TR-21717-00-00

Unavailable

15

GROMMET

90480-12320-00

$8.49

16

SIDE COVER LOCK ASSY

55K-21708-00-00

Unavailable

17

NUT, HEXAGON (1E6)

90170-22187-00

Unavailable

18

GROMMET (1E6)

90480-24186-00

Unavailable

19

COVER, SIDE 2

5BN-21721-00-PJ

Unavailable

20

PROTECTOR 5

84M-77555-00-00

Unavailable

21

GROMMET(4BH)

90480-01559-00

Unavailable

22

GROMMET

90480-12320-00

$8.49

23

SCREW(4DN)

90149-06302-00

Unavailable

24

COVER, SIDE 3

4TR-21731-20-00

Unavailable

25

DAMPER

5G3-21747-00-00

Unavailable

26

BOLT,SOCKET HEAD

91314-06012-00

Unavailable

27

GROMMET (4N0)

90480-10289-00

Unavailable

28

COLLAR

90387-06113-00

Unavailable

29

BOLT,SOCKET HEAD

91314-06020-00

Unavailable

30

WASHER PLATE 256216150000

90201-06062-00

Unavailable

31

COVER, SIDE 4

4VR-21741-00-00

Unavailable

32

BOLT, HEXAGON SOCKET HEAD(3HE)

90110-06200-00

Unavailable

33

EMBLEM 1

3LS-21781-10-00

Unavailable

34

EMBLEM 1

3LS-21781-10-00

Unavailable

35

LABEL, CAUTION

3JJ-28446-A2-00

Unavailable

36

LABEL, CAUTION

4BR-24877-A0-00

Unavailable

37

IGNITION COIL ASSY

4TR-28100-01-00

Unavailable
