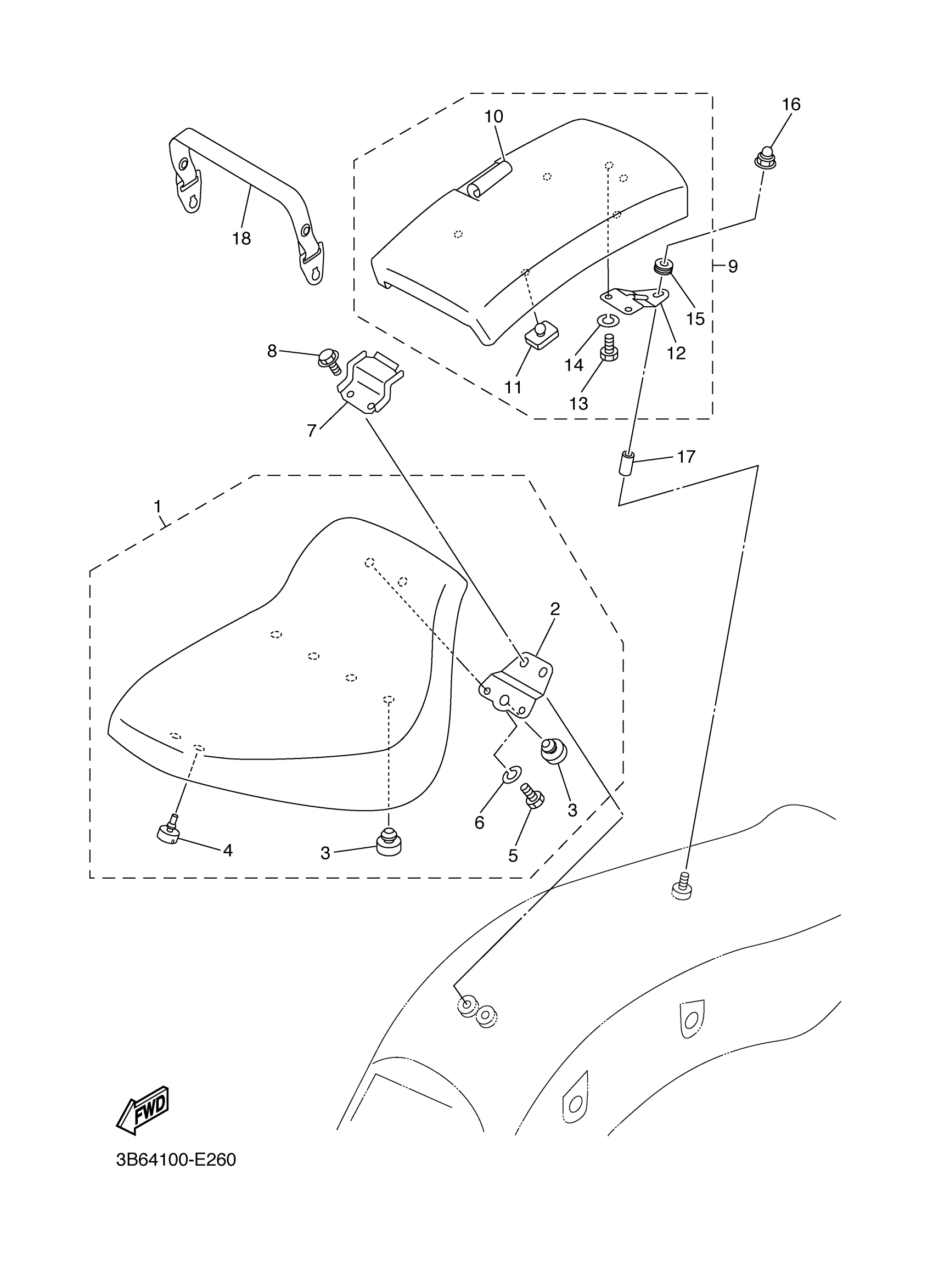

Yamaha XVS65VC-M (V STAR 650 MIDNIGHT CUSTOM CA) 5FBW 2006 SEAT Diagram

#

Description
Price

1

SINGLE SEAT ASSY

4VR-24710-20-00

Unavailable

2

BRACKET, SEAT LEVER 1

4TR-2475H-00-00

Unavailable

3

PAD, SEAT

22W-24741-00-00

$7.20

4

DAMPER, SEAT

35T-24724-00-00

$11.48

5

BOLT, HEXAGON

97017-06012-00

$2.44

6

WASHER, SPRING

92907-06100-00

$0.98

7

BRACKET 3

4TR-2475K-00-00

$6.26

8

BOLT,SOCKET

91317-06025-00

$1.91

9

TANDEM SEAT ASSY

4TR-24750-32-00

Unavailable

10

COVER, TANDEM SEAT

4TR-24751-10-00

Unavailable

11

DAMPER, SEAT

509-24724-00-00

$8.84

12

BRACKET, SEAT LEVER 2

5FB-2475J-01-00

Unavailable

13

BOLT, HEXAGON

97017-06012-00

$2.44

14

WASHER, SPRING

92907-06100-00

$0.98

15

. DAMPER, SEAT

5FB-24723-00-00

Unavailable

16

NUT, CROWN

90176-06013-00

Unavailable

17

COLLAR

90387-06108-00

$1.68

18

Seat Band Assy

4TR-24720-01-00

Unavailable
