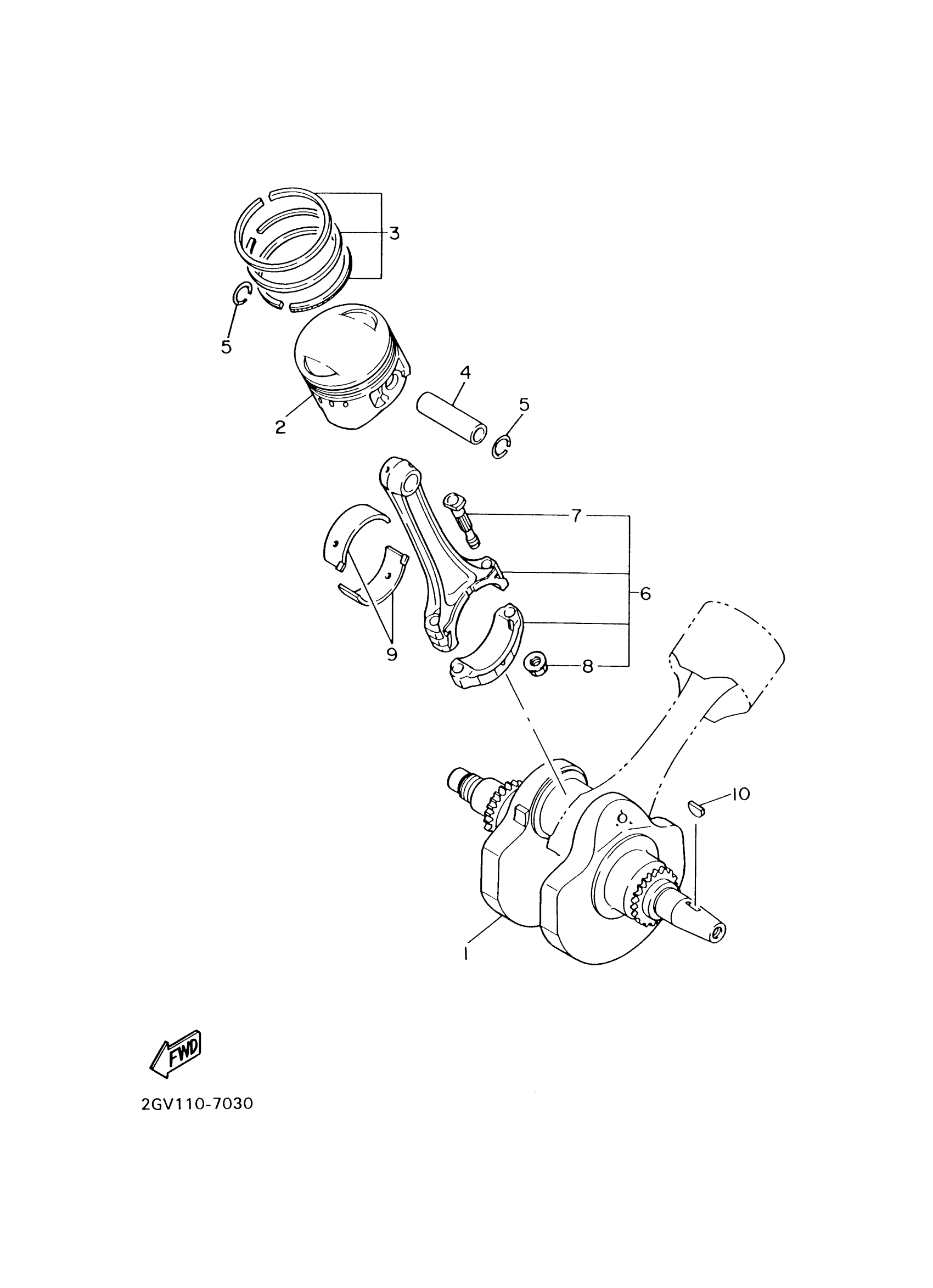

Yamaha XVS65VC-M (V STAR 650 MIDNIGHT CUSTOM CA) 5FBW 2006 CRANKSHAFT PISTON Diagram

CRANKSHAFT

4VR-11411-00-00

Unavailable

PISTON (STD)

4VR-11631-01-A0

Unavailable

PISTON (0.50MM O/S)

4VR-11636-01-00

$159.99

PISTON (1.00MM O/S)

4VR-11638-01-00

Unavailable

PISTON RING SET (STD)

4VR-11603-00-00

$67.99

PISTON RING SET (0.50MM O/S)

4VR-11605-00-00

$64.99

PISTON RING SET (1.00MM O/S)

4VR-11607-00-00

$39.99

PIN, PISTON

3LD-11633-00-00

$34.99

CIRCLIP 341116340000

93450-22027-00

$7.49

CONNECTING ROD ASSY

4VR-11650-00-00

Unavailable

BOLT, CONNECTING ROD

22U-11654-00-00

$11.99

NUT (11H)

90179-08327-00

$9.49

PLANE BEARING, CONNECTING ROD

3LD-11656-00-00

$29.99

PLANE BEARING, CONNECTING ROD

3LD-11656-10-00

$29.99

PLANE BEARING, CONNECTING ROD

3LD-11656-20-00

$27.99

PLANE BEARING, CONNECTING ROD

3LD-11656-30-00

Unavailable

KEY, WOODRUFF

90280-05001-00

Unavailable
