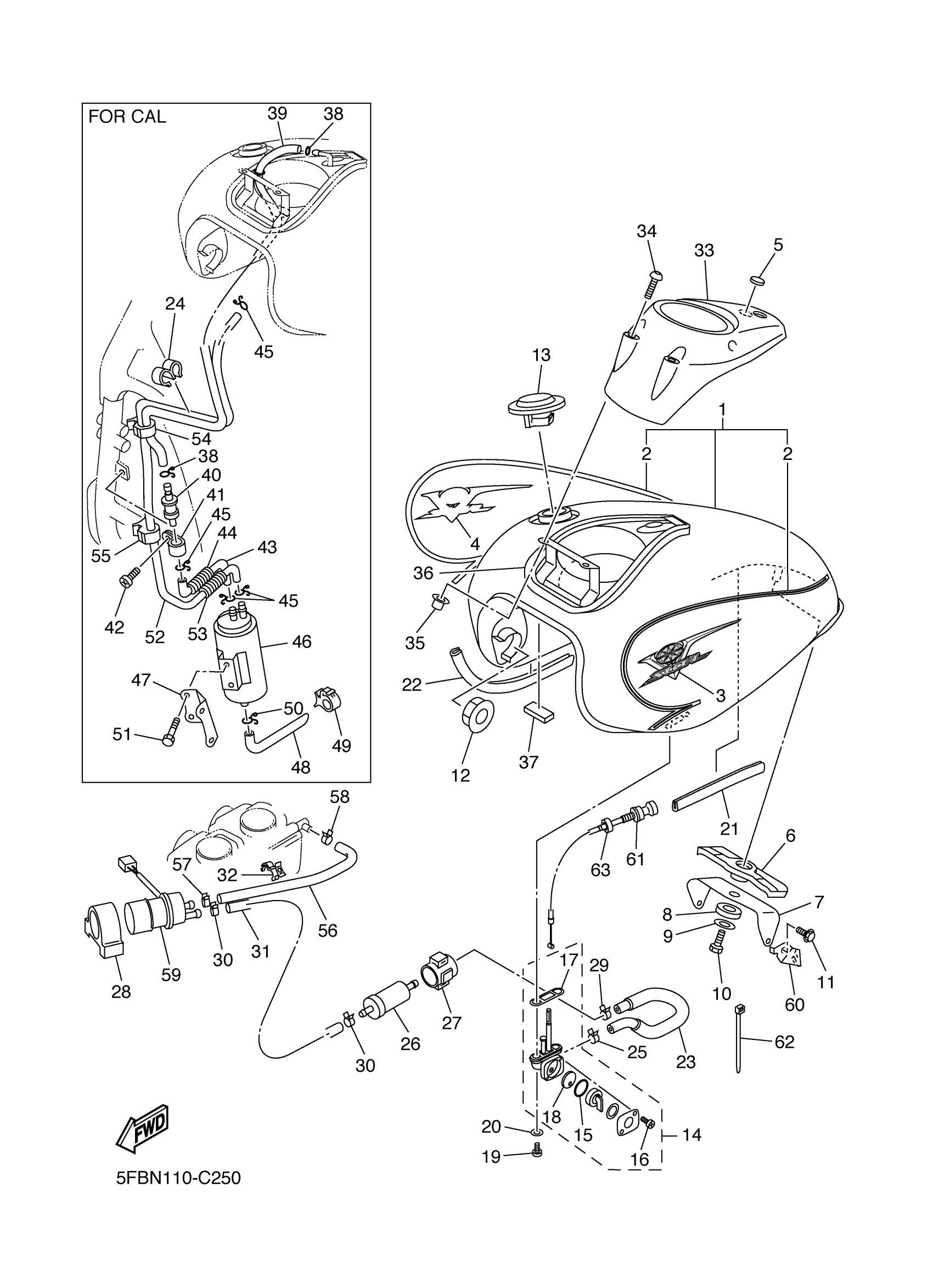

Yamaha XVS65SC (V STAR CUSTOM CA) 5FBP 2004 FUEL TANK Diagram
#
1
FUEL TANK COMP. (BLUISH WHITE COCKTAIL 1)
4TR-Y2410-U1-X4
Unavailable
1
FUEL TANK COMP. (BLACK METALLIC X)
4TR-Y2410-U1-X7
Unavailable
1
FUEL TANK COMP. (BLUISH WHITE COCKTAIL 1)
5SC-Y2410-10-02
Unavailable
1
FUEL TANK COMP. (BLACK METALLIC X)
5SC-Y2410-10-06
Unavailable
2
. GRAPHIC SET (BLACK METALLIC X)
5FB-24240-50-00
Unavailable
2
GRAPHIC SET
5FB-24240-60-00
Unavailable
3
EMBLEM
5FB-2416B-01-00
Unavailable
5
EMBLEM
4TR-2413B-00-00
Unavailable
6
DAMPER, LOCATING 2
4TR-24182-00-00
Unavailable
7
BRACKET, TANK FITTING
4TR-2413Y-00-00
Unavailable
9
WASHER
90209-06011-00
Unavailable
12
DAMPER, LOCATING
4H7-24181-00-00
Unavailable
13
CAP ASSY
4NK-24602-20-00
Unavailable
13
CAP ASSY
5BN-24602-10-00
Unavailable
14
FUEL COCK ASSY 1
21V-24500-20-00
Unavailable
15
SEAL, COCK
3AJ-24534-01-00
Unavailable
16
SCREW, PAN HEAD (J10)
98580-03008-00
Unavailable
17
O-RING
4X8-24512-00-00
Unavailable
18
VALVE PACKING
3AC-24523-00-00
Unavailable
19
SCREW 256241430000
90149-06011-00
Unavailable
20
WASHER, PLATE(3MB)
90202-05187-00
Unavailable
21
MOLE, SIDE COVER 1
1FK-2171L-00-00
Unavailable
22
MOLD, FUEL TANK
1HX-24188-01-00
Unavailable
23
PIPE 3
4TR-24313-00-00
Unavailable
24
CLAMP(6M7)
90464-09M31-00
Unavailable
25
CLIP
90467-10038-00
Unavailable
26
FILTER ASSY
1FK-24560-10-00
Unavailable
27
BRACKET, FILTER
1FK-24566-00-00
Unavailable
28
BAND 1
4EB-24398-00-00
Unavailable
29
CLIP (7K7)
90467-11044-00
Unavailable
30
CLIP (7K7)
90467-11044-00
Unavailable
31
PIPE, FUEL
4TR-24311-00-00
Unavailable
32
CLAMP(4HM)
90464-15192-00
Unavailable
33
COVER, TOP
4TR-2171A-00-00
Unavailable
34
SCREW(3YF)
90149-05299-00
Unavailable
35
NUT(1KT)
90179-05523-00
Unavailable
36
SEAL
4TR-2414G-00-00
Unavailable
37
DAMPER, SIDE COVER
3XV-21717-00-00
Unavailable
38
CLIP
90467-100A1-00
Unavailable
39
PIPE 2
5BN-24312-10-00
Unavailable
40
ROLL OVER VALVE ASSY
5PX-24180-00-00
Unavailable
41
CLAMP
90464-15014-00
Unavailable
42
SCREW, BINDING
98907-05010-00
Unavailable
43
PIPE 4
5BN-24314-10-00
Unavailable
44
PROTECTOR, PIPE
5BN-24327-00-00
Unavailable
45
CLIP
90467-100A1-00
Unavailable
46
CANISTER ASSY
2JU-24170-00-00
Unavailable
47
BRACKET, CANISTOR
5BN-2419F-00-00
Unavailable
48
PIPE 5
5BN-24315-10-00
Unavailable
49
CLAMP(4HM)
90464-15192-00
Unavailable
50
CLIP
90467-100A1-00
Unavailable
51
BOLT, FLANGE
95817-06010-00
Unavailable
52
PIPE 3
5BN-24313-00-00
Unavailable
53
PROTECTOR, PIPE
5BN-24327-00-00
Unavailable
54
CLAMP(4GY)
90464-20191-00
Unavailable
55
CLAMP(4HM)
90464-15192-00
Unavailable
56
HOSE
4TR-14294-00-00
Unavailable
57
CLIP (7K7)
90467-11044-00
Unavailable
58
CLIP(3GM)
90467-12124-00
Unavailable
59
FUEL PUMP COMP.
5KS-13907-01-00
Unavailable
60
HOLDER, WIRE
4TR-2637G-00-00
Unavailable
61
CABLE, STARTER 1
4TR-26331-00-00
Unavailable
62
BAND
1UA-82591-00-00
Unavailable
63
NUT
1VJ-26333-00-00
Unavailable
