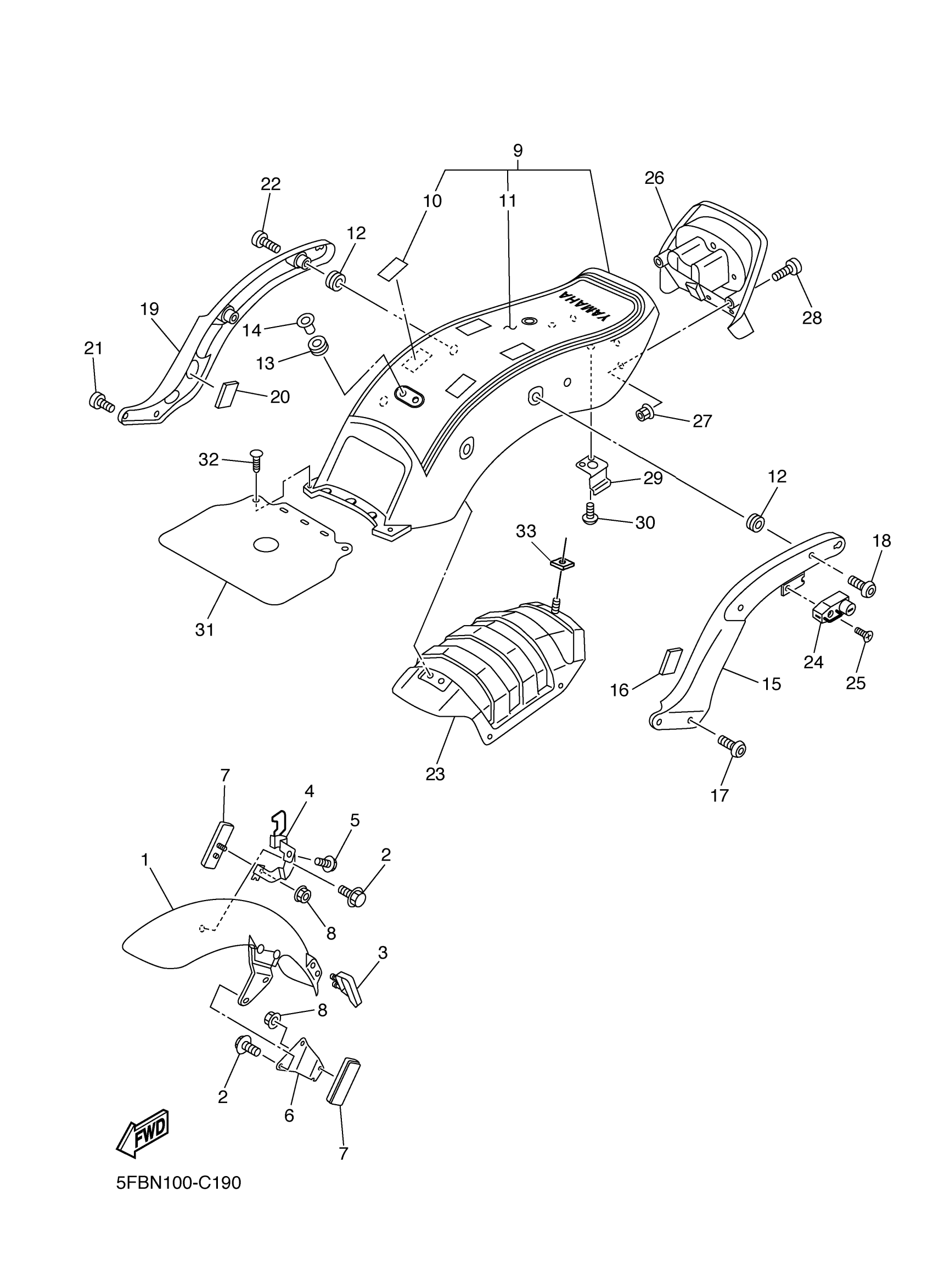

Yamaha XVS65SC (V STAR CUSTOM CA) 5FBP 2004 FENDER Diagram
#
1
FRONT FENDER COMP. (BLUISH WHITE COCKTAIL 1)
4TR-21510-02-P7
Unavailable
1
FRONT FENDER COMP.
4TR-21510-02-PD
Unavailable
4
HOLDER, WIRE 2
5FB-21598-01-00
Unavailable
6
BRACKET, REFLECTOR 1
5FB-85112-00-00
Unavailable
9
REAR FENDER COMP. (BLUISH WHITE COCKTAIL 1)
4TR-W2161-0E-P7
Unavailable
9
REAR FENDER COMP. (BLACK METALLIC X)
4TR-W2161-0F-PF
Unavailable
11
. GRAPHIC, REAR FENDER (BLACK METALLIC X)
5FB-21675-20-00
Unavailable
11
. GRAPHIC, REAR FENDER (BLUISH WHITE COCKTAIL 1)
5FB-21675-30-00
Unavailable
13
GROMMET
90480-13014-00
Unavailable
14
COLLAR(1LJ)
90387-067N5-00
Unavailable
15
STAY, FENDER 1
4TR-21613-01-00
Unavailable
16
DAMPER
3SX-2139X-00-00
Unavailable
17
SCREW, PAN HEAD (22U)
90157-10043-00
Unavailable
18
BOLT, BUTTON HEAD(4TR)
92014-08040-00
Unavailable
19
STAY, FENDER 2
4TR-21614-01-00
Unavailable
20
DAMPER
3SX-2139X-00-00
Unavailable
21
SCREW, PAN HEAD (22U)
90157-10043-00
Unavailable
22
BOLT, BUTTON HEAD(4TR)
92014-08040-00
Unavailable
23
STAY, REAR
4TR-21643-01-00
Unavailable
24
HELMET HANGER ASSY
26H-21308-01-00
Unavailable
25
SCREW (4G1)
90149-06154-00
Unavailable
26
FENDER 2
5FB-2162R-00-00
Unavailable
27
NUT(1KT)
90179-05523-00
Unavailable
28
SCREW, BINDING (8R1)
90154-05011-00
Unavailable
29
HOLDER, HARNESS
4TR-21679-00-00
Unavailable
30
SCREW, TRUSS TAP.
97707-50012-00
Unavailable
31
GUARD, MUD
4TR-21629-00-00
Unavailable
32
RIVET(81E)
90269-05055-00
Unavailable
33
DAMPER, SEAT
5FB-24737-00-00
Unavailable
