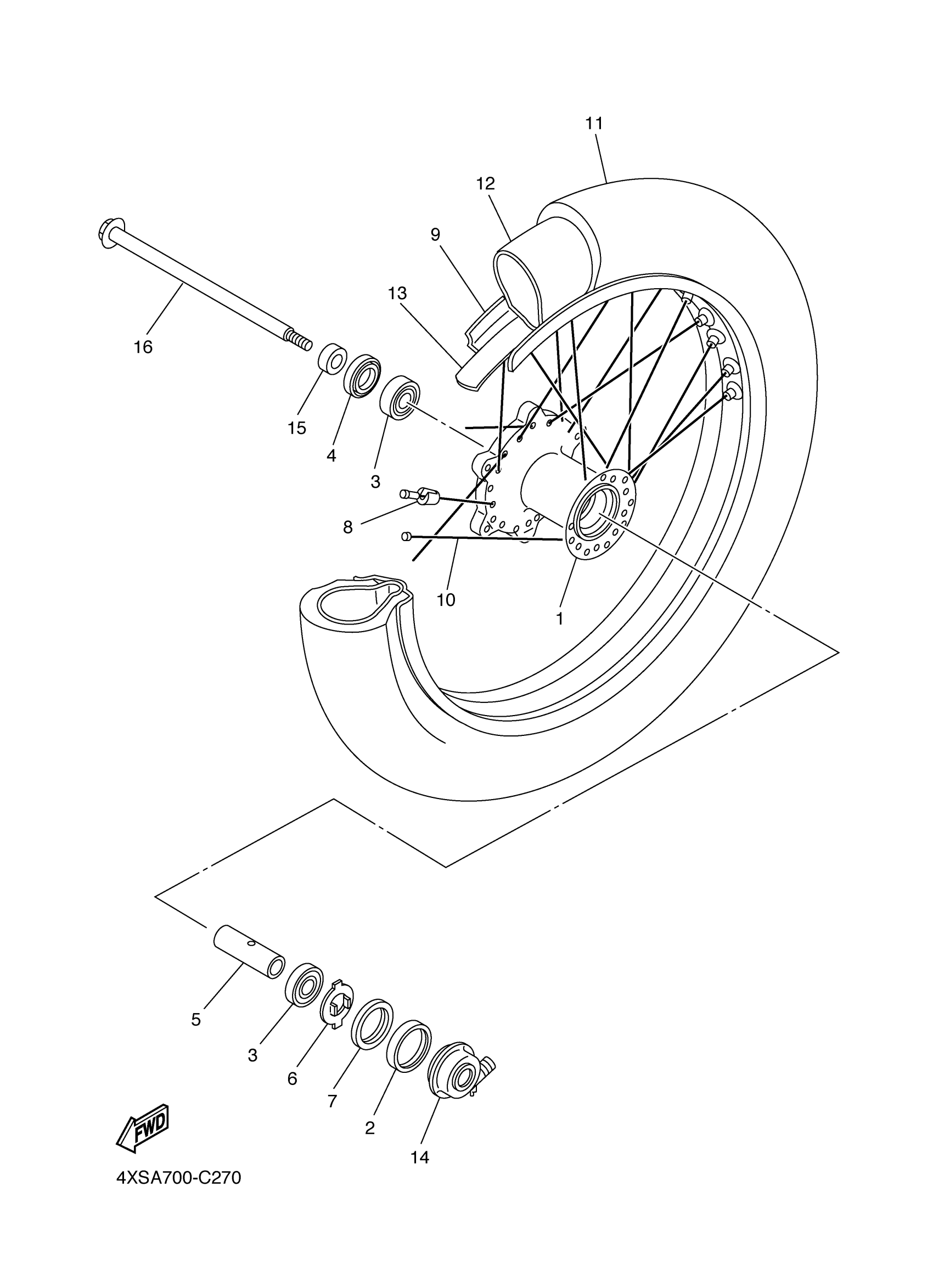

Yamaha XVS65FCB (V STAR 650 CUSTOM CA) 3B7E 2015 FRONT WHEEL Diagram

HUB, FRONT

4TR-25111-10-00

Unavailable

OIL SEAL (45X56X6)

93105-45017-00

$14.99

BEARING(4HM)

93306-30317-00

$39.99

OIL SEAL (28X47X7-102)

93102-28022-00

$14.99

COLLAR(1FN)

90387-173M5-00

Unavailable

CLUTCH, METER (371,447)

341-25149-00-00

$7.99

RETAINER, CLUTCH (371,447)

341-25846-00-00

$8.99

BALANCER, WHEEL

3HT-25398-00-00

$7.99

RIM (2.50-19)

94425-19002-00

$299.99

SPOKE SET, FRONT

4VR-25104-02-00

$251.99

TIRE (100/90-19 M/C 57S L309)

94110-1908T-00

Unavailable

TIRE (100/90-19 M/C 57S F24)

94110-1908V-00

Unavailable

TUBE(42X)

94210-19222-00

$49.99

TUBE(42X)

94210-19224-00

$33.99

BAND, RIM

94327-19111-00

$14.99

BAND, RIM (2.15-19)

94321-19157-00

Unavailable

GEAR UNIT ASSY

4TR-25190-20-00

Unavailable

COLLAR(1UR)

90387-173R6-00

Unavailable

AXLE, WHEEL

5KS-25181-00-00

Unavailable
