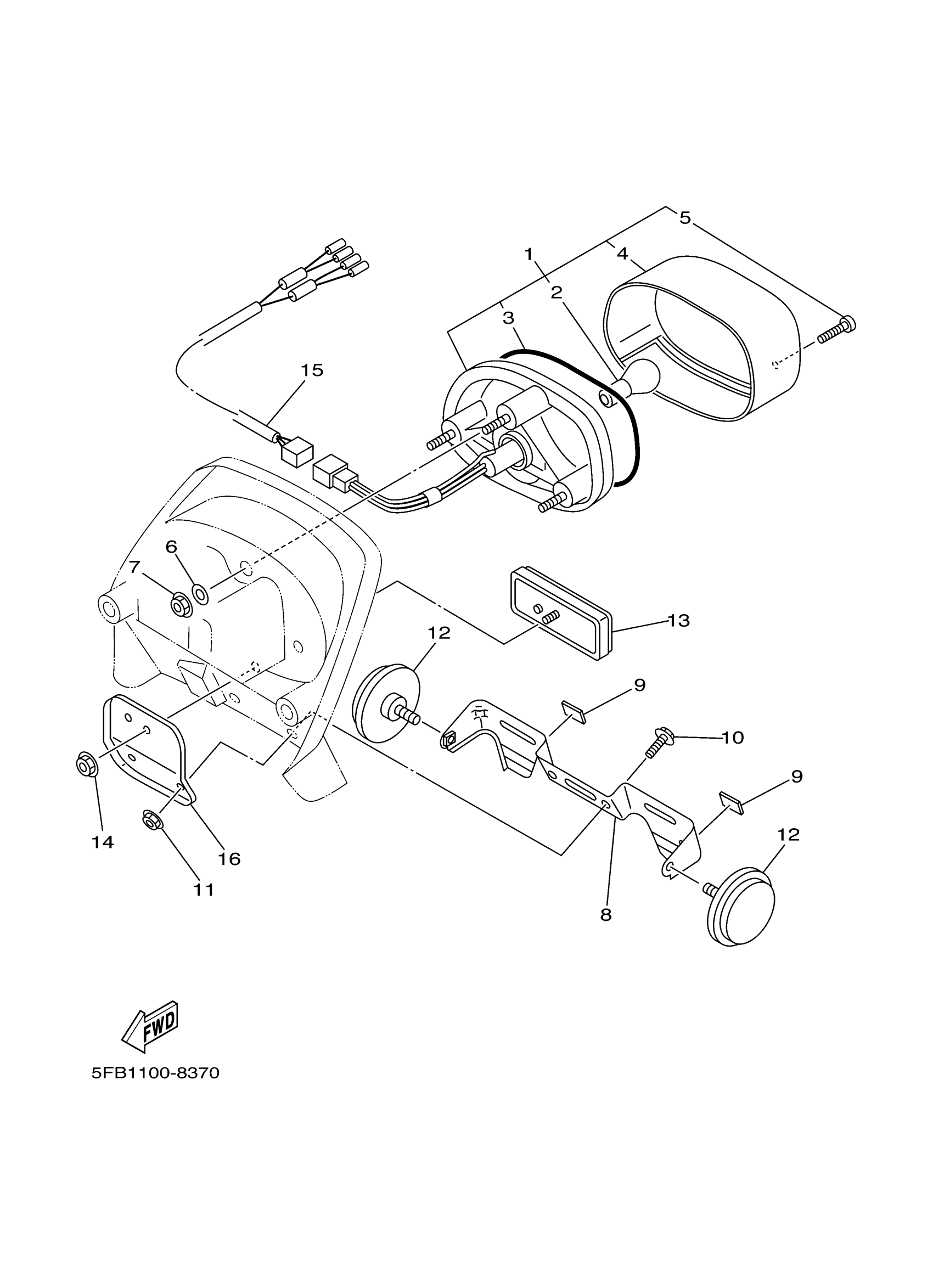

Yamaha XVS65ES (V STAR 650 CUSTOM) 3B6V 2014 TAILLIGHT Diagram

TAILLIGHT ASSY

4TV-84700-00-00

Unavailable

BULB, TAIL LAMP (12V 32/3CP)

256-84714-61-00

$11.99

GASKET, TAIL LENS

4TX-84723-00-00

$4.89

LENS, TAILLIGHT

4TR-84733-00-00

$22.99

SCREW, PAN TAP.2

97707-40520-00

$9.49

WASHER, PLATE

90201-06380-00

$0.60

NUT, SELF-LOCKING

95617-06100-00

$8.49

BRACKET, LICENSE

5FB-84751-00-00

Unavailable

DAMPER 2

51Y-21639-00-00

$6.99

BOLT, FLANGE(4DU)

95027-06014-00

$8.49

NUT, SELF-LOCKING

95617-06100-00

$8.49

REFLECTOR, REAR 1

449-85131-02-00

$30.99

REAR REFLECTOR ASSY

3Y6-85130-02-00

Unavailable

NUT, FLANGE(3GM)

95707-05500-00

$8.49

CORD, TAILLIGHT

5KP-84717-10-00

$34.99

BRACKET, FENDER

5FB-21617-00-00

Unavailable
